DTC B1329 Early Crash Sensor Driver (LH) Communication Error: Notes

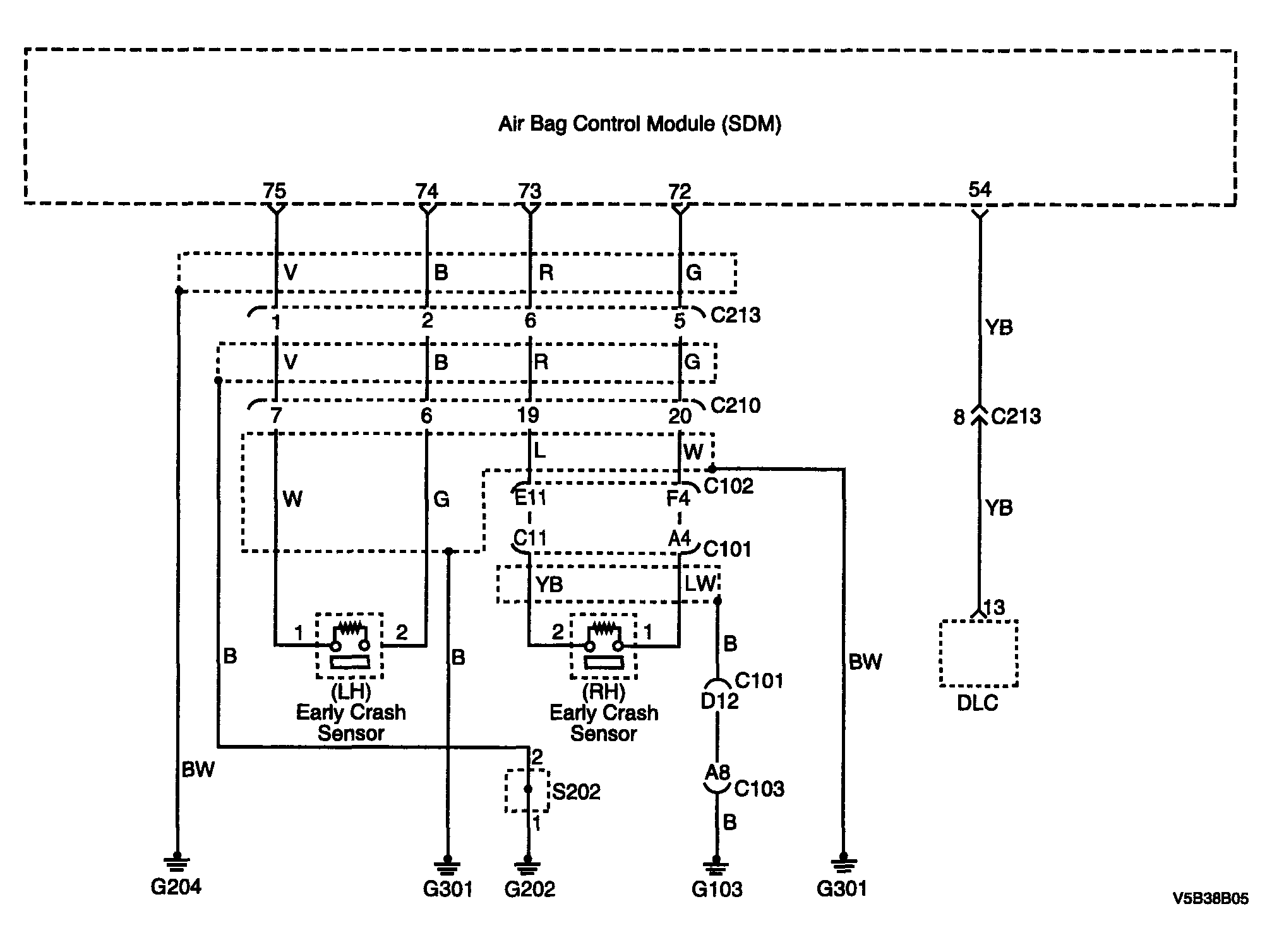

Fig 1: DTC B1329 Circuit Early Crash Sensor Driver (LH) Communication Error
G04096001Courtesy of SUZUKI OF AMERICA CORP.
