Heater Core Installation

Install the heater core into the case.

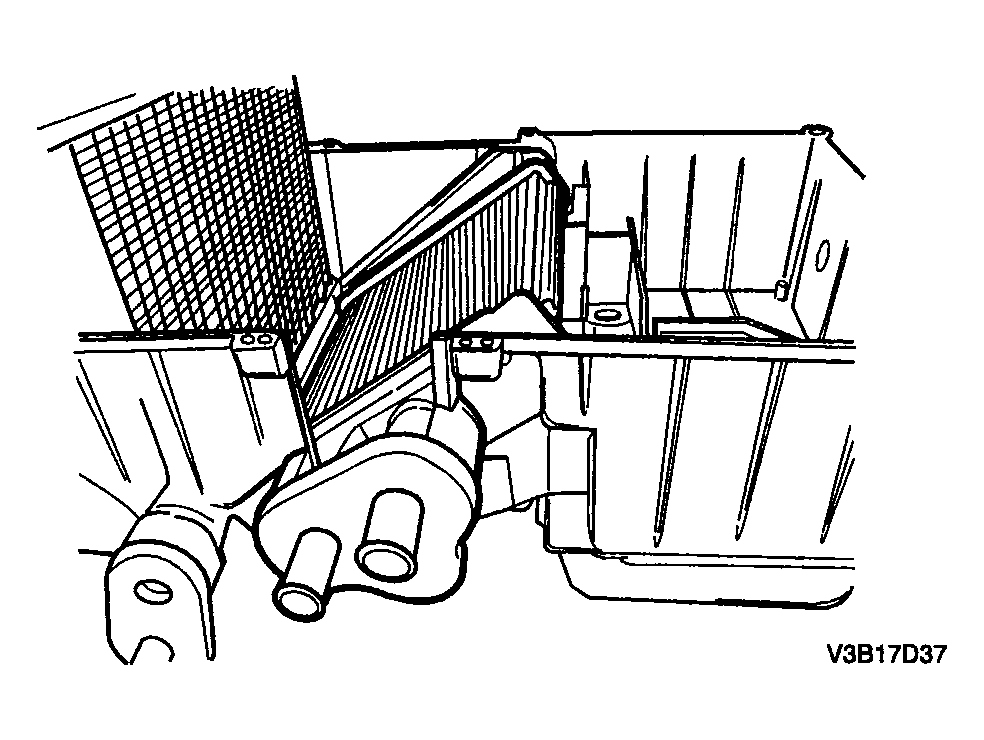

Fig 1: Installing Heater Core Into Case
Courtesy of SUZUKI OF AMERICA CORP.
Install the heater core clip.

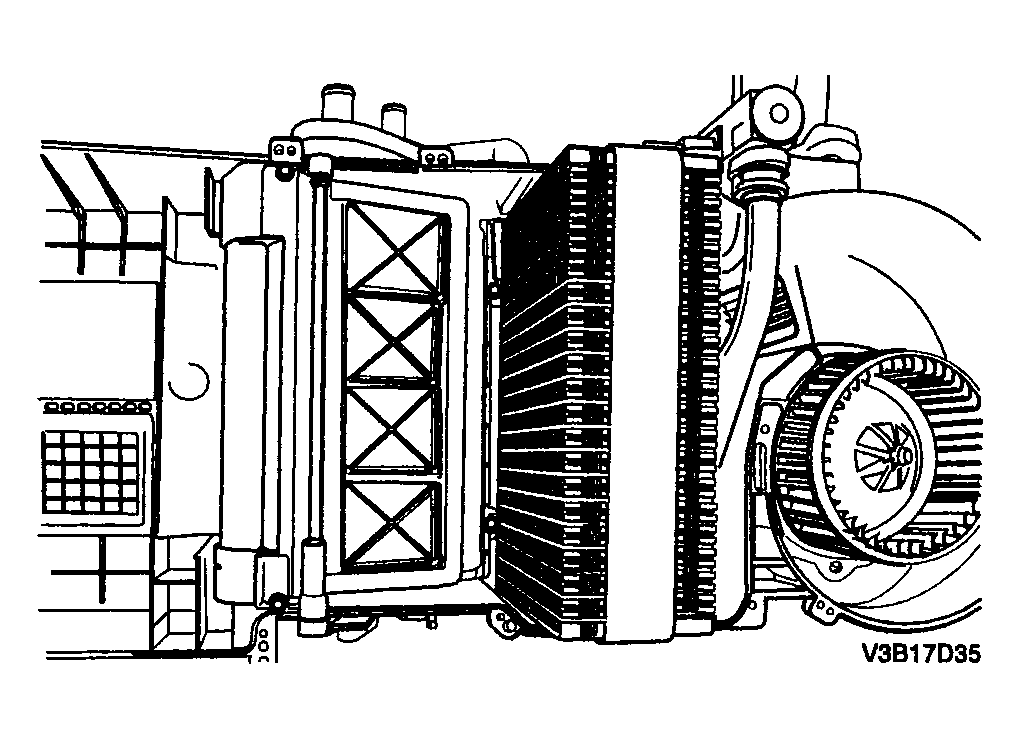

Fig 2: Installing Heater Core Clip
Courtesy of SUZUKI OF AMERICA CORP.
Install the heater core cover.
Install the tighten the screws that secure the heater core cover to the aircon module.

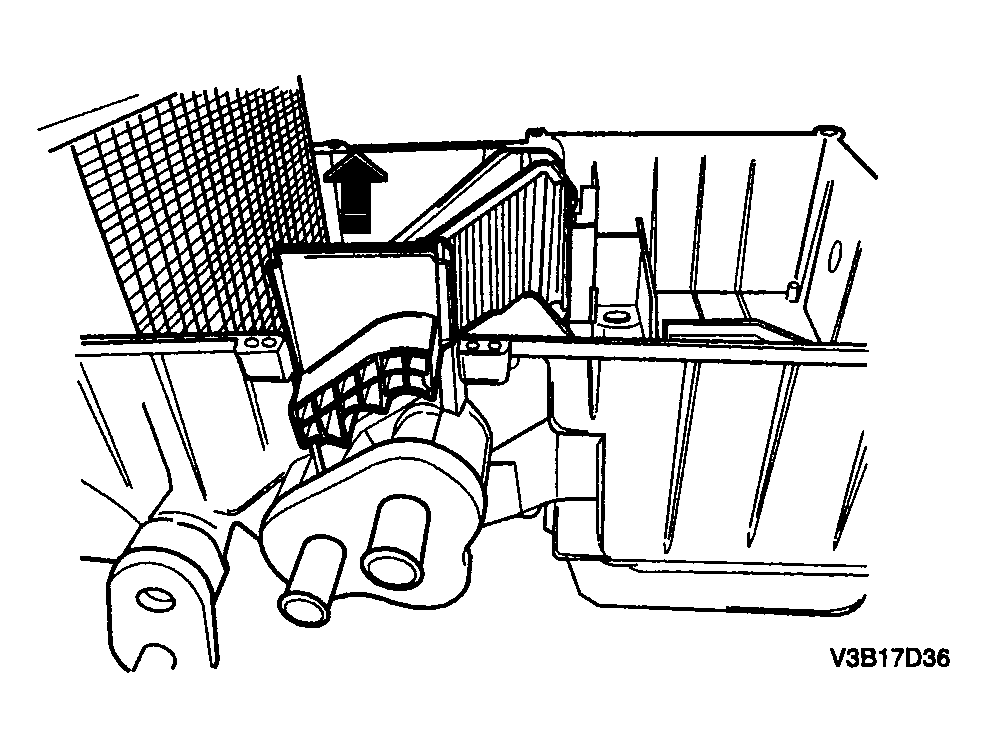

Fig 3: Installing Heater Core Cover
Courtesy of SUZUKI OF AMERICA CORP.
Install the evaporator core case.
Install the tighten the screws that secure the evaporator core case cover to the heater/air distributor case assembly.

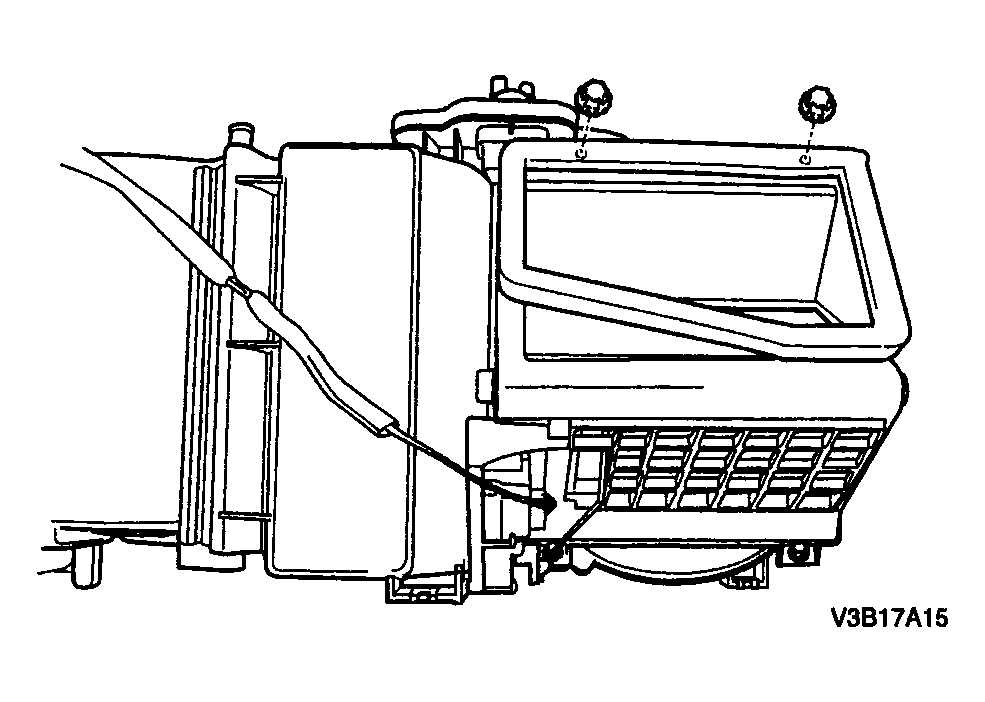

Fig 4: Installing Evaporator Core Case
Courtesy of SUZUKI OF AMERICA CORP.
Install the air inlet case with the screws.

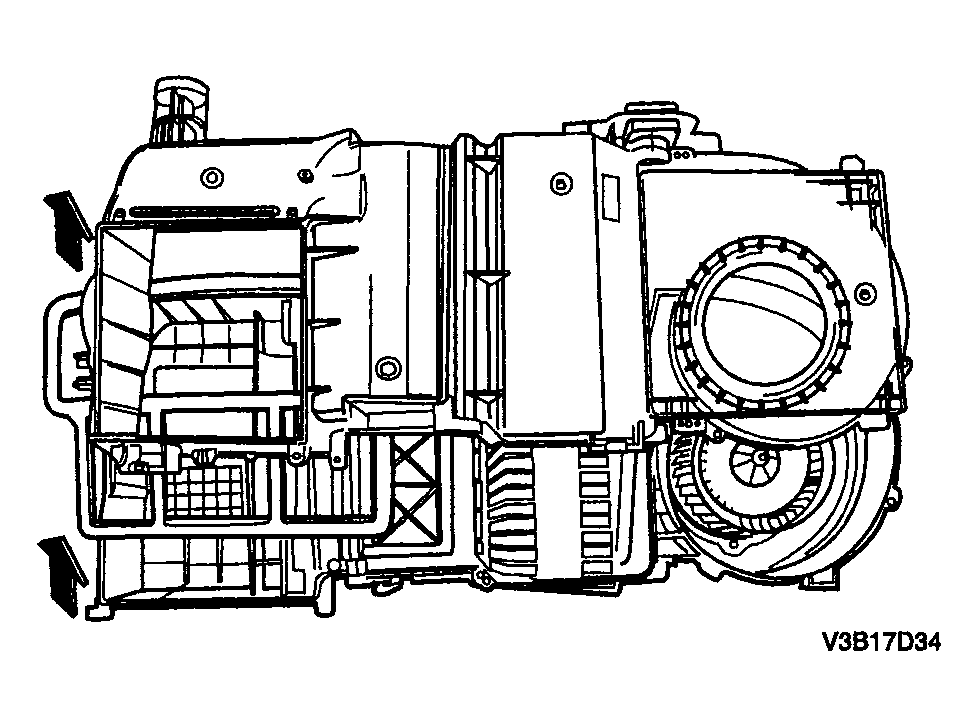

Fig 5: Installing Air Inlet Case With Screws
Courtesy of SUZUKI OF AMERICA CORP.
Install the motor and screws for the floor diverter.
Install the A/C module. Refer to "HEATER / AIR DISTRIBUTOR CASE ASSEMBLY REMOVAL ".

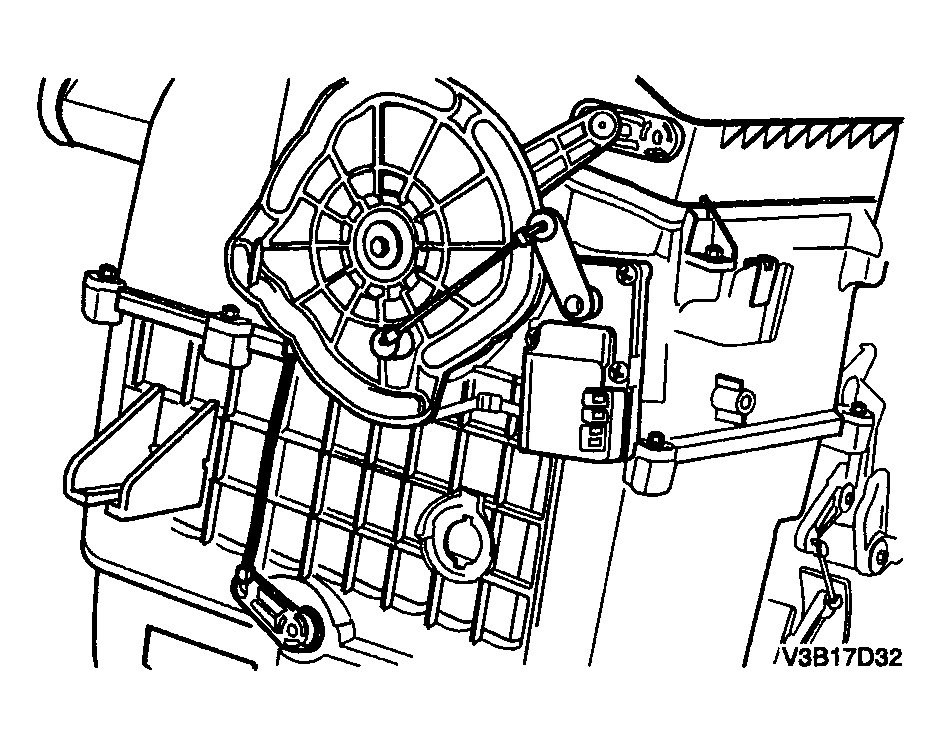

Fig 6: Installing A/C Module
Courtesy of SUZUKI OF AMERICA CORP.
