Control Assembly Knob Lighting Removal

  1. Disconnect the negative battery cable.
  2. Remove the heating and ventilation system control assembly. Refer to "CONTROL ASSEMBLY REMOVAL ".
  3. Disconnect the small connector to the vacuum control switch on the rear of the assembly case.
  4. Separate the control assembly case halves.

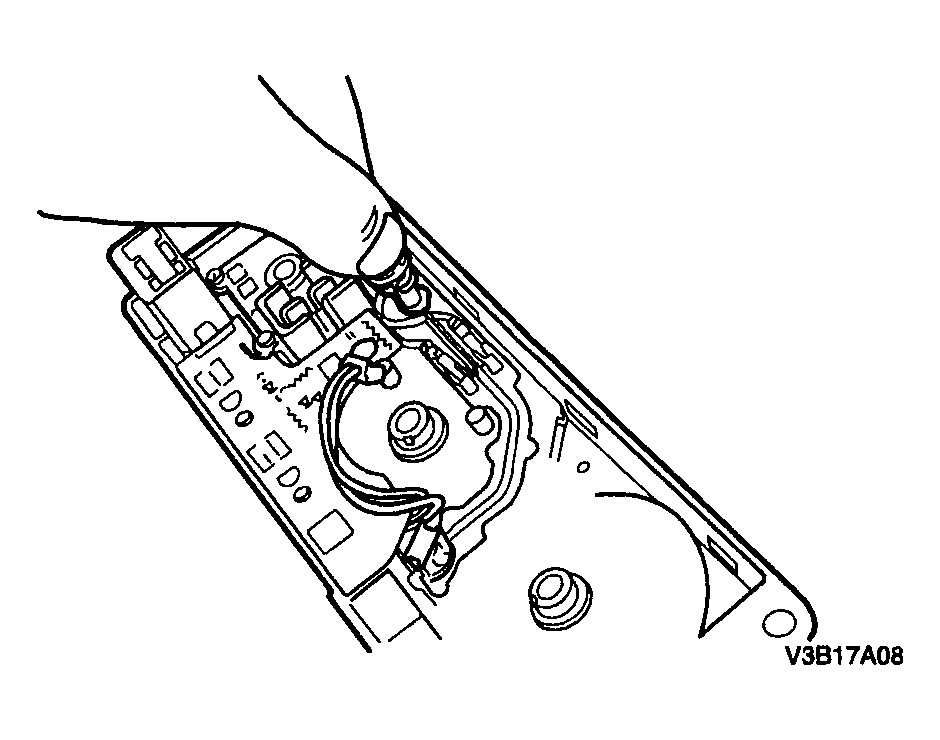

    Fig 1: Removing Control Assembly Knob Bulb
    G04095749Courtesy of SUZUKI OF AMERICA CORP.
  5. Turn the bulb holder to the left and pull out the bulb.
