Engine Coolant Temperature Sensor Removal

  1. Relieve the pressure in the coolant reservoir by turning the coolant reservoir cap slightly counterclockwise.
  2. Disconnect the negative battery cable.

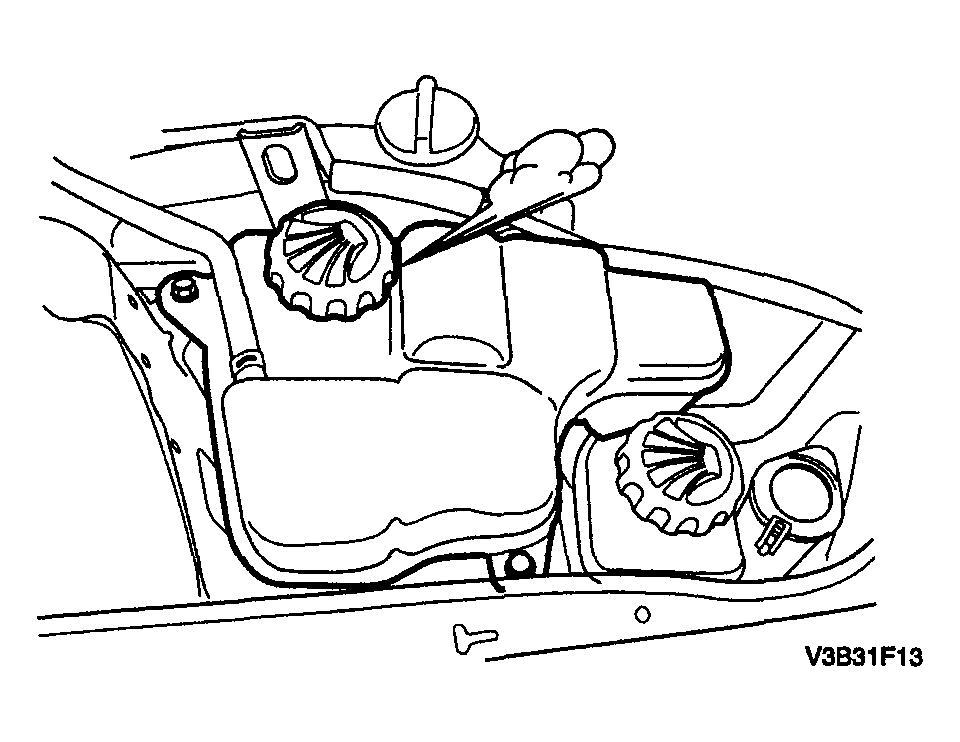

    Fig 1: Relieving Pressure In Coolant Reservoir
    G04094567Courtesy of SUZUKI OF AMERICA CORP.
  3. Remove the VIS vacuum tank. Refer to "VIS VACUUM TANK REMOVAL ".
    Fig 2: Remove VIS Vacuum Tank
    G04094568Courtesy of SUZUKI OF AMERICA CORP.
  4. Disconnect the engine coolant temperature sensor (ECTS) connector.
  5. Remove the ECTS from the cylinder head.

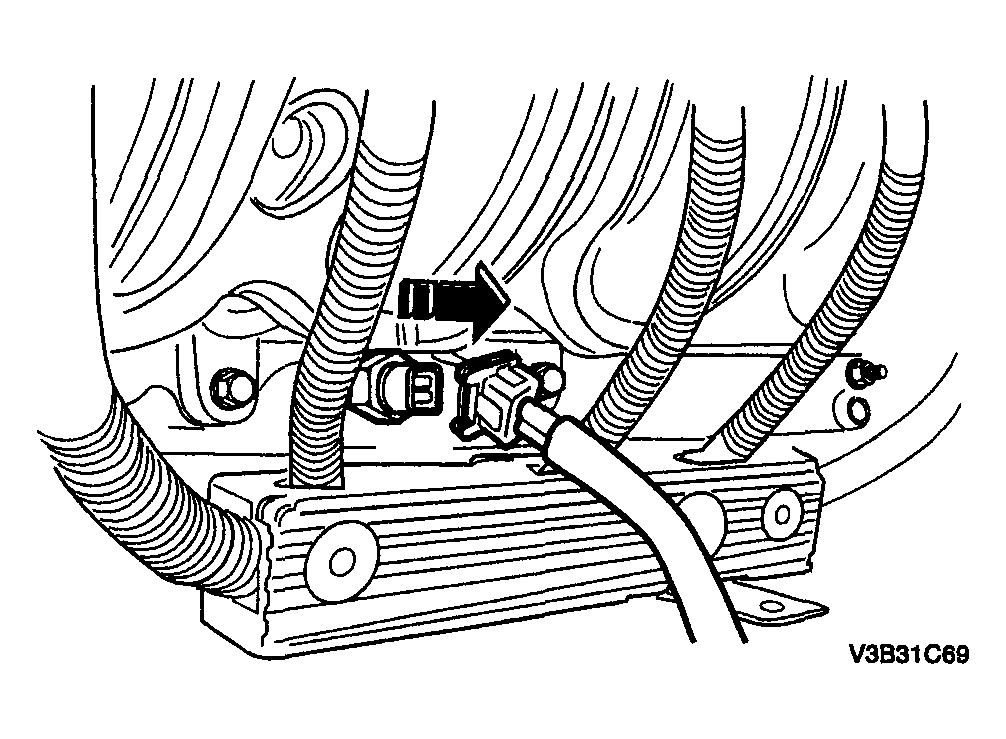

    Fig 3: Disconnecting Engine Coolant Temperature Sensor (ECTS) Connector
    G04094569Courtesy of SUZUKI OF AMERICA CORP.
