Exhaust EGR Pipe Removal

  1. Remove the exhaust EGR pipe flange-to-EGR valve retaining bolts.
  2. Remove the exhaust pipe bracket-to-cylinder head long side retaining bolt.
  3. Remove the exhaust EGR pipe gasket.

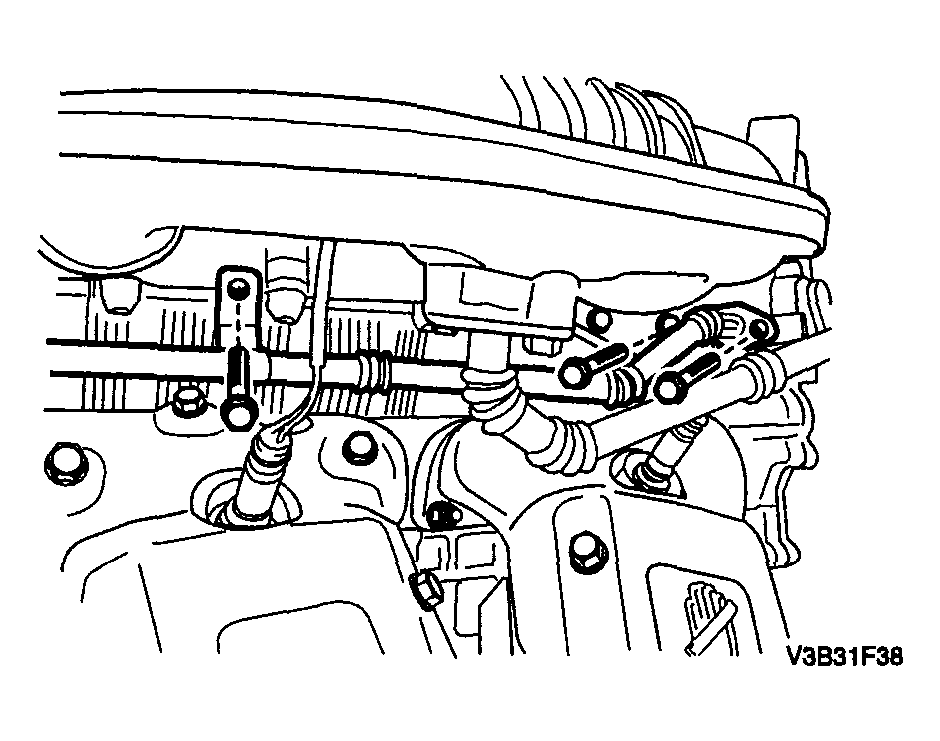

    Fig 1: Removing Exhaust EGR Pipe Gasket
    G04094558Courtesy of SUZUKI OF AMERICA CORP.
  4. Remove the exhaust EGR pipe-to-heater adapter retaining nuts.
  5. Remove the exhaust pipe bracket-to-cylinder head short side retaining bolt.
  6. Remove the exhaust EGR pipe gasket.

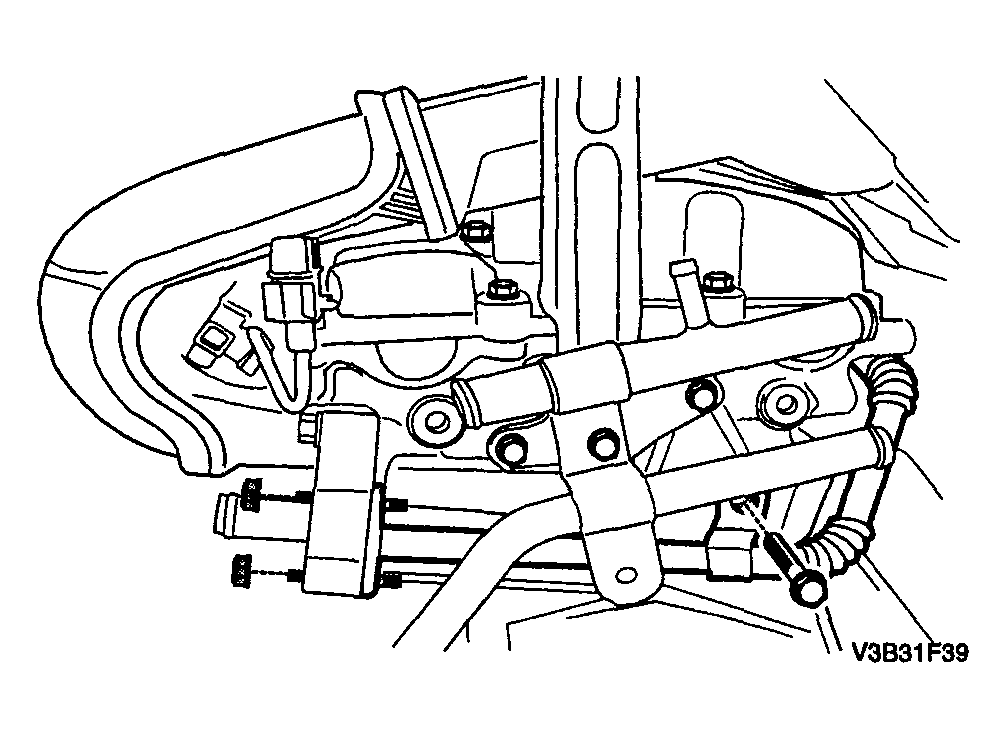

    Fig 2: Removing Exhaust EGR Pipe Gasket
    G04094559Courtesy of SUZUKI OF AMERICA CORP.
