ECM Wiring Diagram

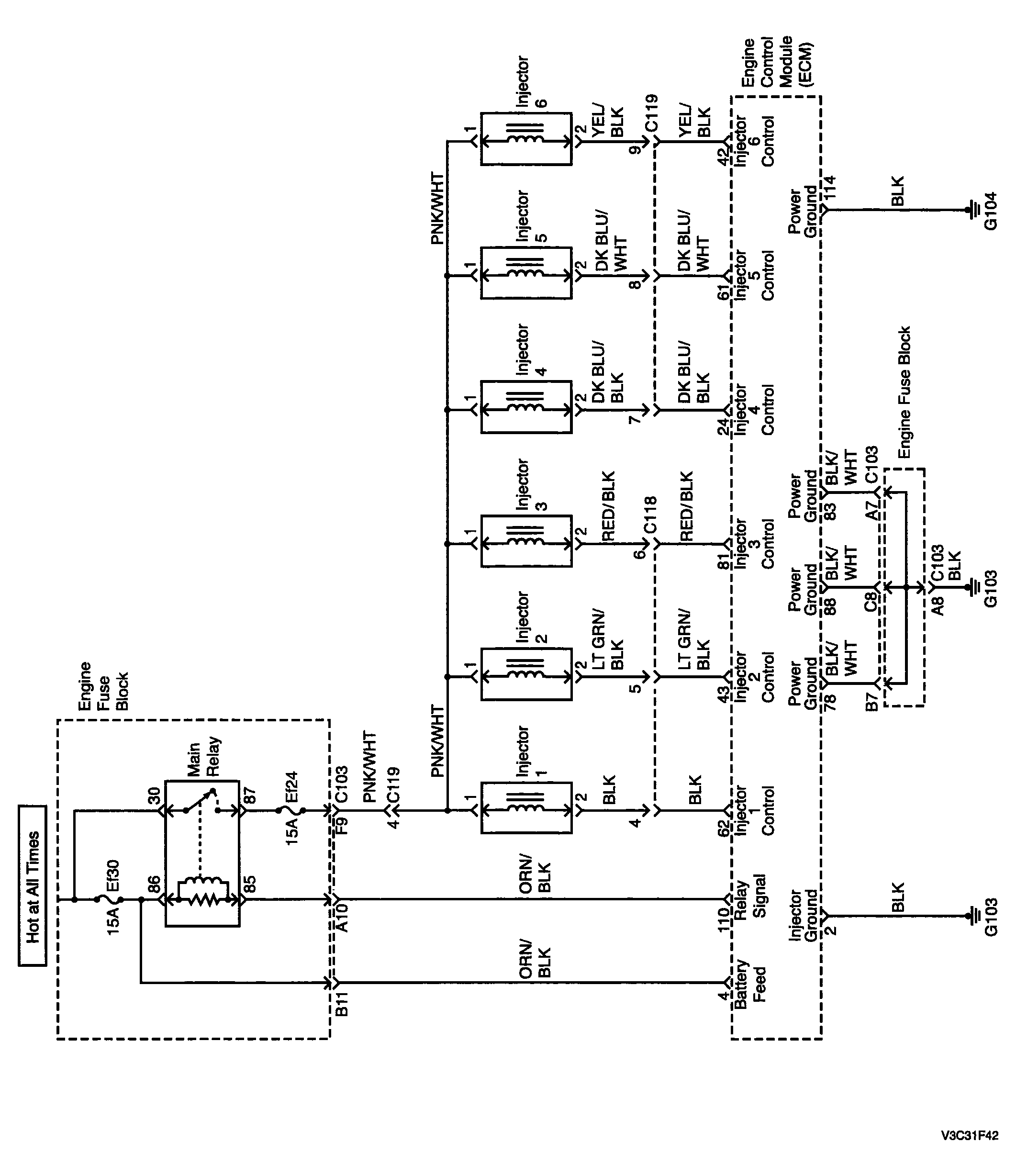

Fig 1: ECM Wiring Diagram (1 Of 7)

G04094381

Courtesy of SUZUKI OF AMERICA CORP.

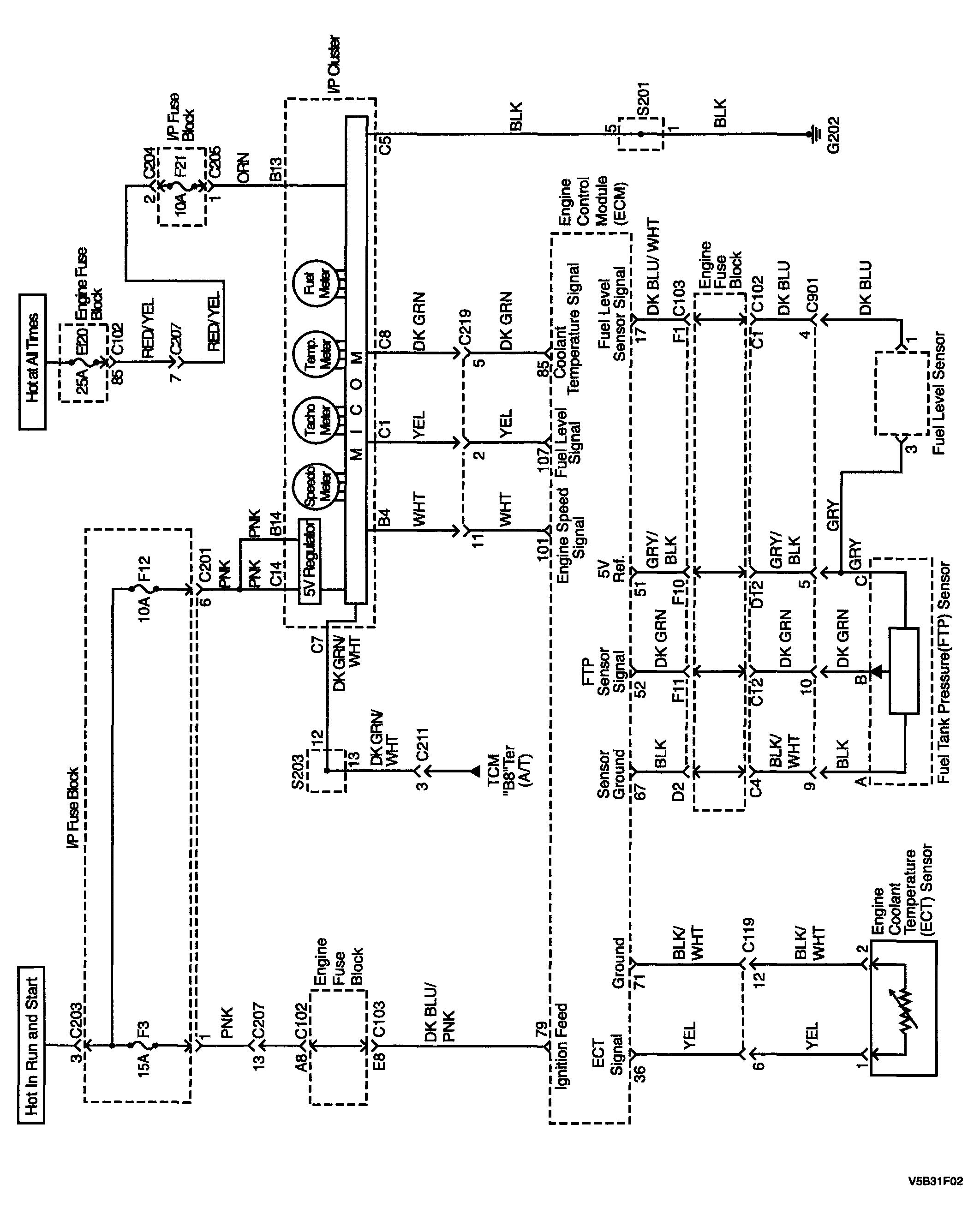

Fig 2: ECM Wiring Diagram (2 Of 7)

G04094382

Courtesy of SUZUKI OF AMERICA CORP.

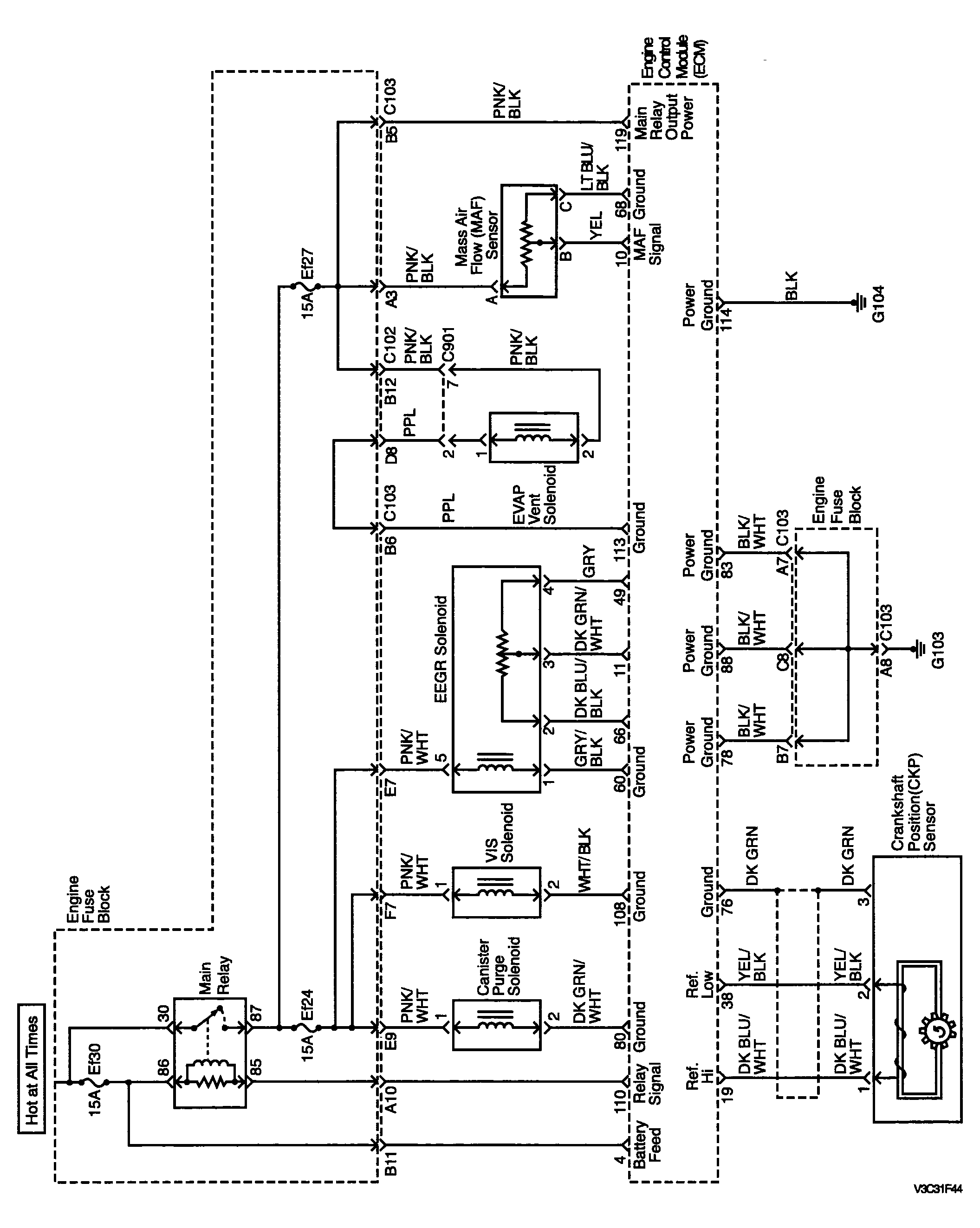

Fig 3: ECM Wiring Diagram (3 Of 7)

G04094383

Courtesy of SUZUKI OF AMERICA CORP.

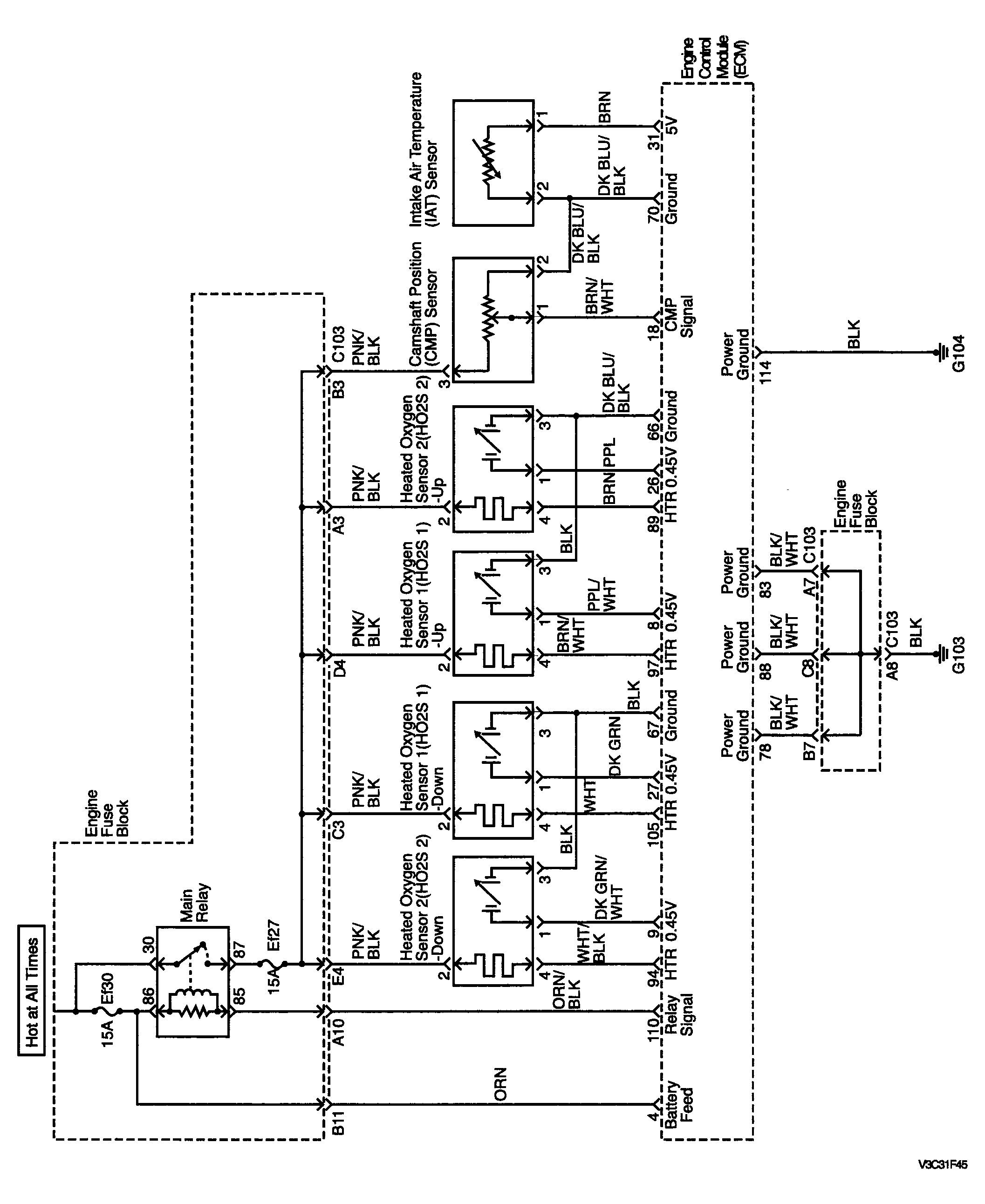

Fig 4: ECM Wiring Diagram (4 Of 7)

G04094384

Courtesy of SUZUKI OF AMERICA CORP.

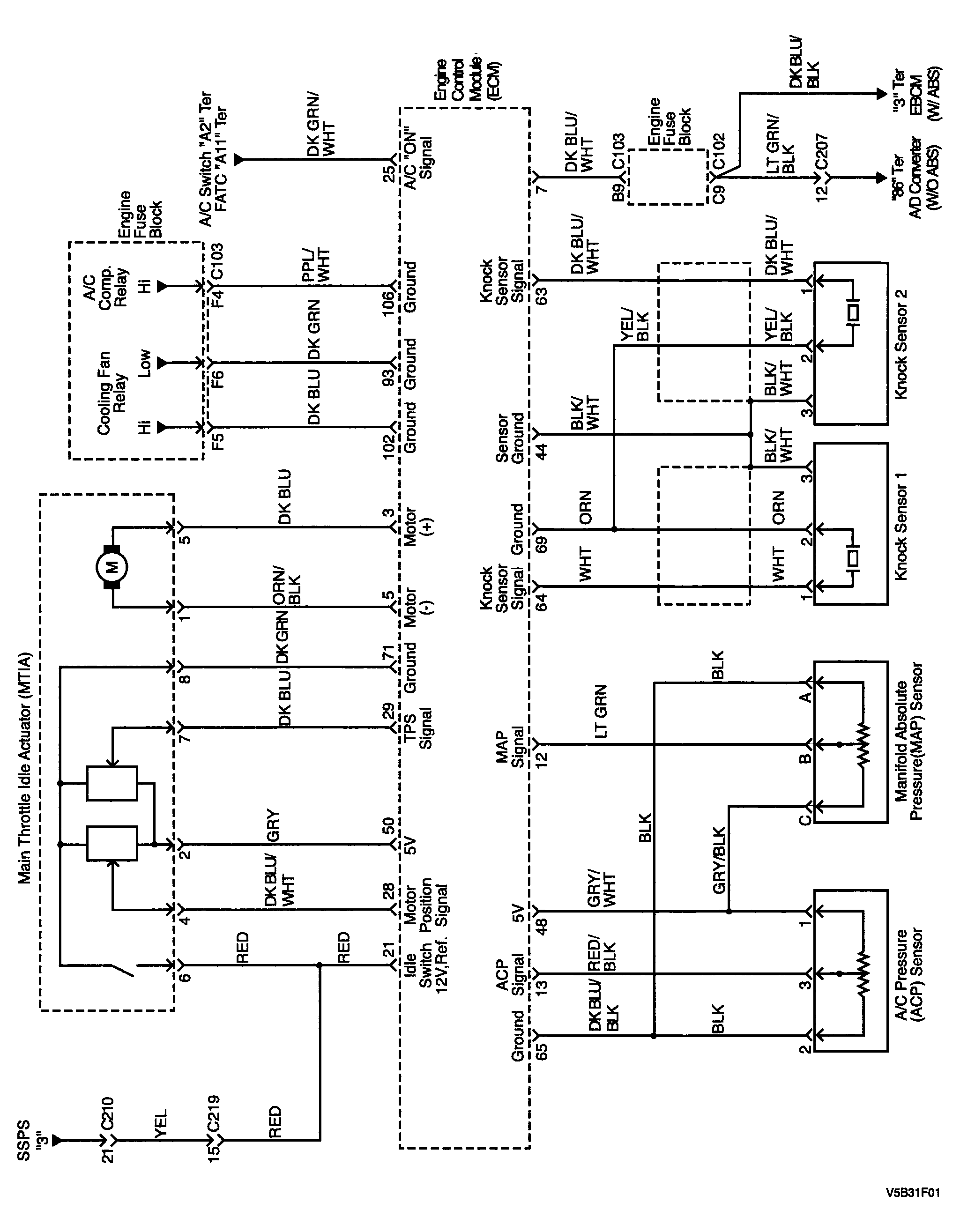

Fig 5: ECM Wiring Diagram (5 Of 7)

G04094385

Courtesy of SUZUKI OF AMERICA CORP.

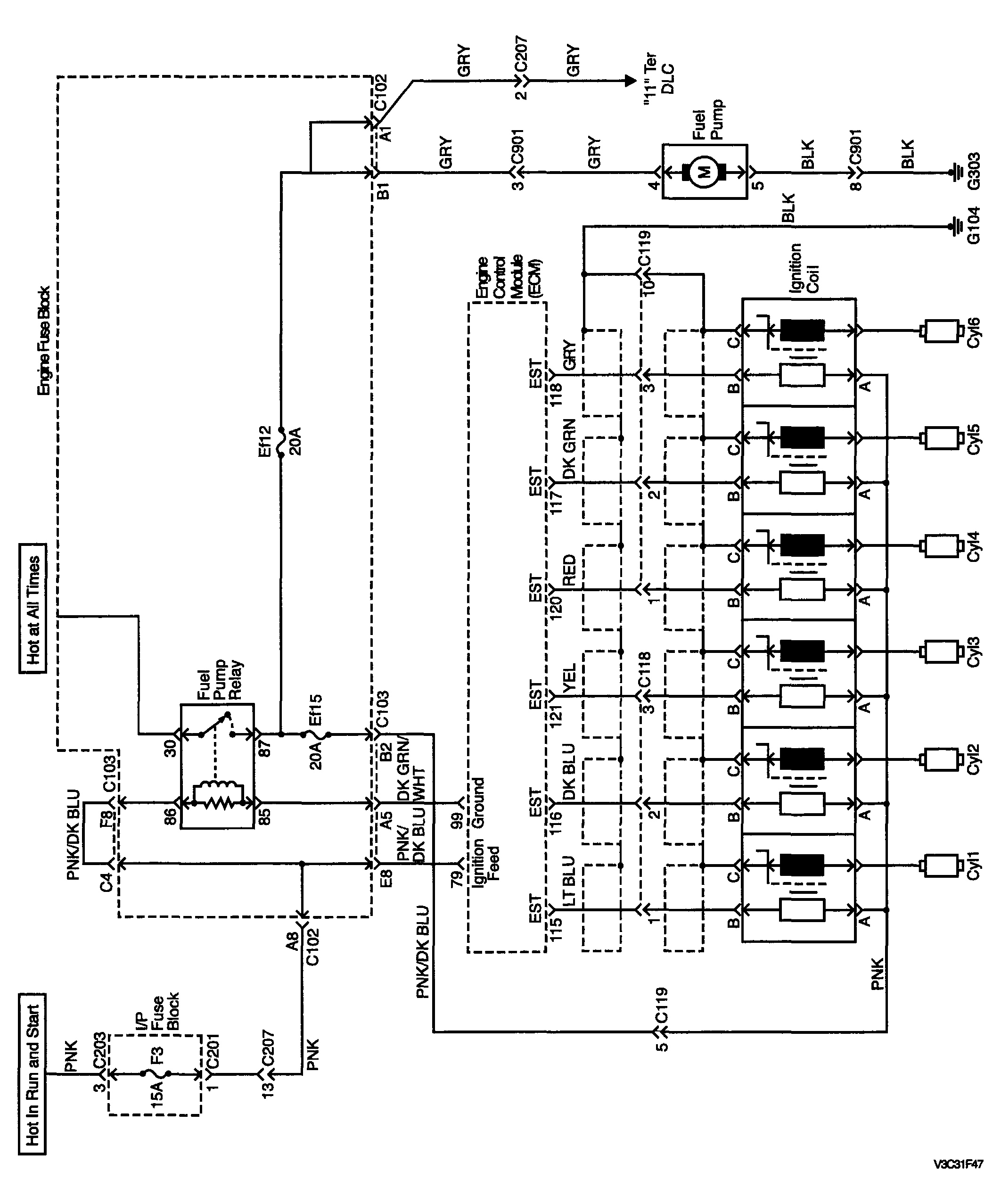

Fig 6: ECM Wiring Diagram (6 Of 7)

G04094386

Courtesy of SUZUKI OF AMERICA CORP.

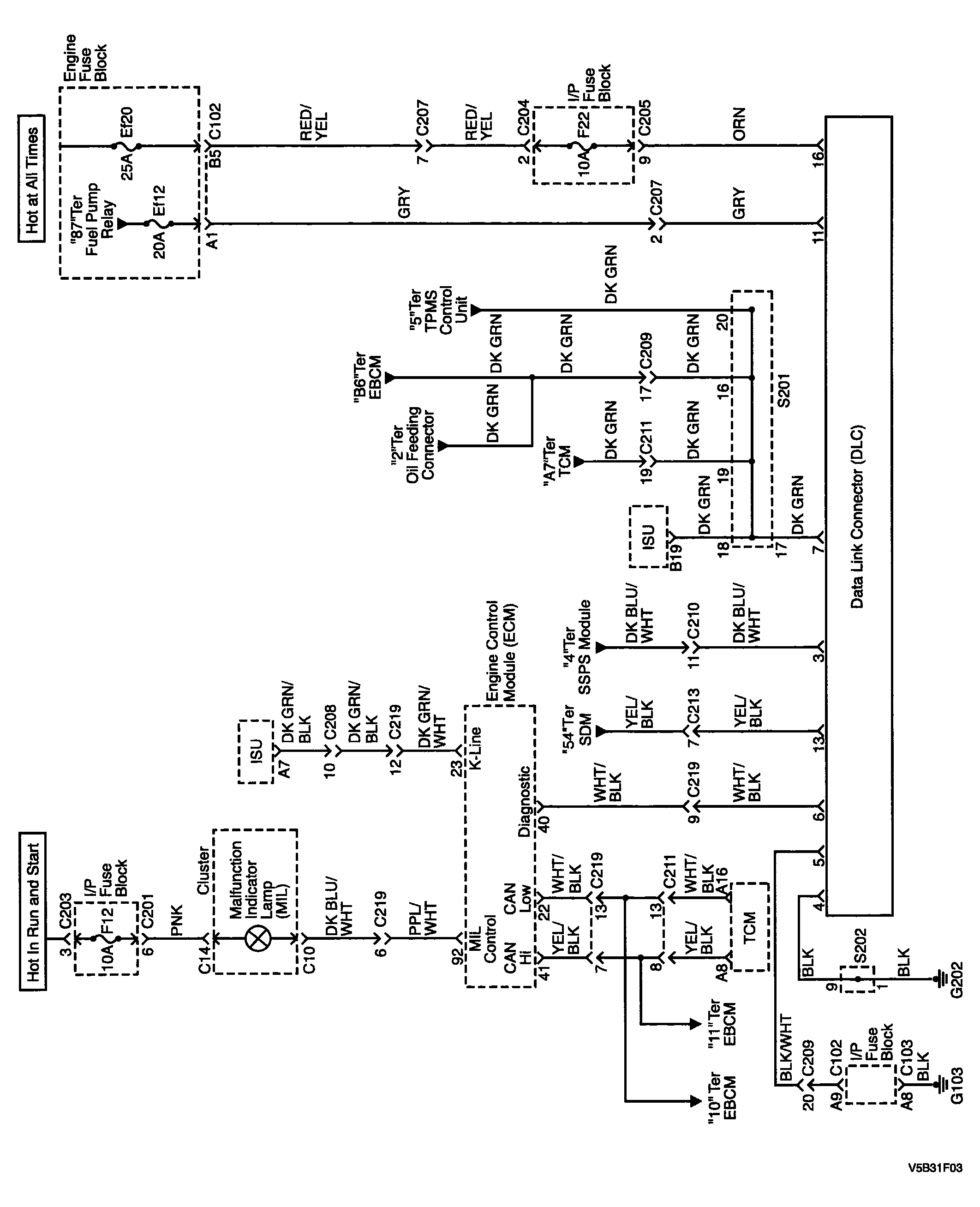

Fig 7: ECM Wiring Diagram (7 Of 7)

G04094387

Courtesy of SUZUKI OF AMERICA CORP.
