No Malfunction Indicator Lamp: Notes

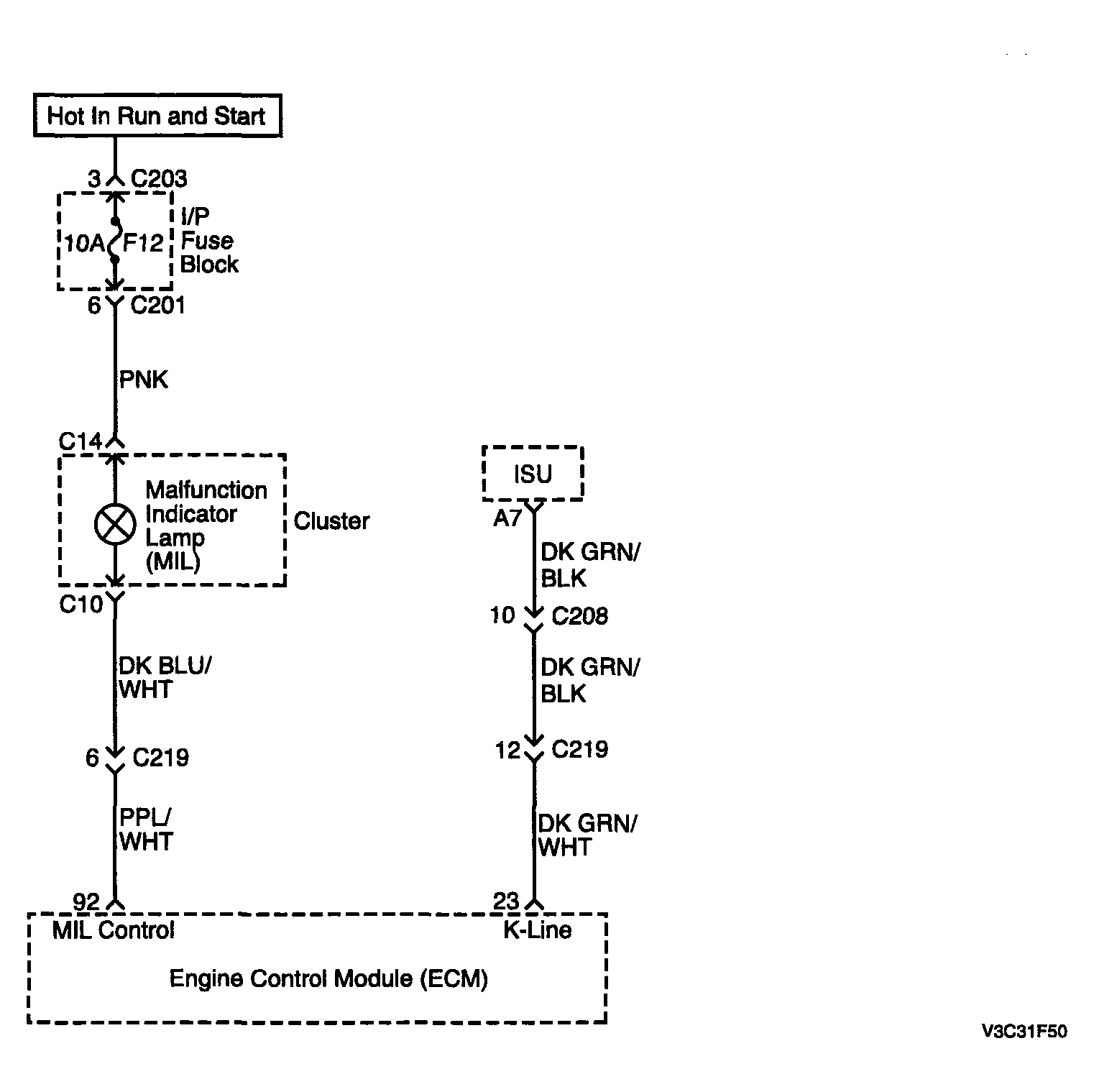

Fig 1: No Malfunction Indicator Lamp - Circuit Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
