Malfunction Indicator Lamp On Steady: Notes

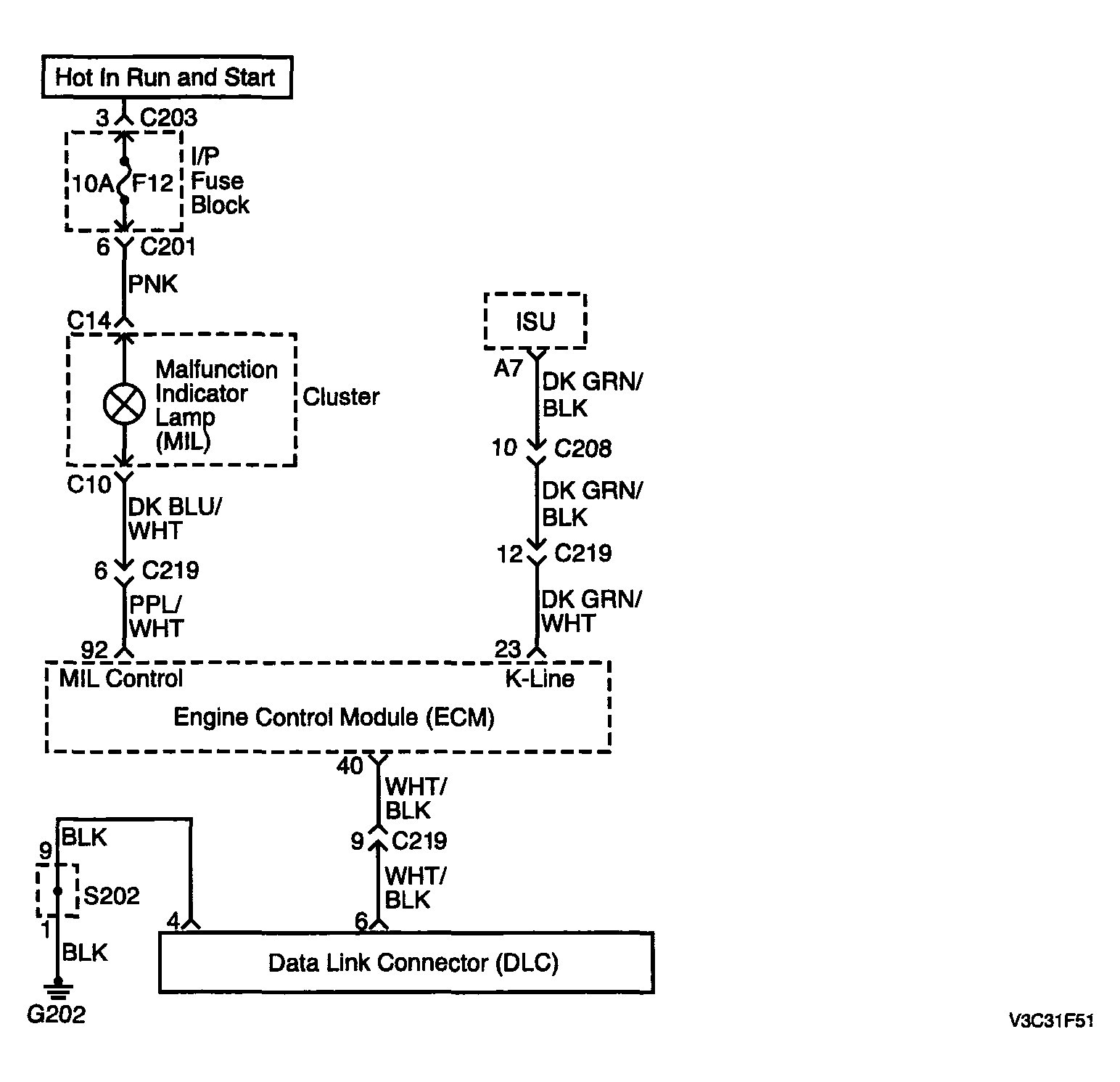

Fig 1: Malfunction Indicator Lamp On Steady - Circuit Diagram
G04094408Courtesy of SUZUKI OF AMERICA CORP.
