DTC U0073 CAN Communication Error (CAN Bus Off): Notes

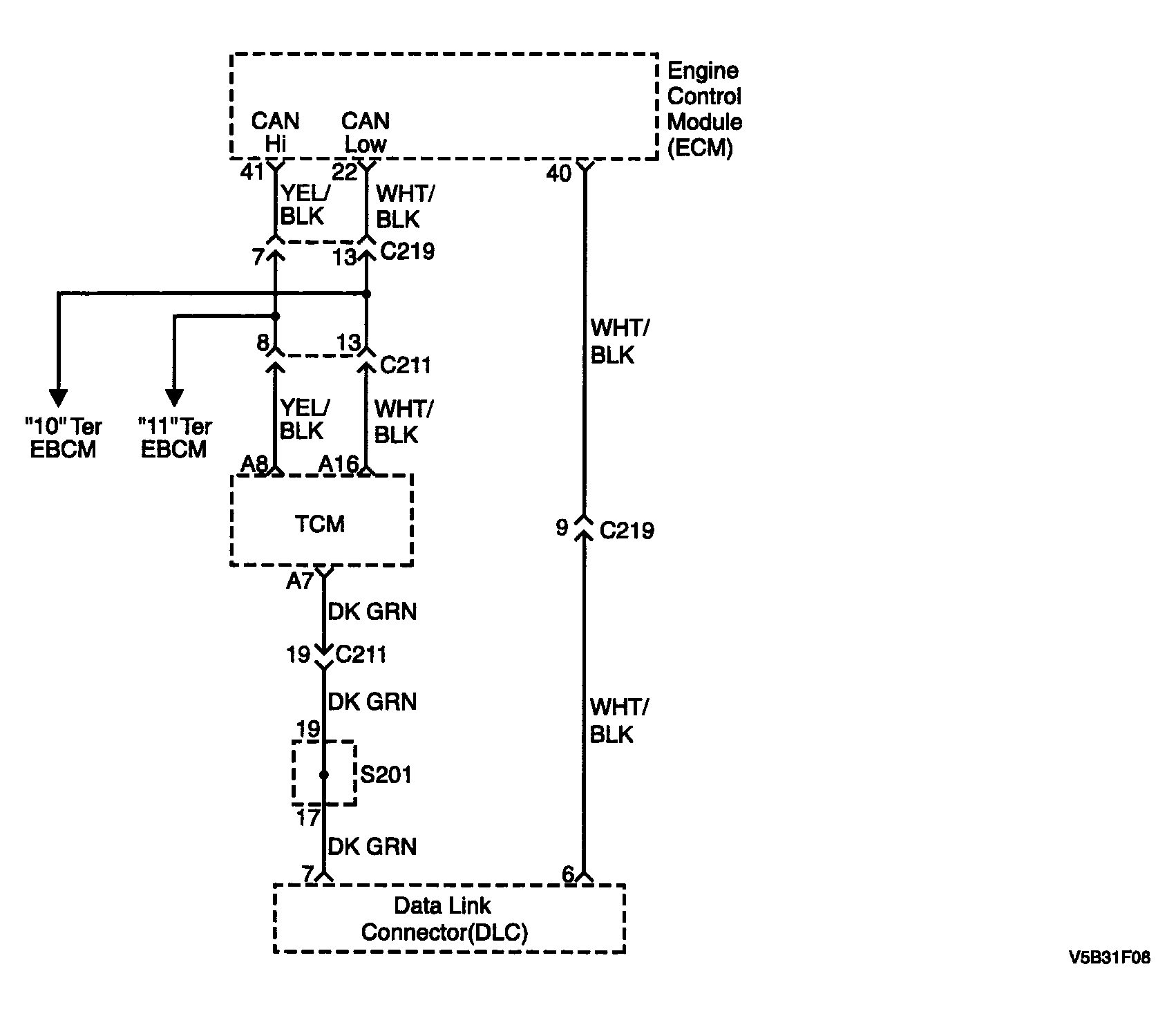

Fig 1: U0073 CAN Communication Error (CAN Bus Off) - Circuit Diagram
G04094532Courtesy of SUZUKI OF AMERICA CORP.
