DTC P2119 Main Throttle Idle Actuator (MTIA) Malfunction (Functional Failure): Notes

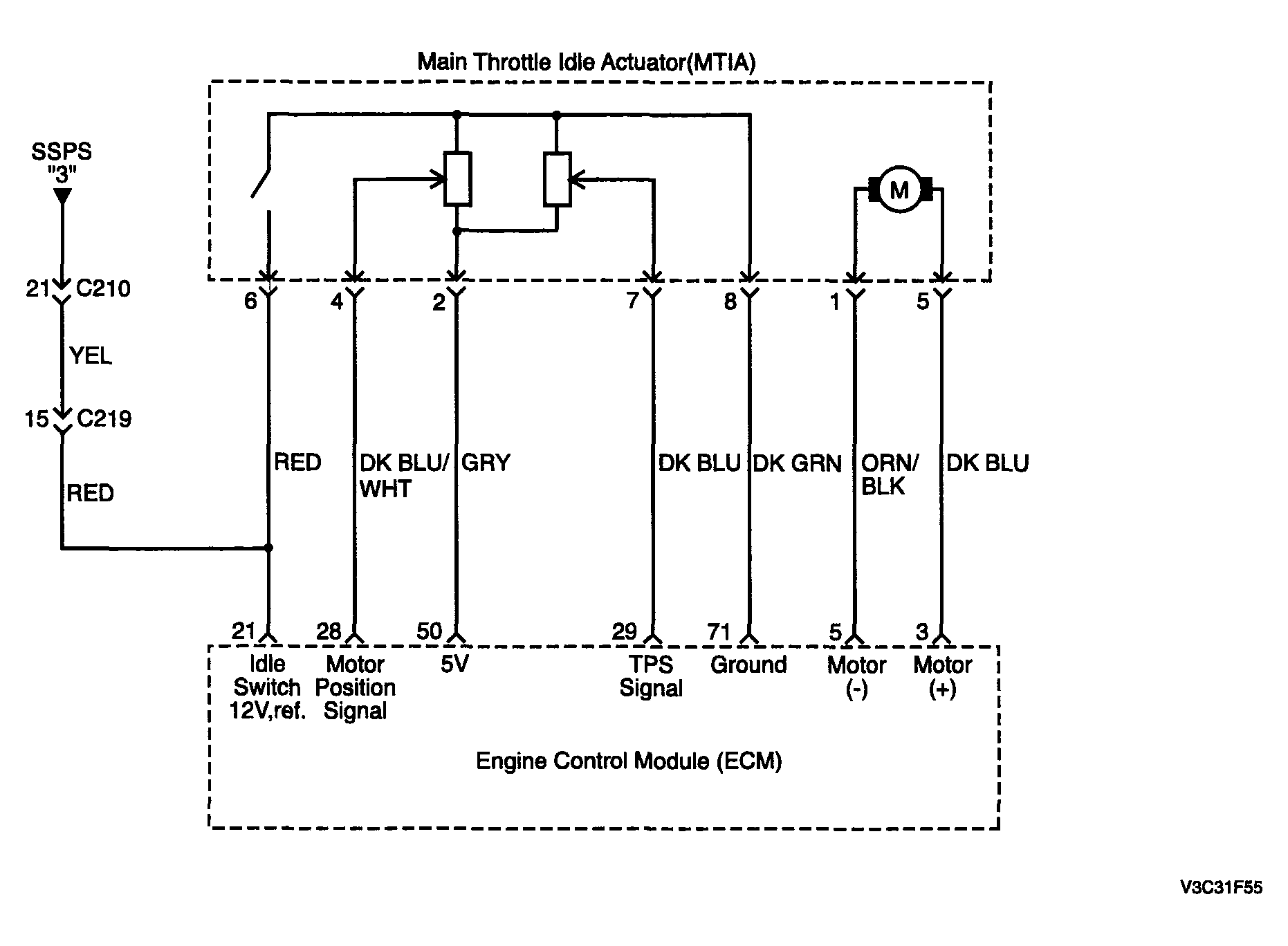

Fig 1: P2119 Main Throttle Idle Actuator (MTIA) Malfunction (Functional Failure) - Circuit Diagram
G04094530Courtesy of SUZUKI OF AMERICA CORP.
