DTC P2118 Main Throttle Idle Actuator Malfunction (Mechanical Failure): Notes

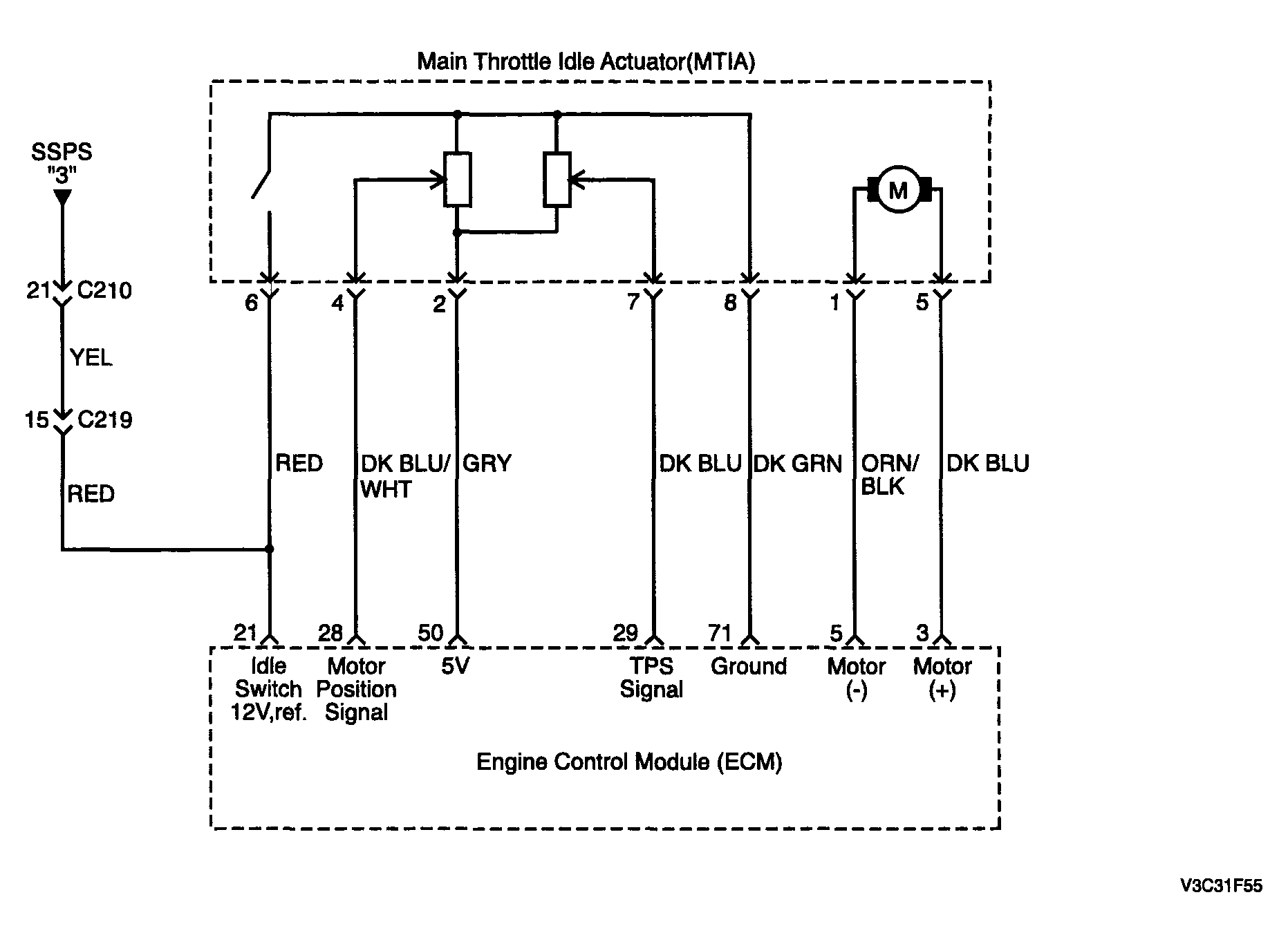

Fig 1: P2118 Main Throttle Idle Actuator Malfunction (Mechanical Failure) - Circuit Diagram
G04094529Courtesy of SUZUKI OF AMERICA CORP.
