DTC P2098 Post Catalyst Fuel Trim System Too Lean (Bank 2): Notes

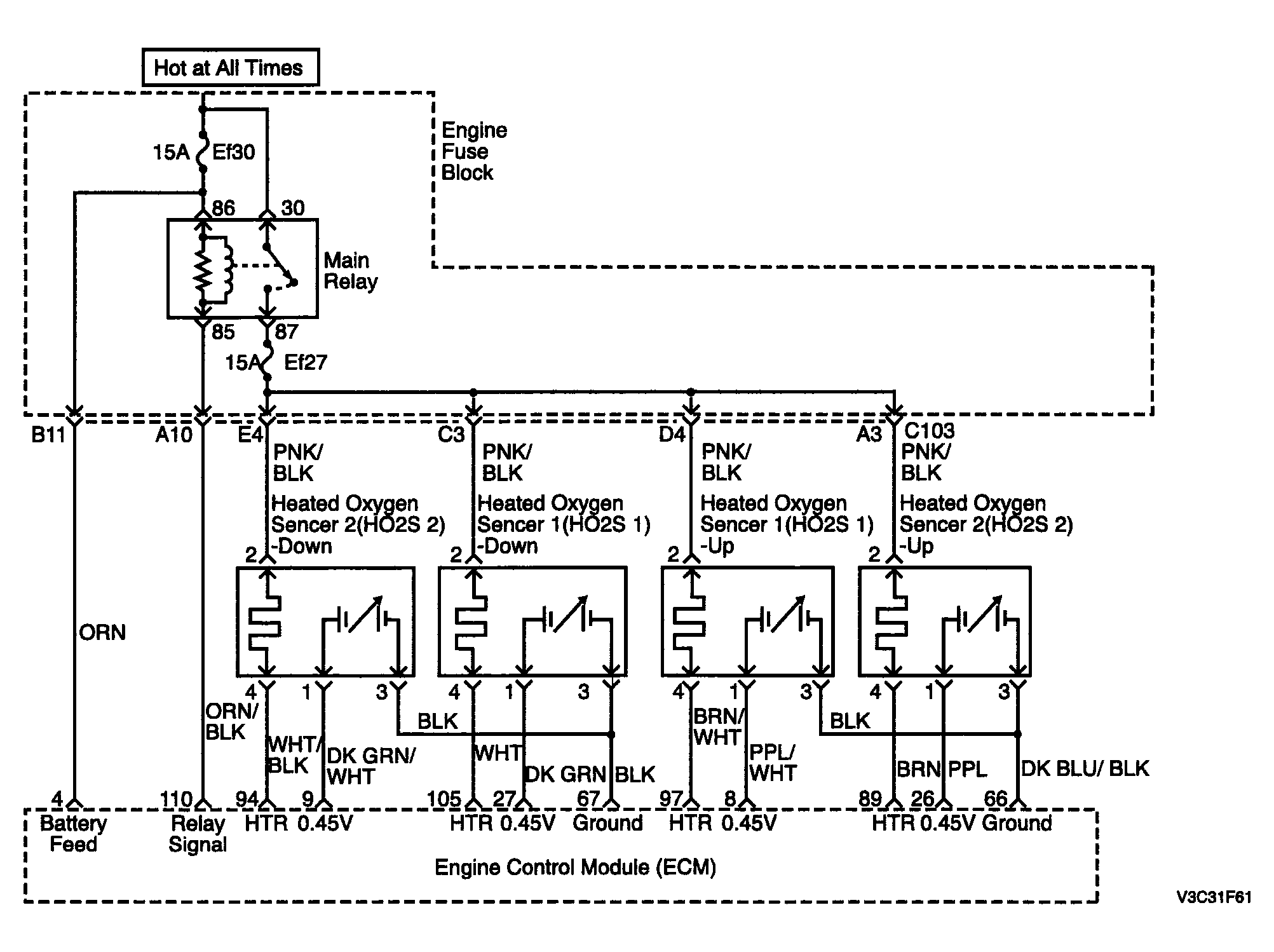

Fig 1: P2098 Post Catalyst Fuel Trim System Too Lean (Bank 2) - Circuit Diagram
G04094527Courtesy of SUZUKI OF AMERICA CORP.
