DTC P2096 Post Catalyst Fuel Trim System Too Lean (Bank 1): Notes

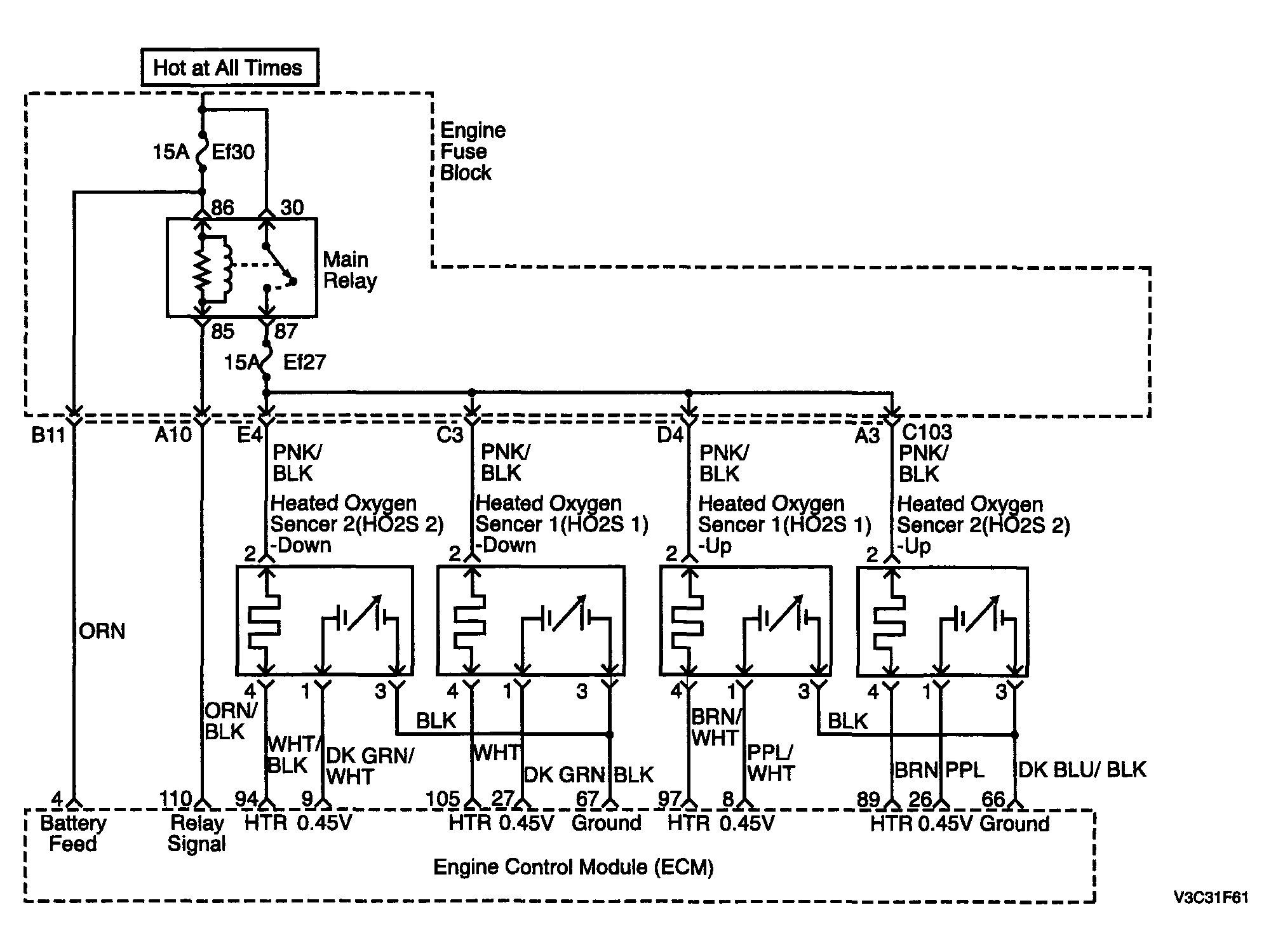

Fig 1: P2096 Post Catalyst Fuel Trim System Too Lean (Bank 1) - Circuit Diagram
G04094526Courtesy of SUZUKI OF AMERICA CORP.
