DTC P1668 Engine Coolant Temperature Output Circuit: Notes

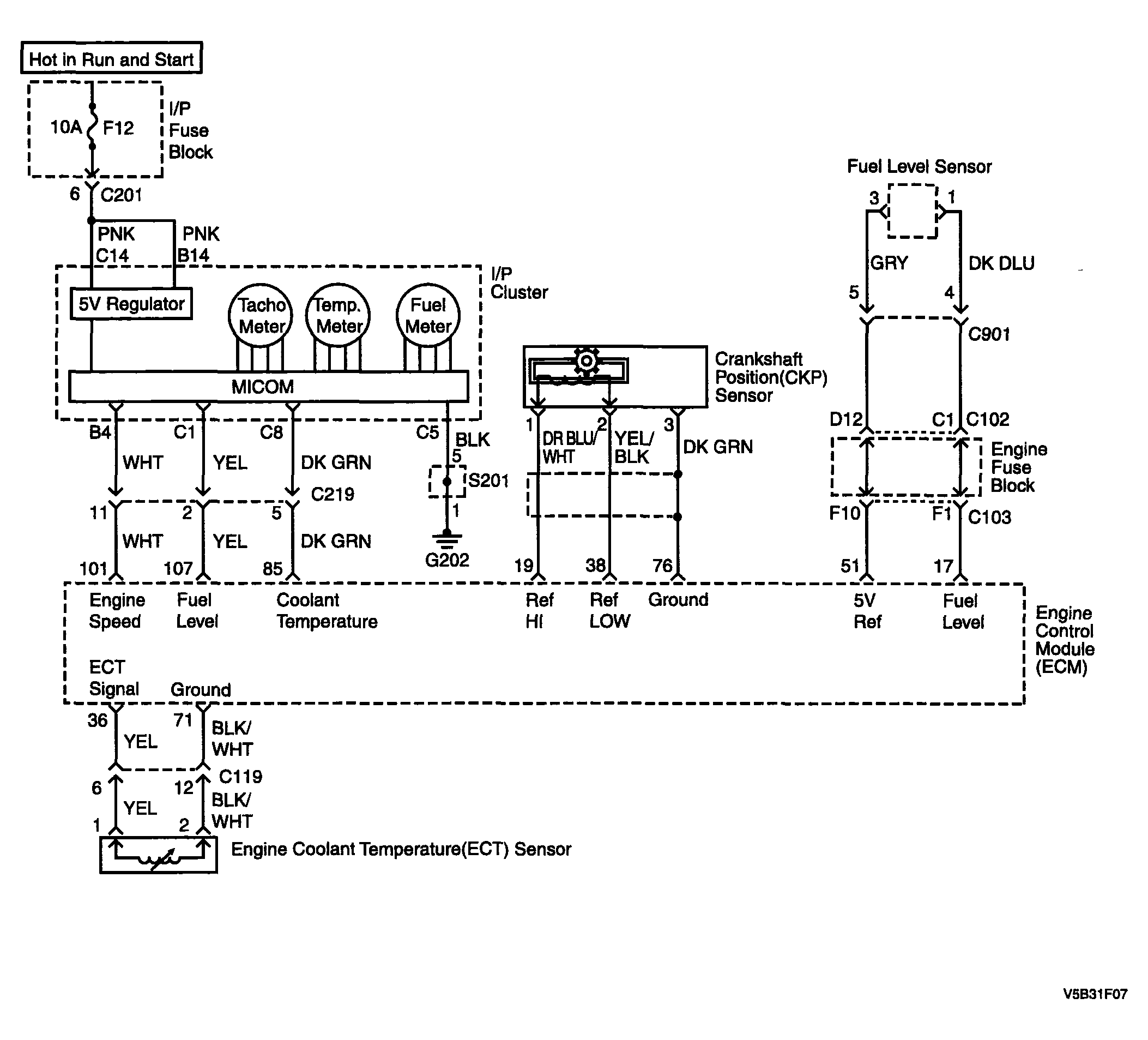

Fig 1: P1668 Engine Coolant Temperature Output Circuit - Circuit Diagram
G04094525Courtesy of SUZUKI OF AMERICA CORP.
