DTC P1321 Crankshaft Segment Malfunction (Period Tooth Error): Notes

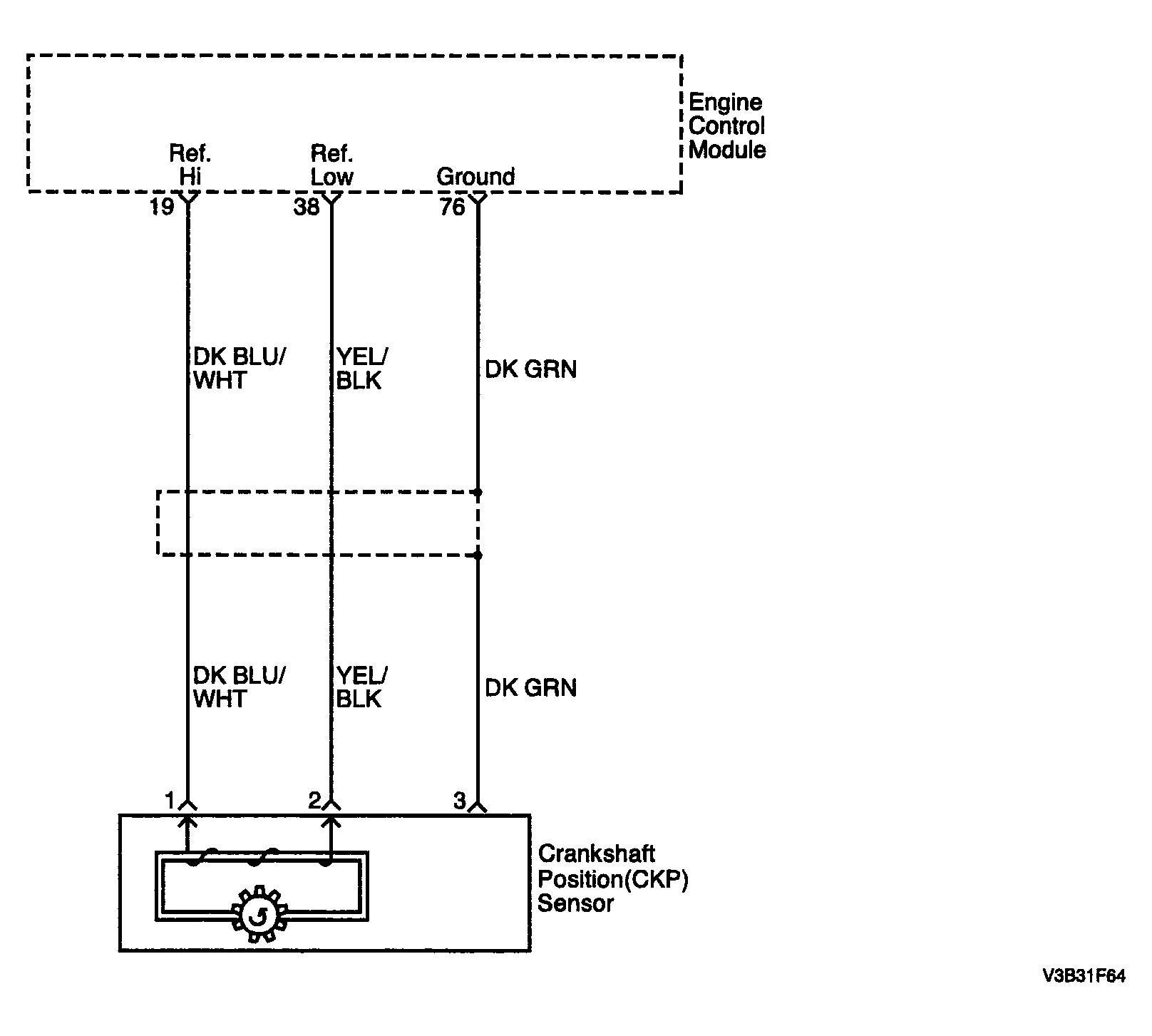

Fig 1: P1321 Crankshaft Segment Malfunction (Period Tooth Error) - Circuit Diagram
G04094518Courtesy of SUZUKI OF AMERICA CORP.
