DTC P0451 Fuel Tank Pressure Sensor Signal Stuck: Notes

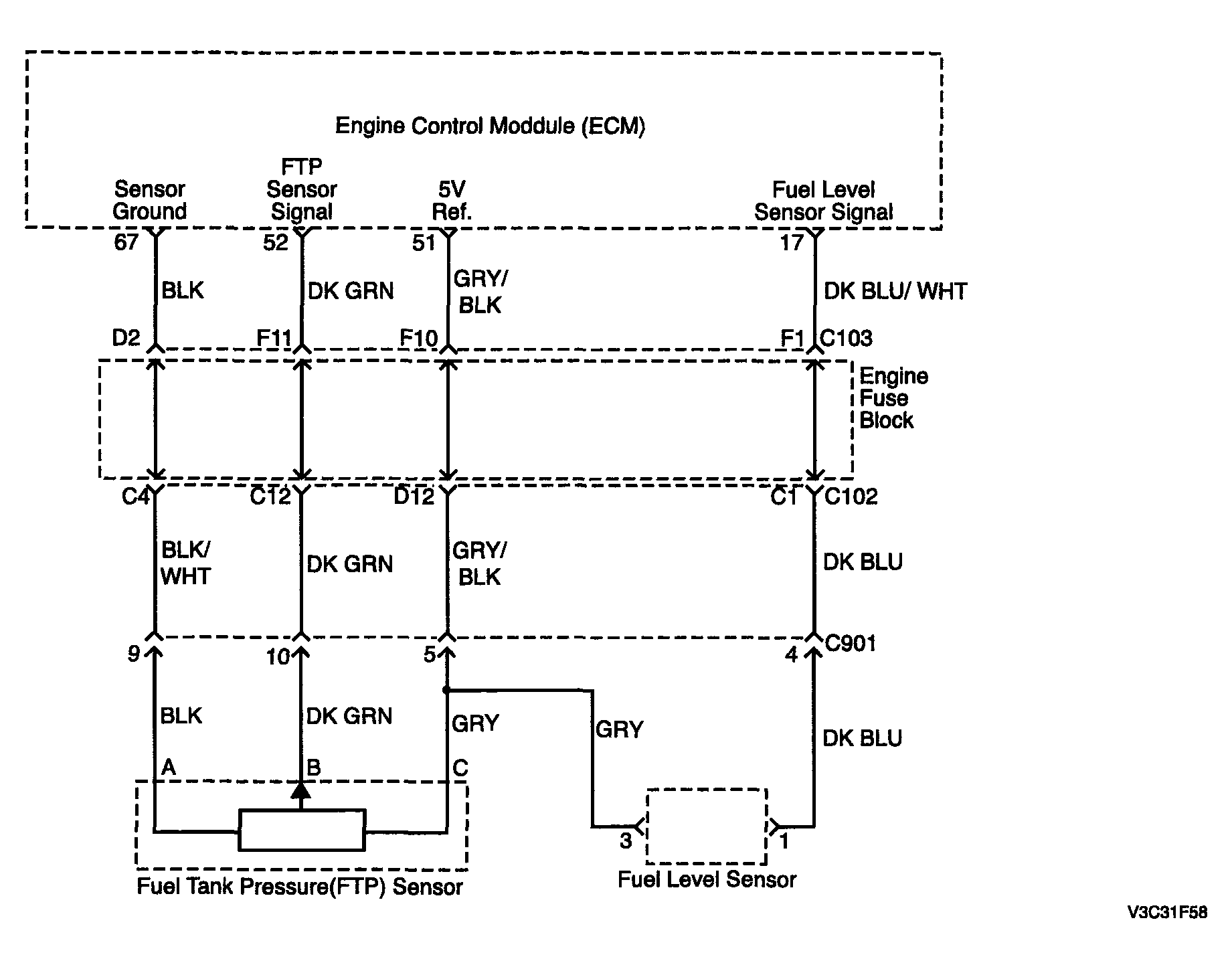

Fig 1: P0451 Fuel Tank Pressure Sensor Signal Stuck - Circuit Diagram
G04094494Courtesy of SUZUKI OF AMERICA CORP.
