DTC P0447 EVAP Vent Control Circuit Open: Notes

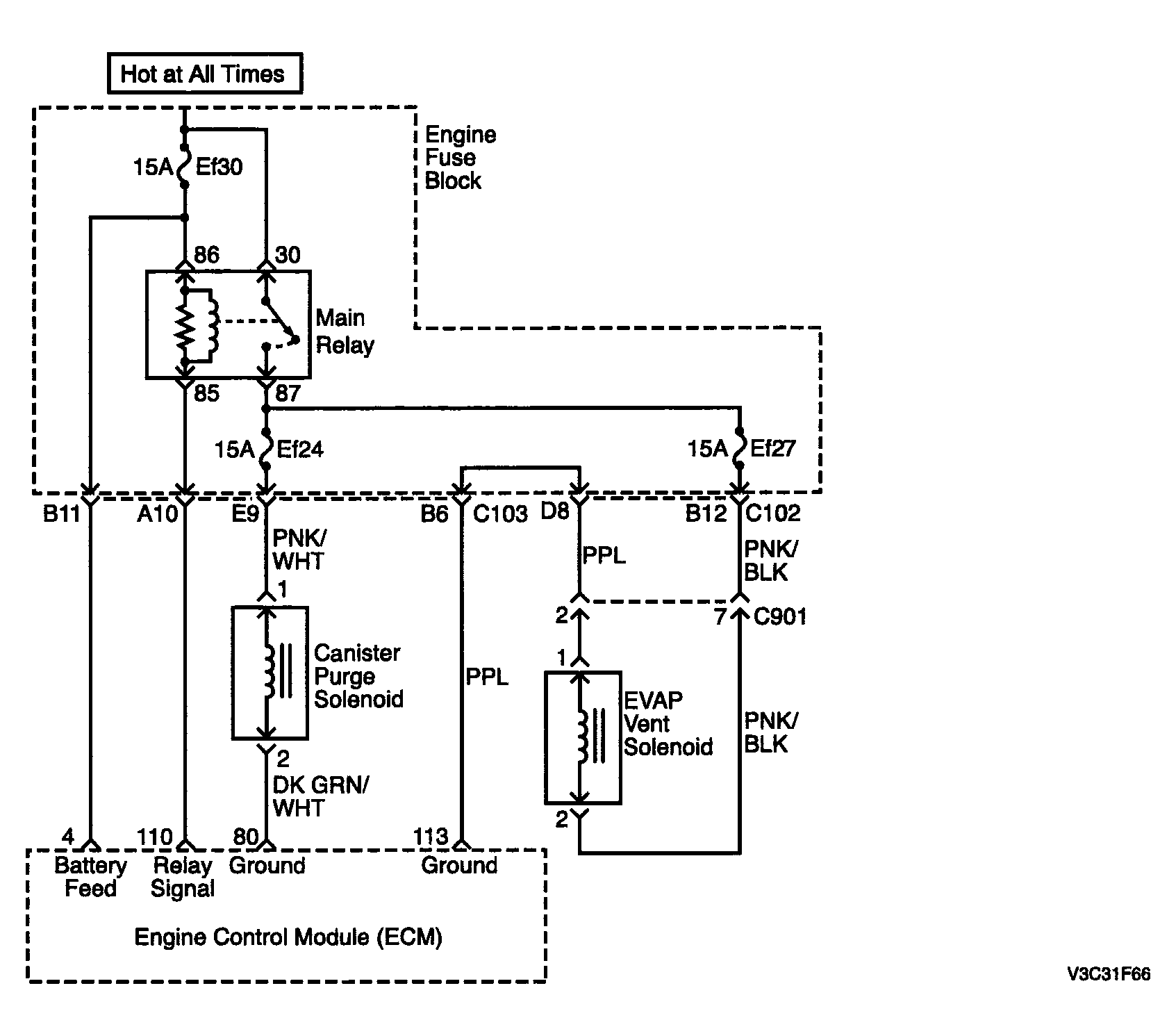

Fig 1: P0447 EVAP Vent Control Circuit Open - Circuit Diagram
G04094492Courtesy of SUZUKI OF AMERICA CORP.
