DTC P0444 EVAP Purge Control Valve Circuit Open: Notes

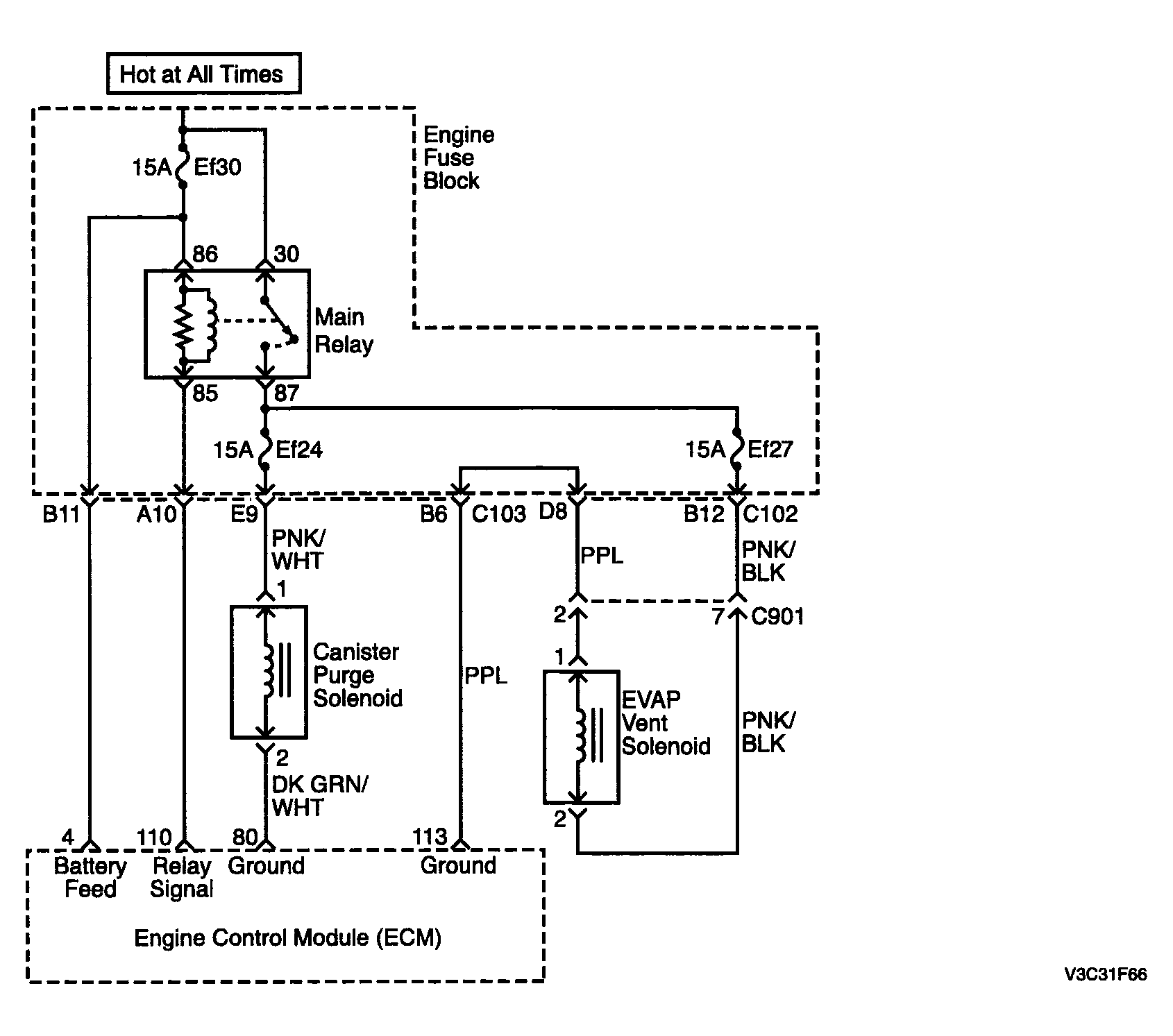

Fig 1: P0444 EVAP Purge Control Valve Circuit Open - Circuit Diagram
G04094490Courtesy of SUZUKI OF AMERICA CORP.
