DTC P0403 Exhaust Gas Recirculation (EGR) Circuit Malfunction: Notes

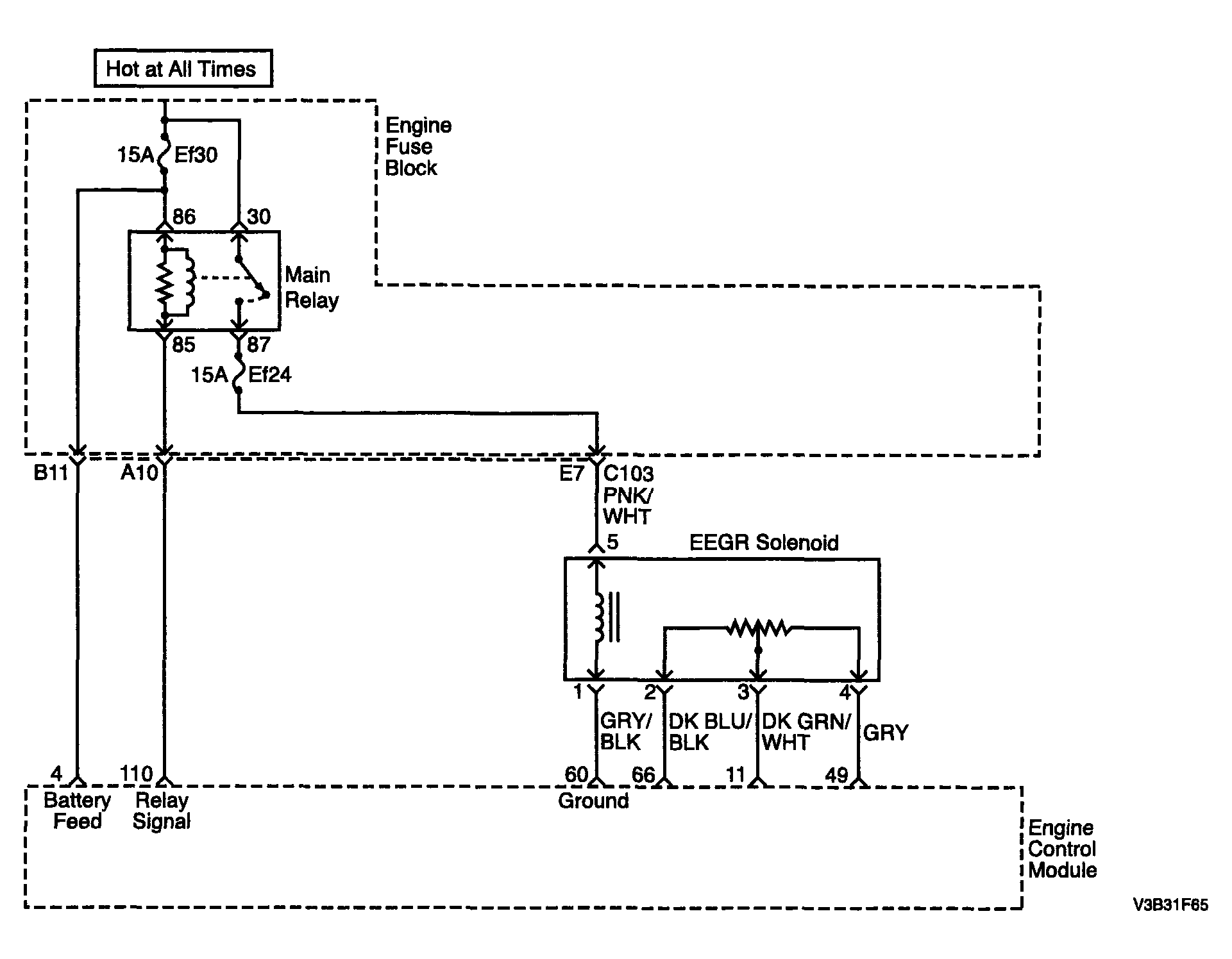

Fig 1: P0403 Exhaust Gas Recirculation (EGR) Circuit Malfunction - Circuit Diagram
G04094485Courtesy of SUZUKI OF AMERICA CORP.
