DTC P0400 Exhaust Gas Recirculation (EGR) Flow Malfunction: Notes

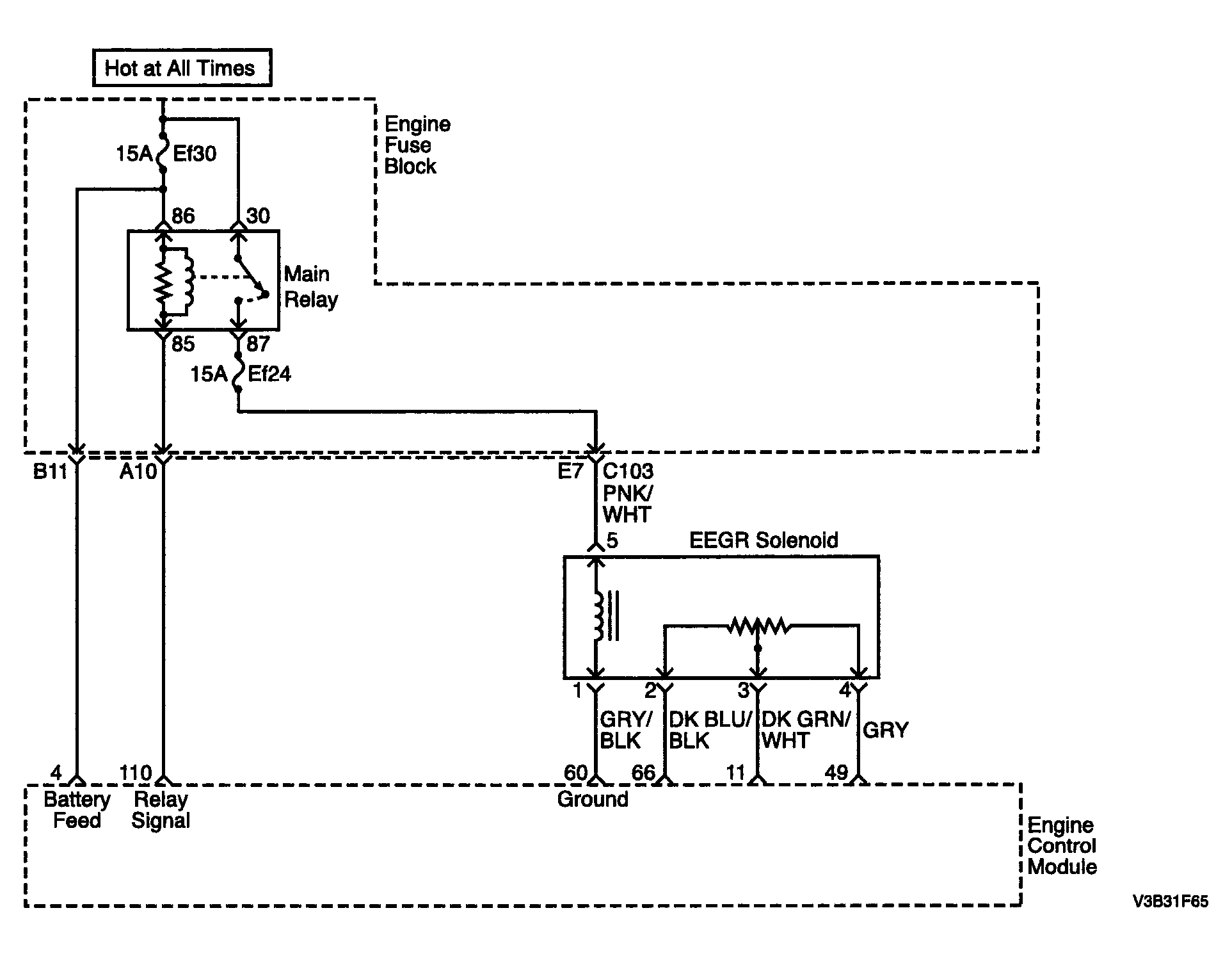

Fig 1: P0400 Exhaust Gas Recirculation (EGR) Flow Malfunction - Circuit Diagram
G04094483Courtesy of SUZUKI OF AMERICA CORP.
