DTC P0342 Camshaft Position (CMP) Sensor Malfunction (No Signal): Notes

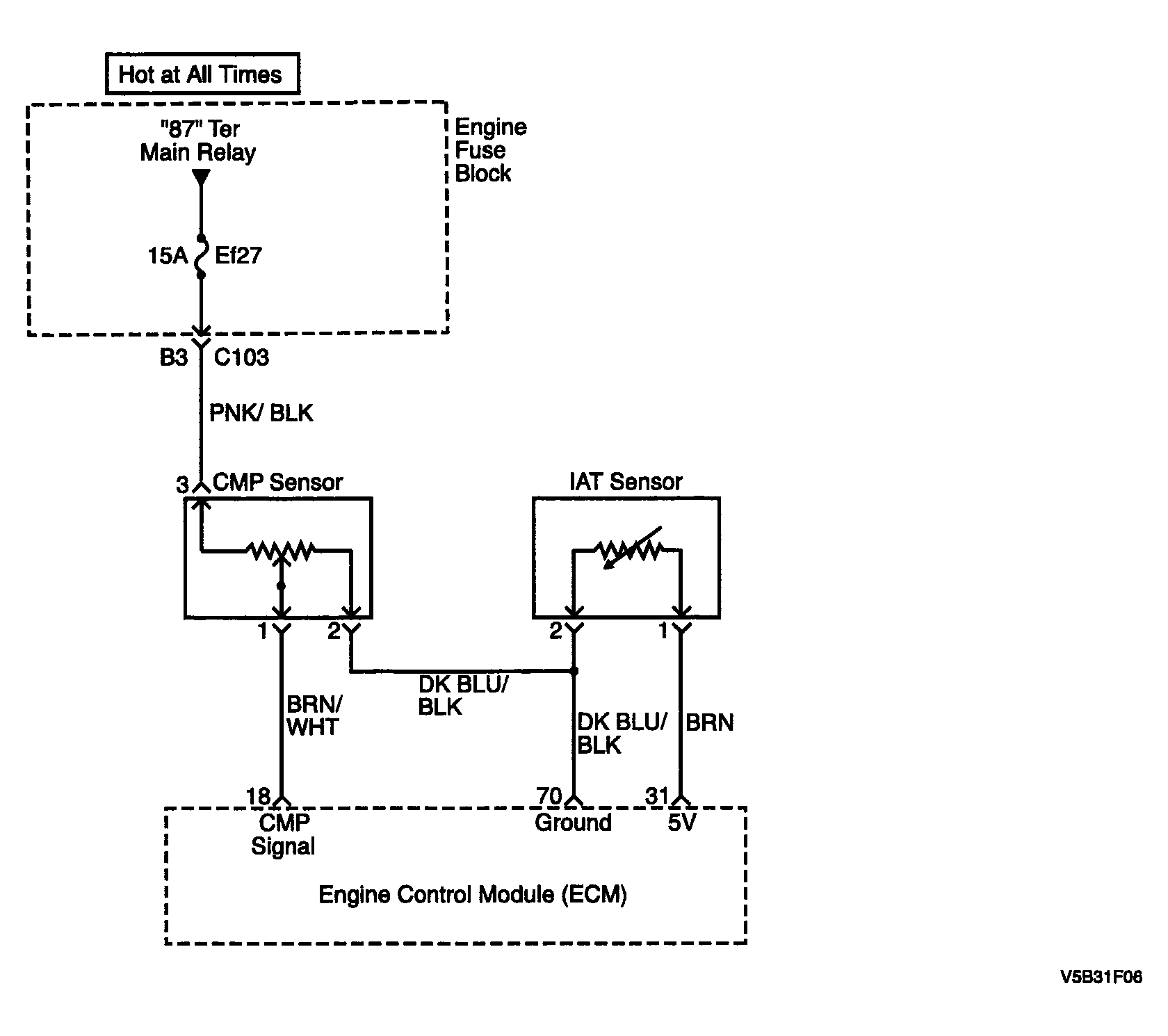

Fig 1: P0342 Camshaft Position (CMP) Sensor Malfunction (No Signal) - Circuit Diagram
G04094482Courtesy of SUZUKI OF AMERICA CORP.
