DTC P0329 Knock Sensor 1 Malfunction: Notes

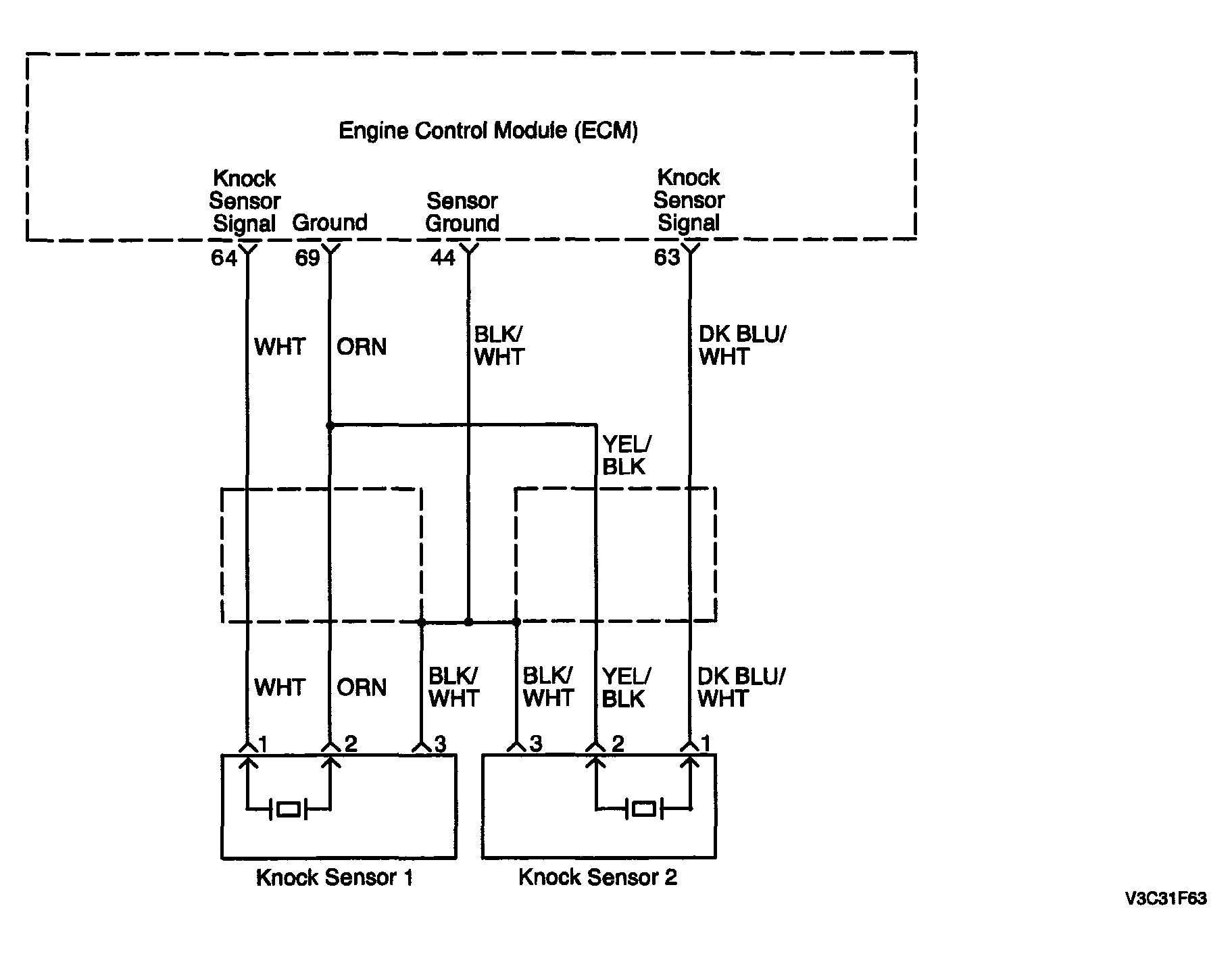

Fig 1: P0329 Knock Sensor 1 Malfunction - Circuit Diagram
G04094476Courtesy of SUZUKI OF AMERICA CORP.
