DTC P0154 HO2S Bank 2 Sensor 1 No Activity Detected: Notes

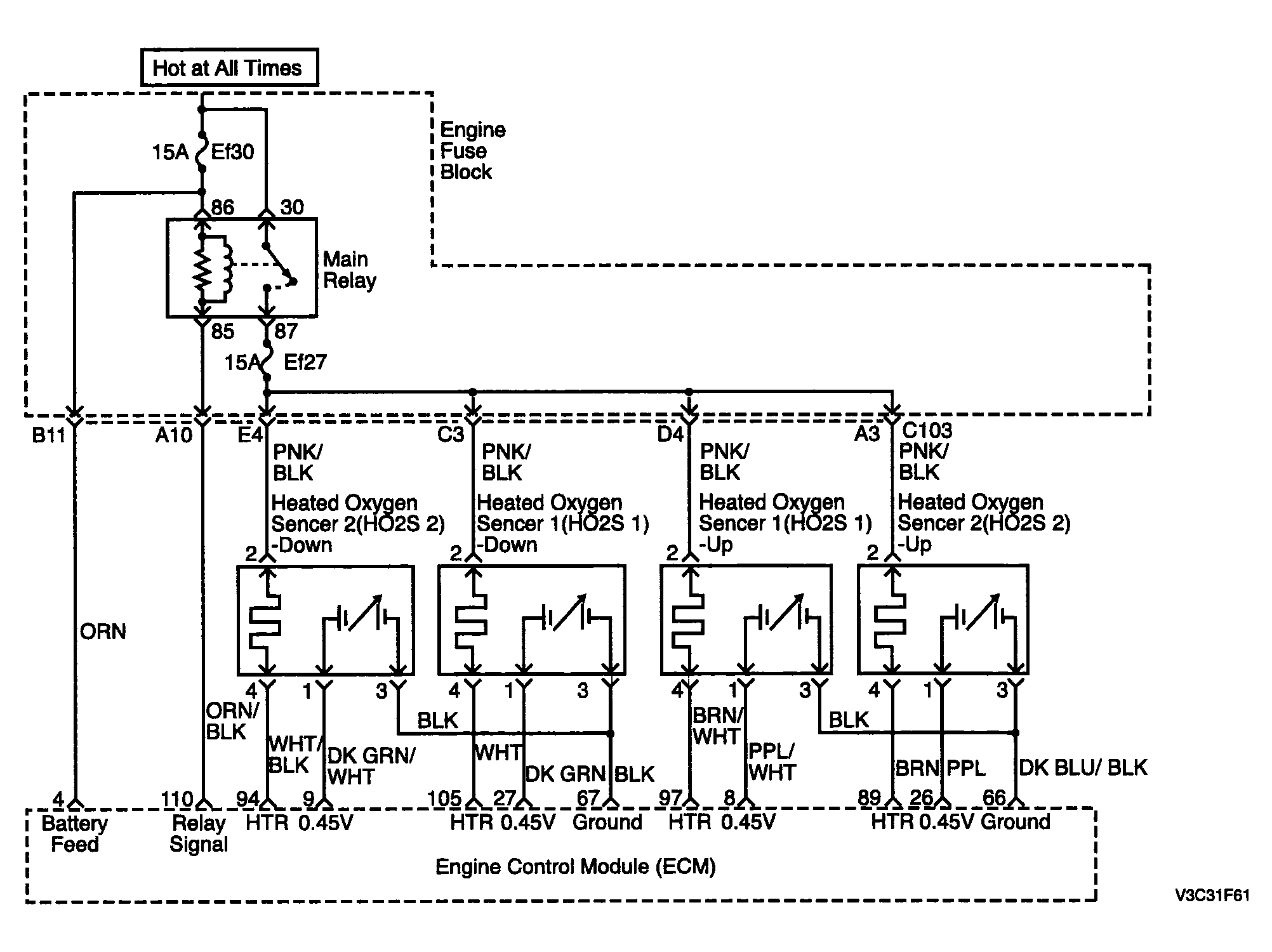

Fig 1: P0154 Ho2S Bank 2 Sensor 1 No Activity Detected - Circuit Diagram
G04094449Courtesy of SUZUKI OF AMERICA CORP.
