DTC P0153 HO2S Bank 2 Slow Response/No Activity Detected: Notes

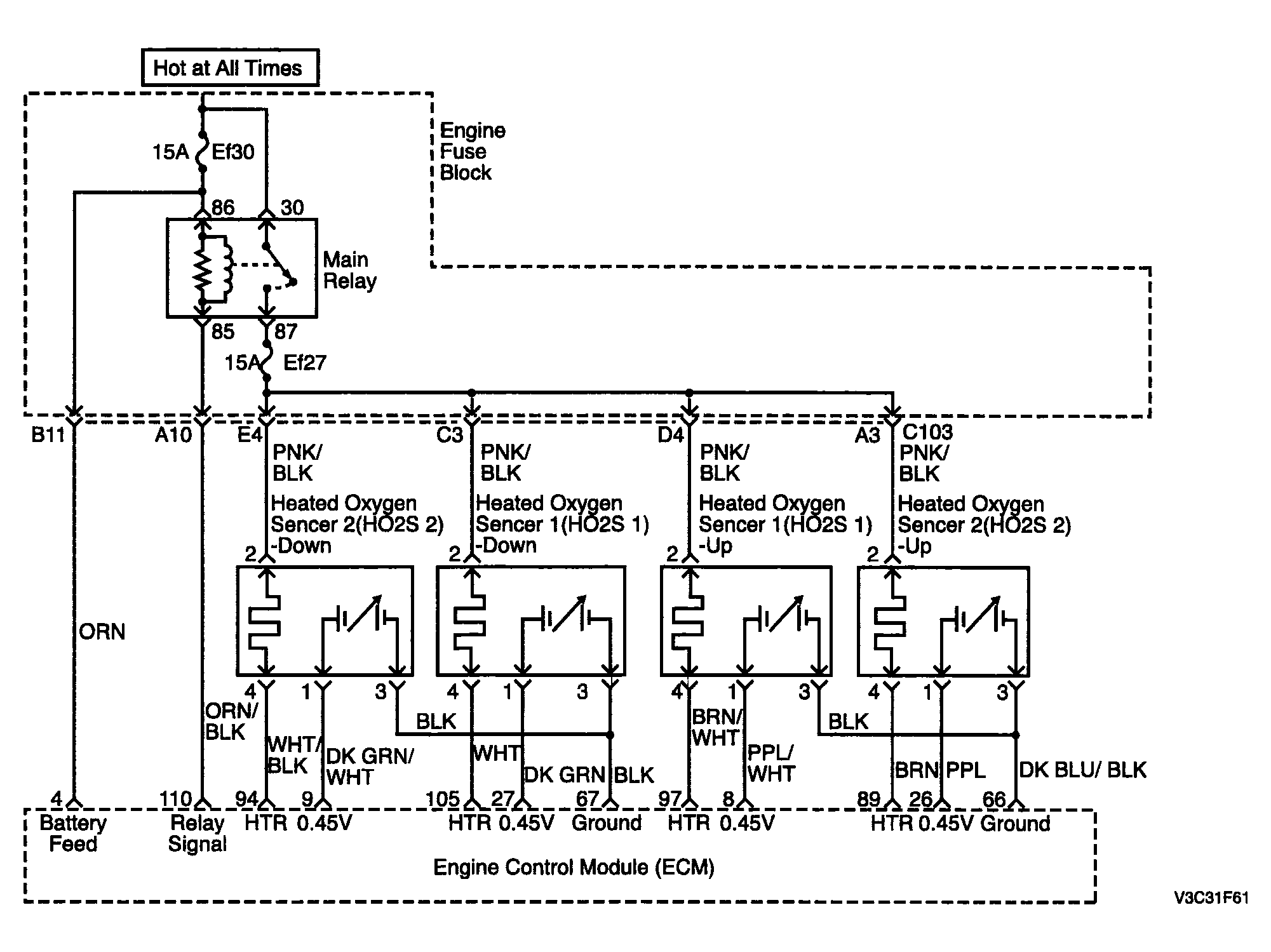

Fig 1: P0153 Ho2S Bank 2 Slow Response/No Activity Detected - Circuit Diagram
G04094448Courtesy of SUZUKI OF AMERICA CORP.
