DTC P0140 HO2S Bank 1 No Activity Detected: Notes

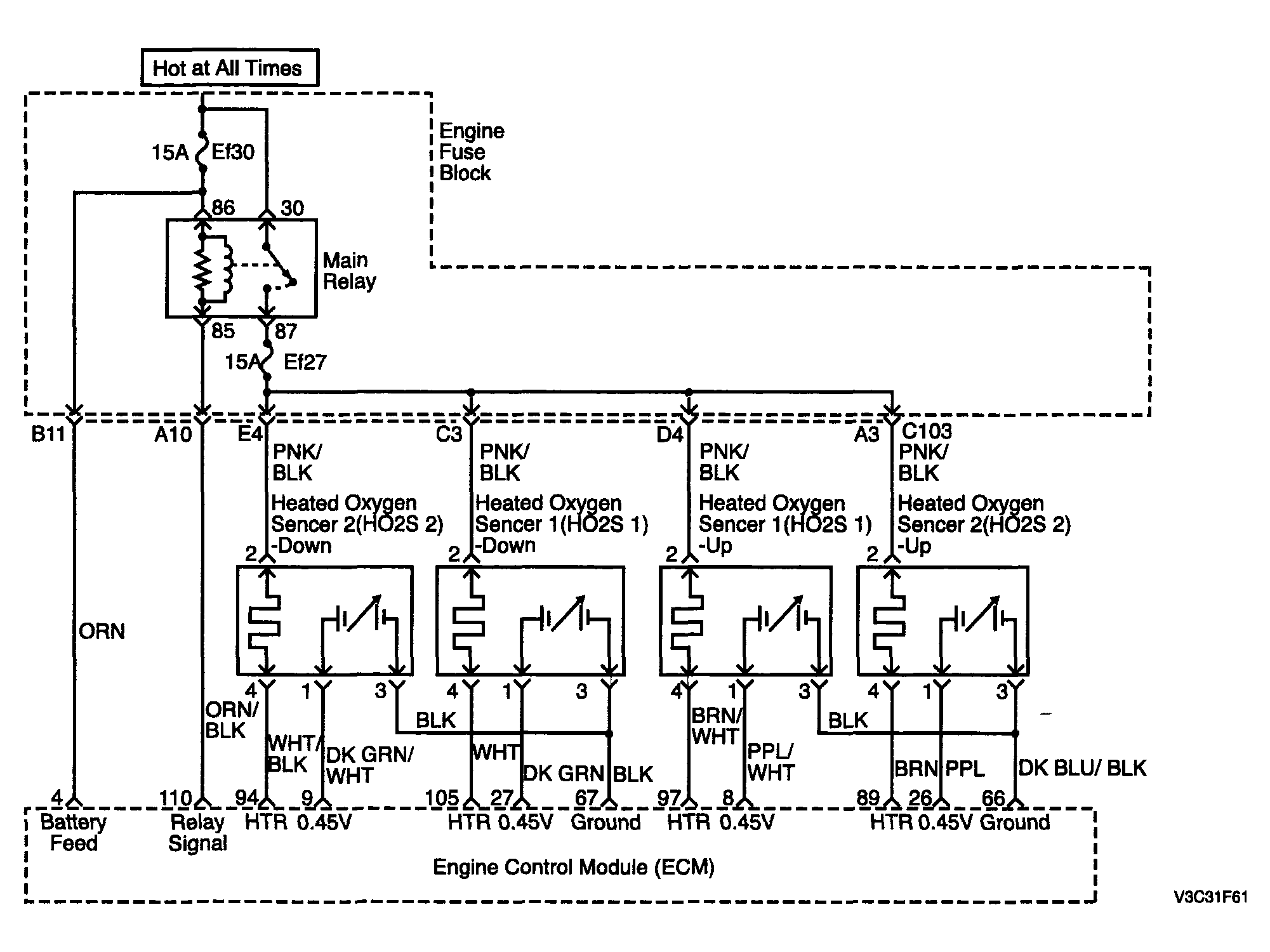

Fig 1: P0140 Ho2S Bank 1 No Activity Detected - Circuit Diagram
G04094445Courtesy of SUZUKI OF AMERICA CORP.
