DTC P0119 Engine Coolant Temperature (ECT) Sensor Gradient Failure: Notes

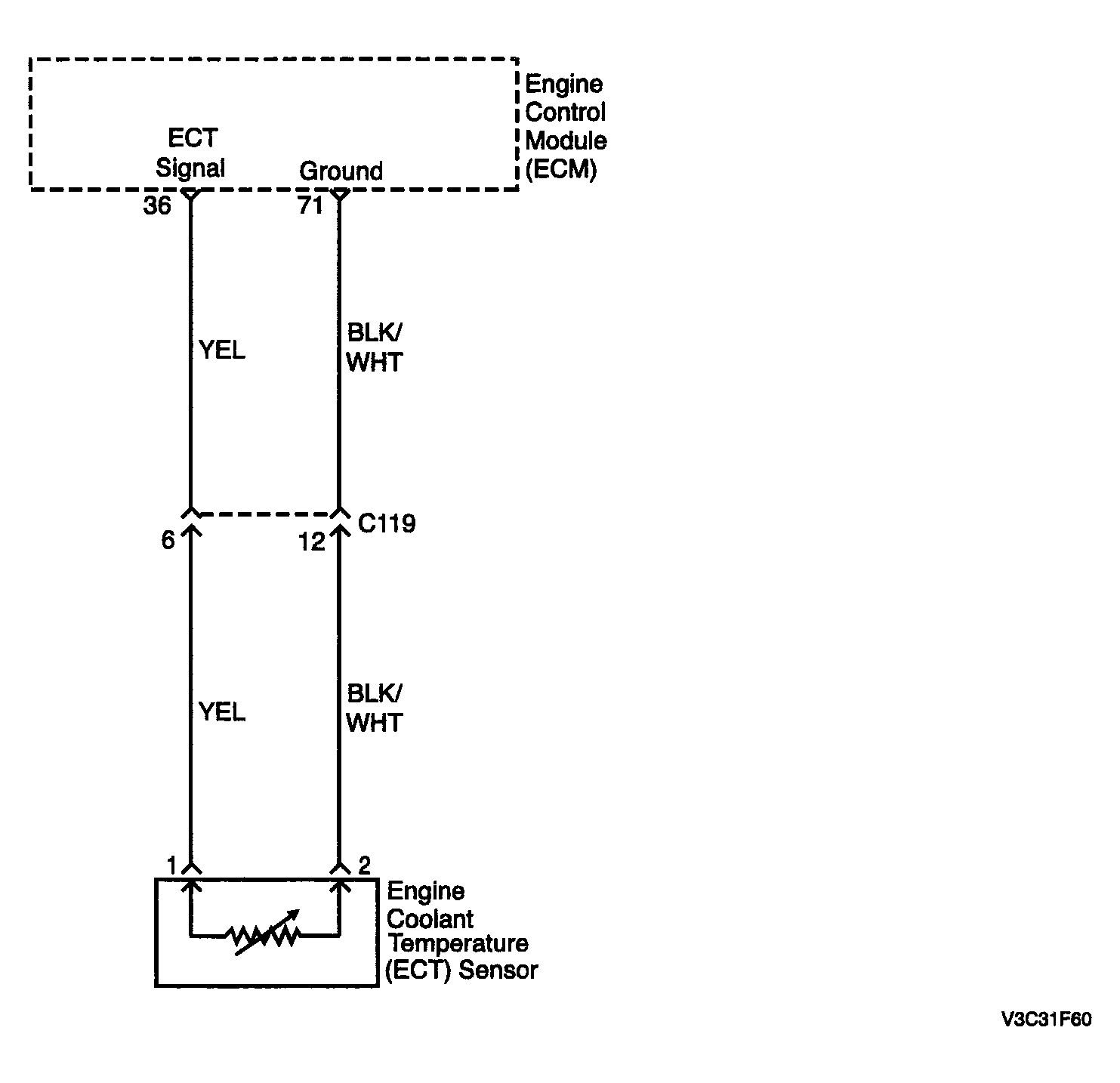

Fig 1: P0119 Engine Coolant Temperature (ECT) Sensor Gradient Failure - Circuit Diagram
G04094432Courtesy of SUZUKI OF AMERICA CORP.
