DTC P0050 HO2S Bank 2 Heater Resistance Out of Limits: Notes

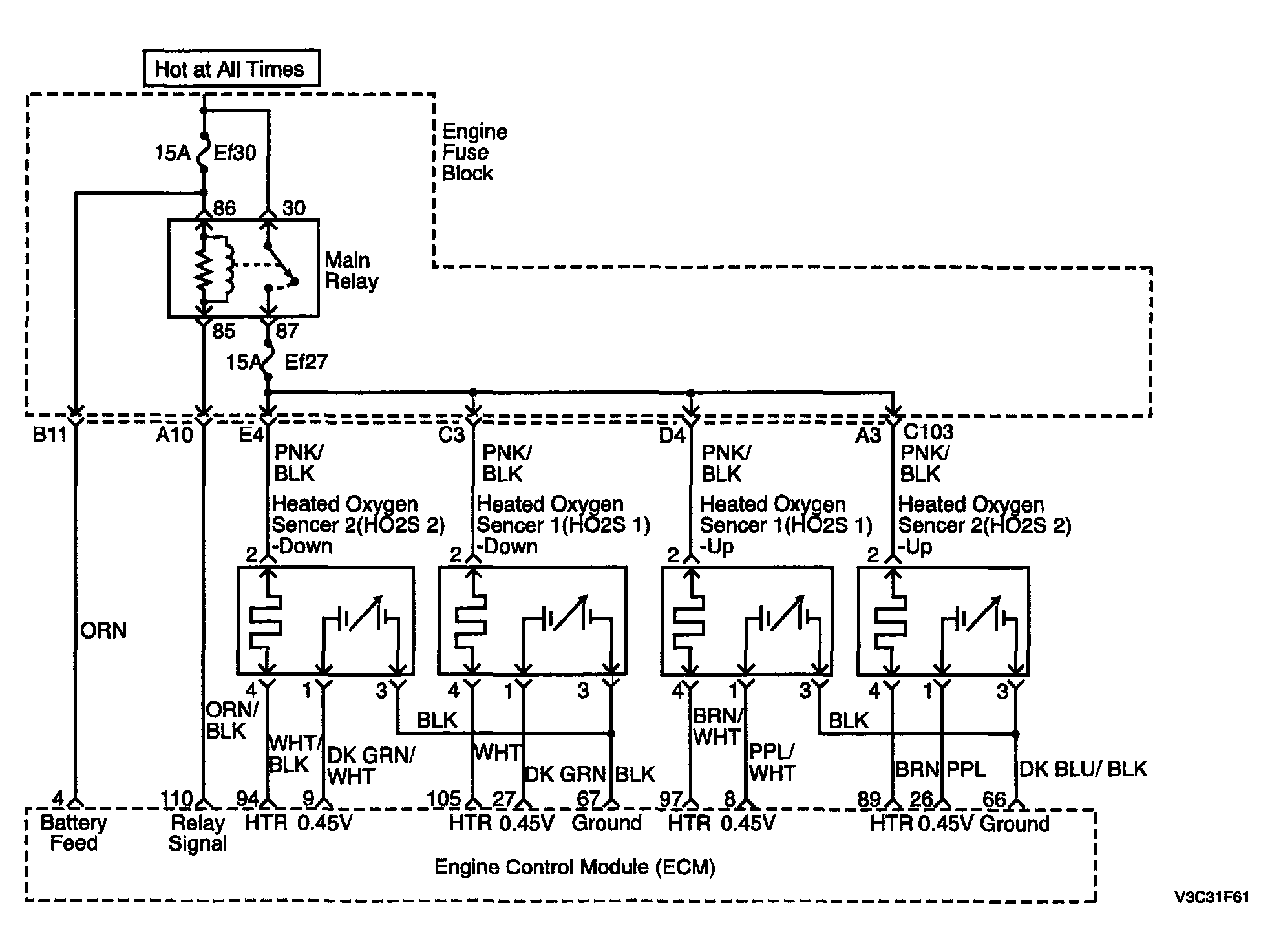

Fig 1: P0050 HO2S Bank 2 Heater Resistance Out Of Limits - Circuit Diagram
G04094416Courtesy of SUZUKI OF AMERICA CORP.
