Starter Installation

Install the starter-to-engine block mounting bolt and the transmission-to-starter mounting bolt.
Tighten

Tighten the starter-to-engine block mounting bolt to 45 N.m (33 lb-ft).

Tighten the transmission-to-starter mounting bolt to 50 N.m (37 lb-ft).

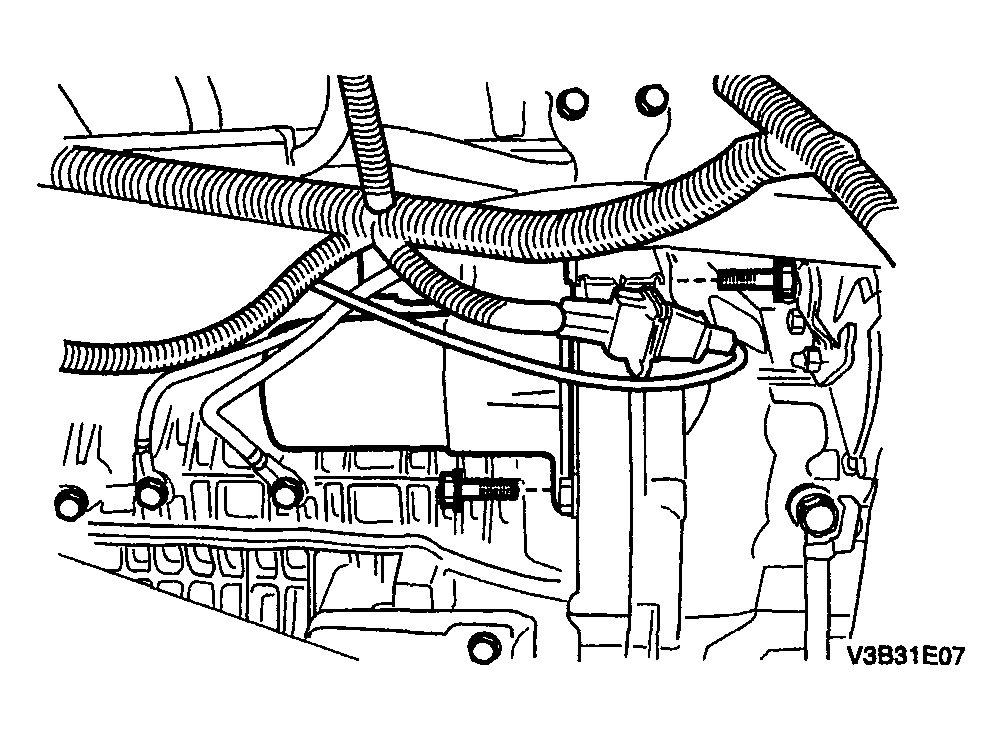

Fig 1: Installing Starter-To-Engine Block Mounting Bolt And Transmission-To-Starter Mounting Bolt
Courtesy of SUZUKI OF AMERICA CORP.
Position the starter electrical wire on the solenoid terminals and the ground wire.
Install the starter solenoid nut.
Tighten

Tighten the starter solenoid nut to 7 N.m (61 lb-in).
Connect the starter solenoid connector.

Fig 2: Installing Starter Solenoid Nut And Connector
Courtesy of SUZUKI OF AMERICA CORP.
Install the air Inlet hose.
Install the air Inlet hose bolts.
Tighten

Tighten the air Inlet hose bolts to 6 N.m (53 lb-in).
Connect the negative battery cable.

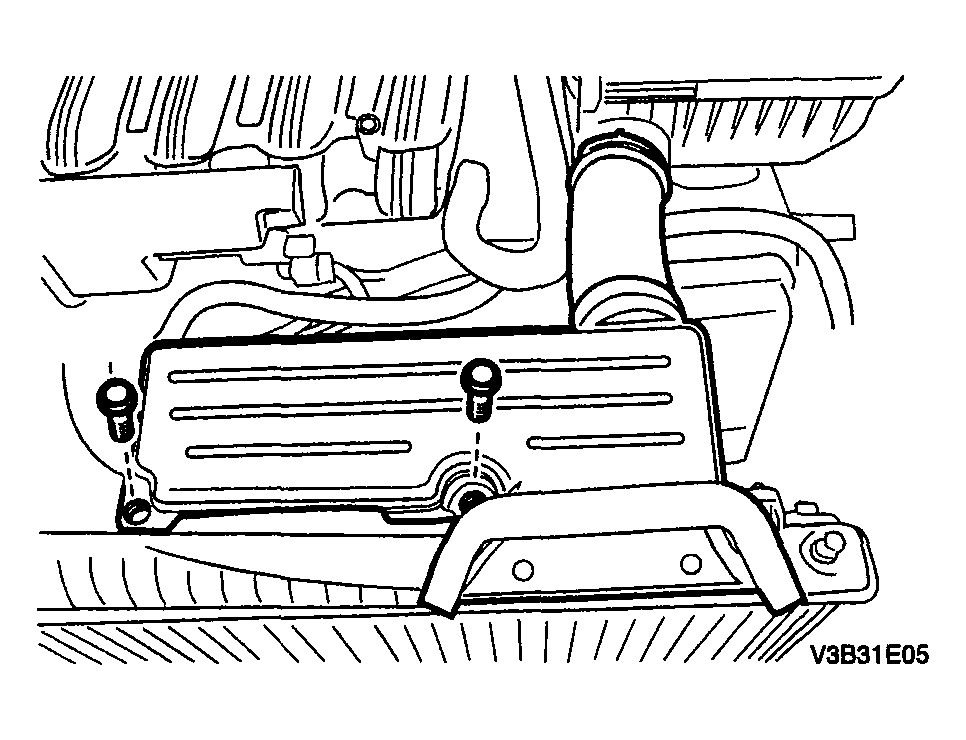

Fig 3: Installing Air Inlet Hose Bolts
Courtesy of SUZUKI OF AMERICA CORP.
