Oil Pan / Oil Pump Installation

Installation should follow the removal procedure in the reverse order.
Discard used oil pump oil ring and install new one.
Tighten the oil suction pipe-to-oil pump retaining bolts, oil suction pipe bracket bolt, and the oil pump retaining bolt.
Tighten

Tighten the oil suction pipe - to - oil pump retaining bolts to 8 ~ 12 N.m (106 ~ 124 lb-in).

Tighten the oil suction pipe bracket bolt to 8 ~ 12 N.m (106 ~ 124 lb-in).

Tighten the oil pump retaining bolts to 18 ~ 22 N.m (13 ~ 16 lb-ft).

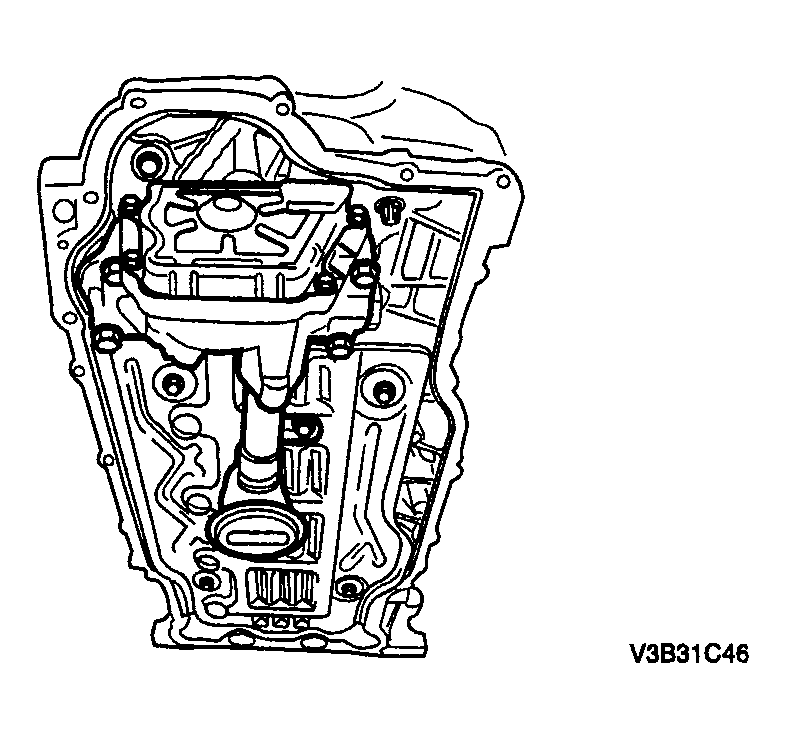

Fig 1: Tightening Four (4) Oil Pump Retaining Bolts And Oil Pump
Courtesy of SUZUKI OF AMERICA CORP.
Install the oil pump sprocket.
NOTE: Make sure that the dotted surface on the sprocket faces toward the oil pump.

Tighten

Tighten the oil pump sprocket retaining nut to 18 ~ 22 N.m (13 ~ 16 lb-ft).

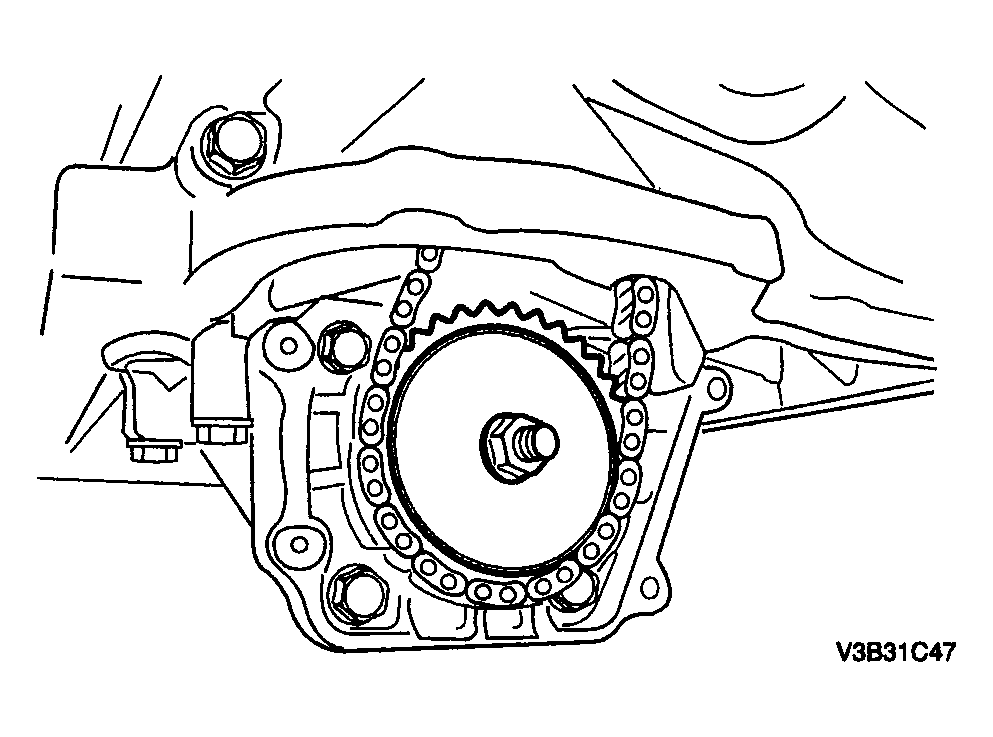

Fig 2: Installing Oil Pump Sprocket
Courtesy of SUZUKI OF AMERICA CORP.
Install the oil pump sprocket cover.
Tighten

Tighten the oil pump sprocket cover retaining bolts to 5 ~ 7 N.m (44 ~ 62 lb-in).

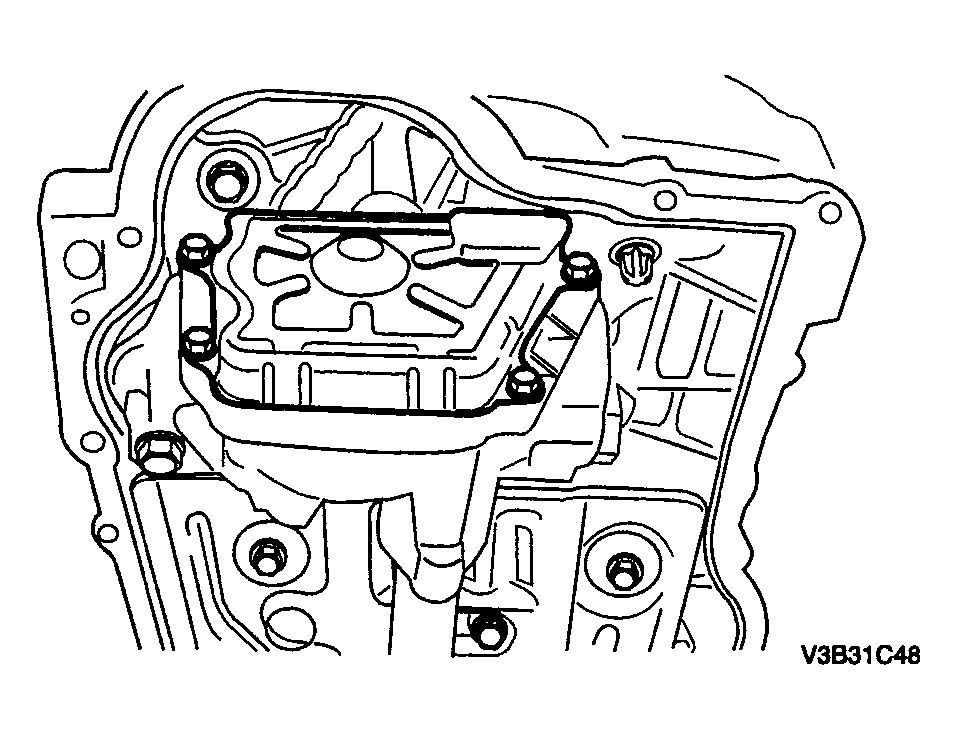

Fig 3: Installing Oil Pump Sprocket Cover
Courtesy of SUZUKI OF AMERICA CORP.
After cleaning the remaining liquid gasket and oil, apply new liquid gasket (Loctite(R) 5900 - M8585) on the oil pan.

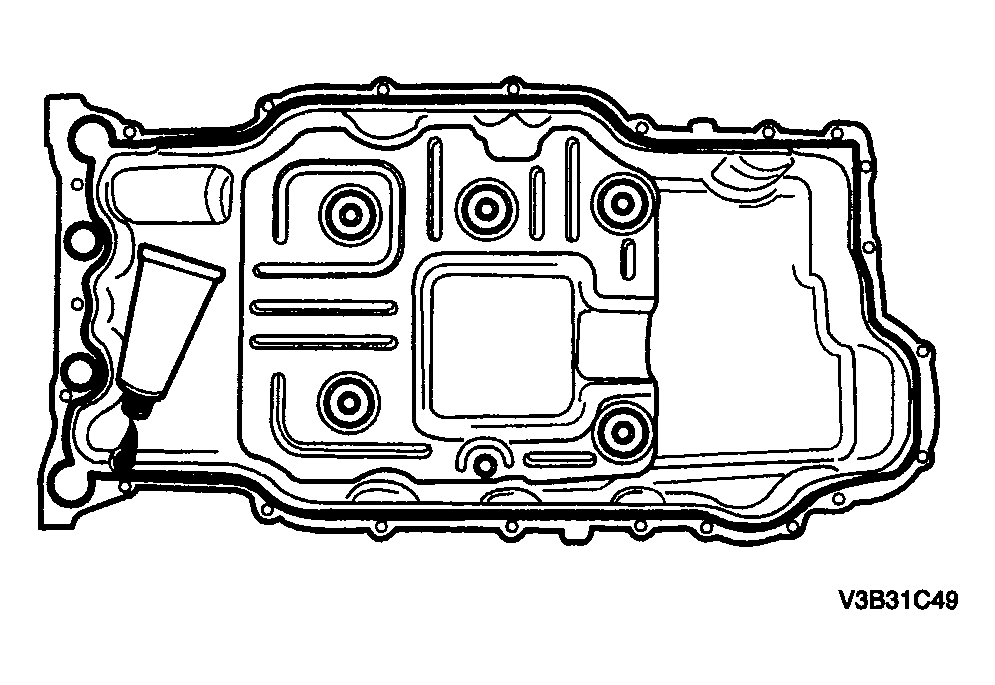

Fig 4: Applying New Liquid Gasket
Courtesy of SUZUKI OF AMERICA CORP.
After cleaning the remaining liquid gasket and oil on the bed plate flange, install the oil pan.
Tighten

Tighten the oil pan retaining bolts to 8 ~ 12 N.m (71 ~ 106 lb-in).

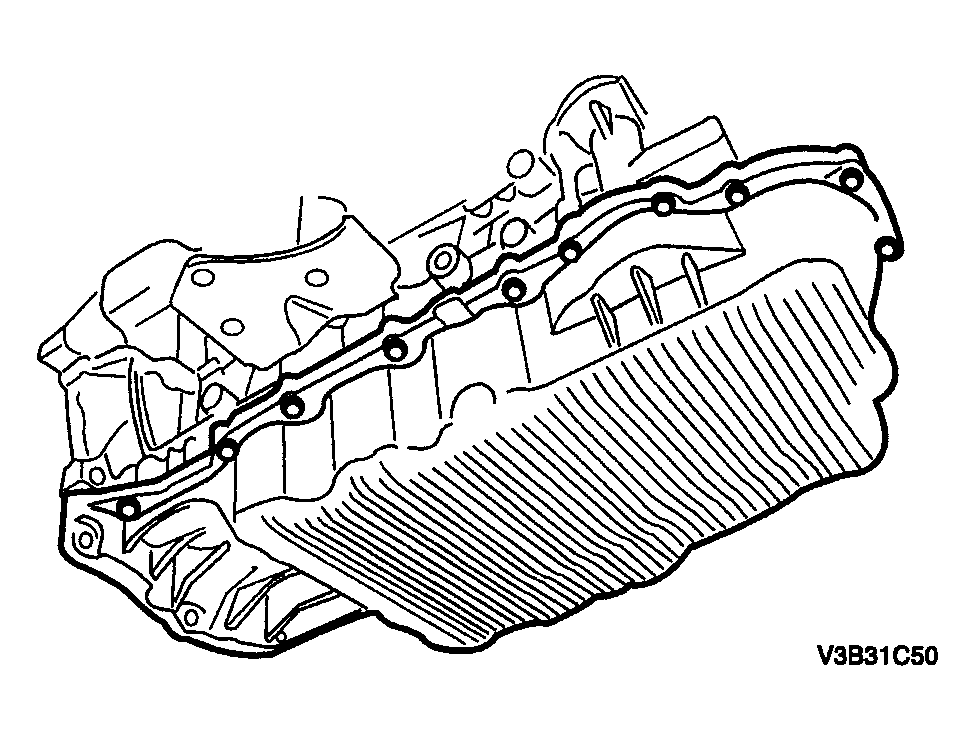

Fig 5: Installing Oil Pan
Courtesy of SUZUKI OF AMERICA CORP.
Tighten the center front suspension member bolts.
Tighten

Tighten the center front suspension member bolts to 80 ~ 100 N.m (59 ~ 74 lb-ft).
Tighten the front engine mount bracket-to-damper bush bolt.
Tighten

Tighten the front engine mount bracket-to-damper bush bolt to 70 ~ 90 N.m (52 ~ 66 lb-ft).

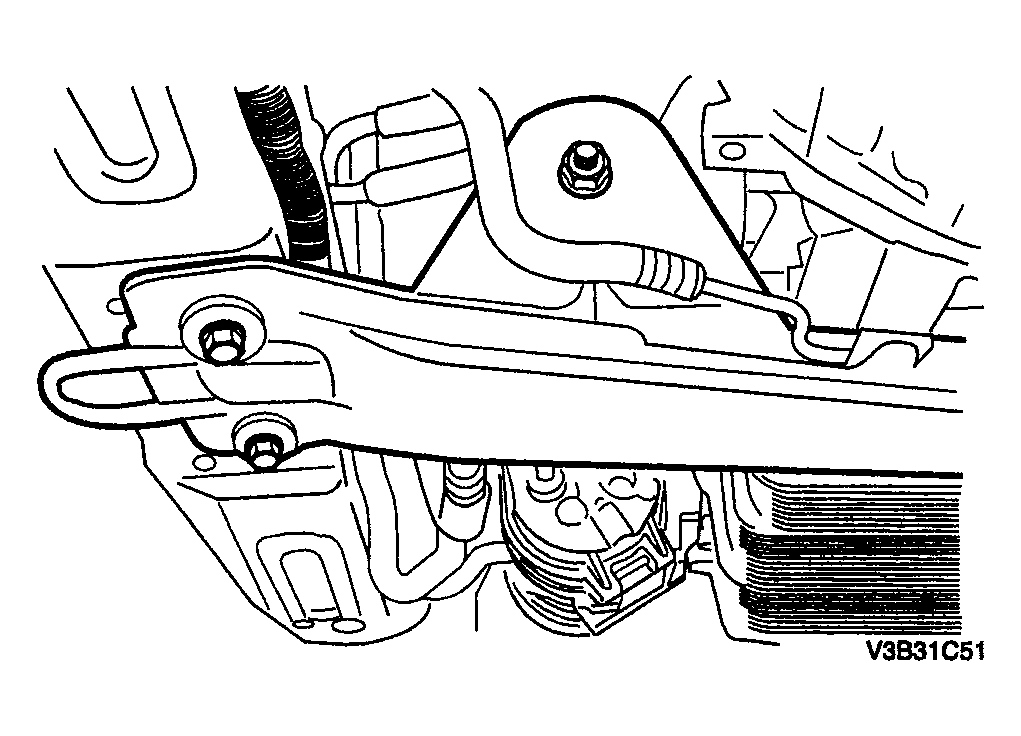

Fig 6: Tightening Center Front Suspension Member Bolts
Courtesy of SUZUKI OF AMERICA CORP.
Tighten the oil pan flange-to-transaxle bolt.
Tighten

Tighten the oil pan flange-to-transaxle bolt to 27 ~ 35 N.m (20 ~ 26 lb-ft).

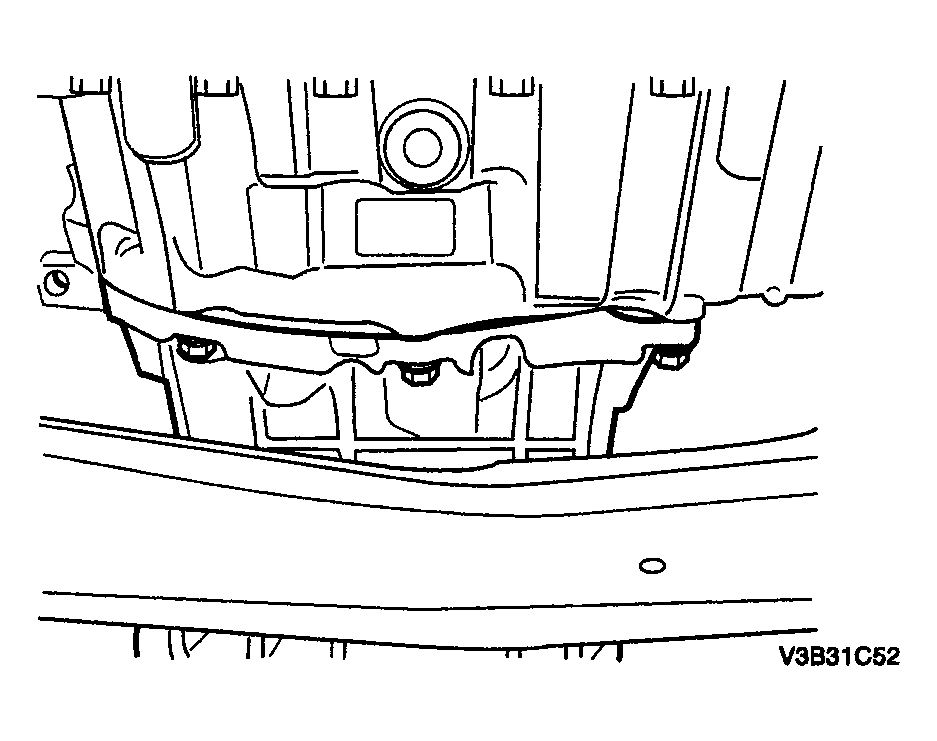

Fig 7: Tightening Oil Pan Flange-To-Transaxle Bolt
Courtesy of SUZUKI OF AMERICA CORP.
Discard used oil pan drain plug washer and replace it with a new one.
Install the oil pan drain plug.
Tighten

Tighten the oil pan drain plug to 35 ~ 45 N.m (26 ~ 33 lb-ft).

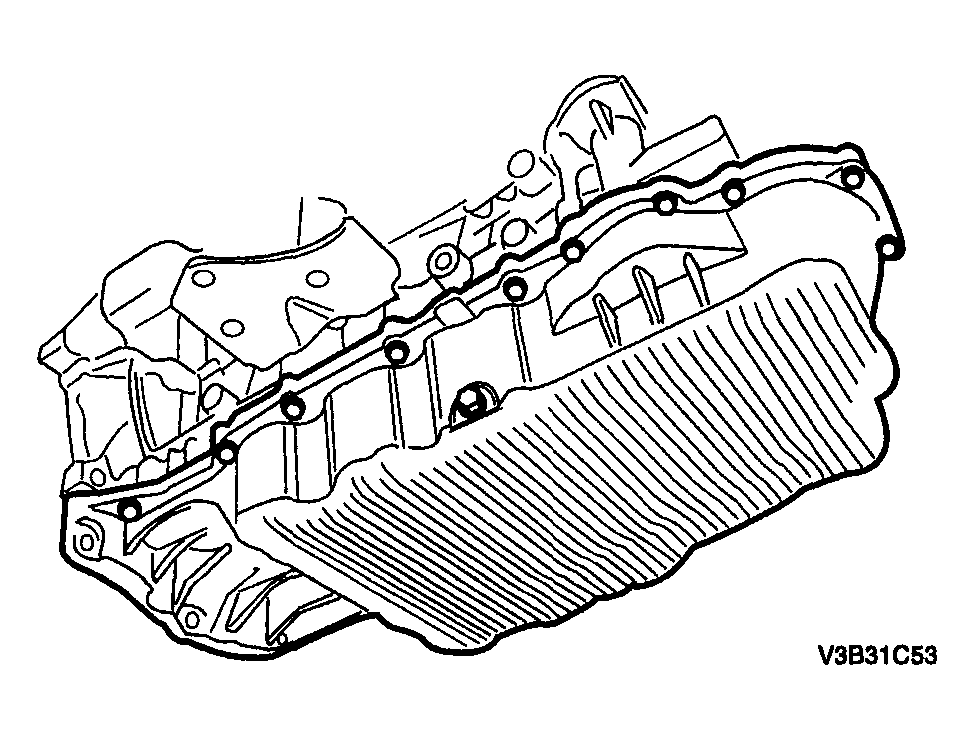

Fig 8: Installing Oil Pan Drain Plug
Courtesy of SUZUKI OF AMERICA CORP.
Refill the engine with engine oil.
Install the engine under cover.
Tighten

Tighten the engine under cover retaining bolts to 17 ~ 27 N.m (13 ~ 20 lb-ft).
