Exhaust Front Pipe Removal

Remove the exhaust lower bracket bolts.

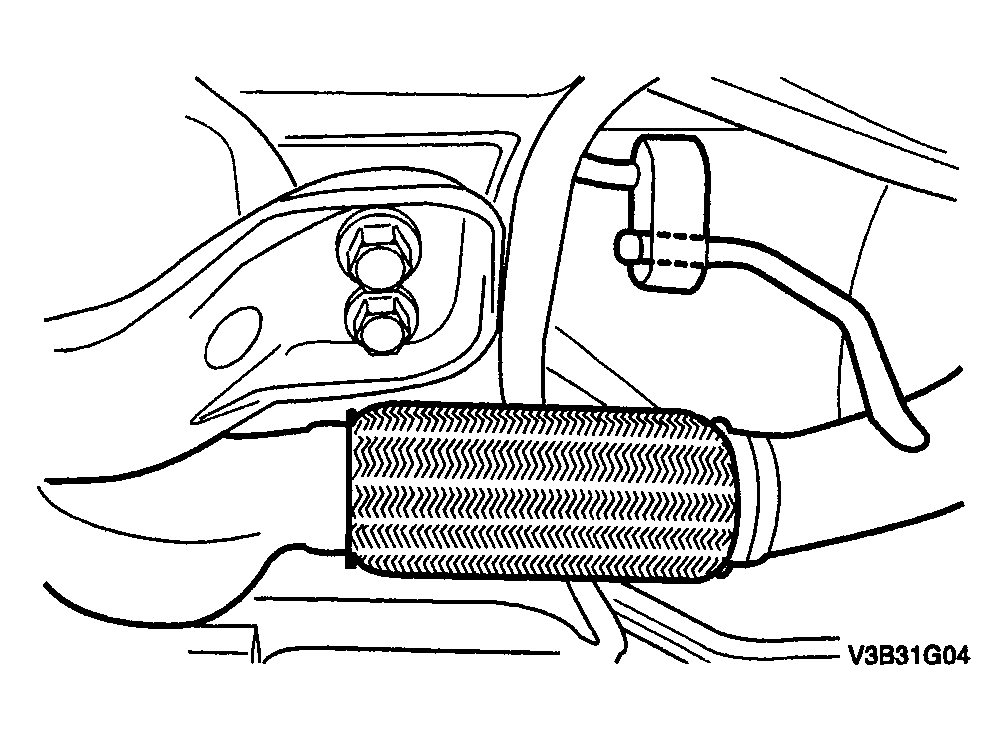

Fig 1: Removing Exhaust Lower Bracket Bolts
Courtesy of SUZUKI OF AMERICA CORP.
Remove the exhaust lower bracket.
Remove the exhaust front pipe nuts and the gasket.
Remove the exhaust front pipe to exhaust front muffler nuts and the gasket.

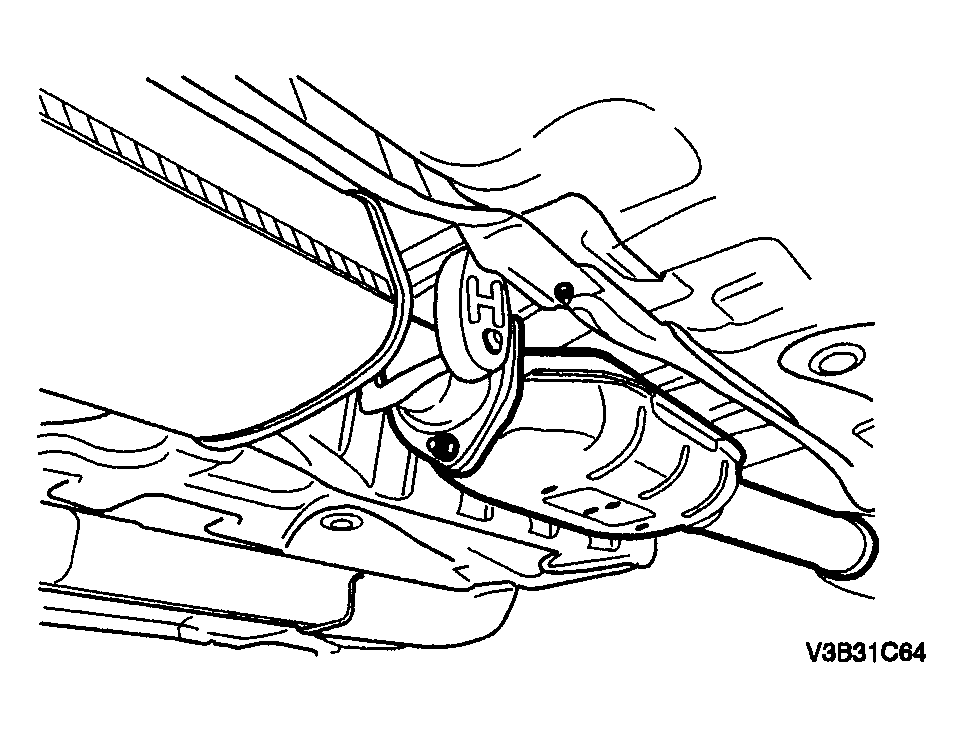

Fig 2: Removing Exhaust Front Pipe To Exhaust Front Muffler Nuts And Gasket
Courtesy of SUZUKI OF AMERICA CORP.
Disconnect the exhaust front pipe from the rubber hanger.
Remove the exhaust front pipe.
Clean the sealing surfaces on the front muffler pipe flange and the exhaust front pipe.
Check the exhaust front pipe for holes, damage, open seams, or other deterioration which could permit exhaust fumes to seep into the passenger compartment.

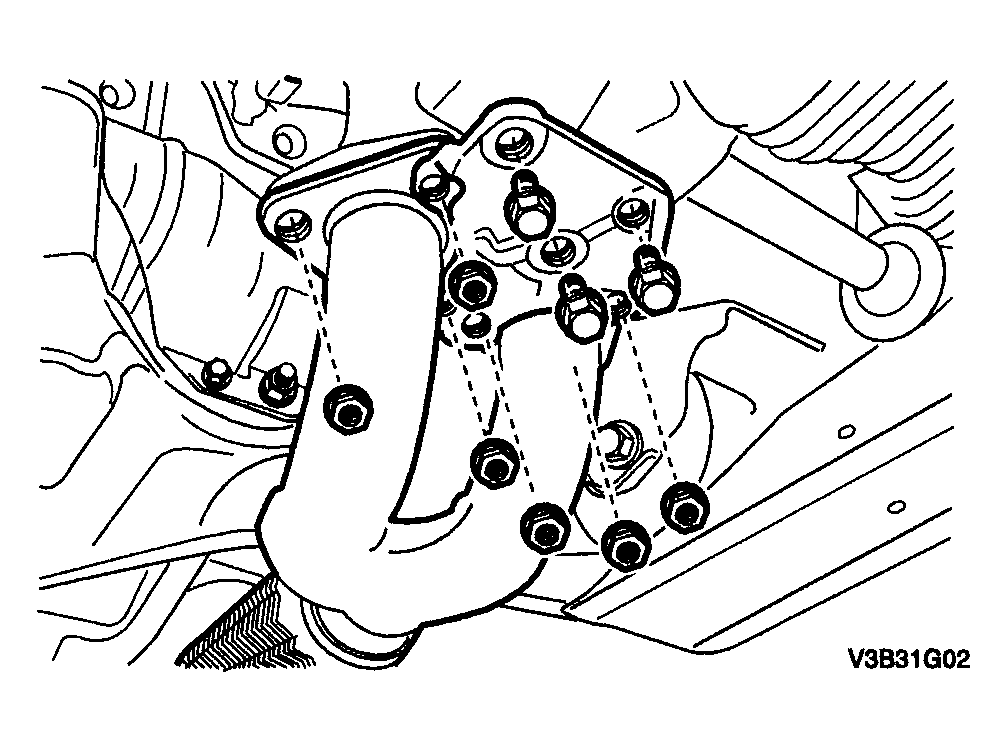

Fig 3: Removing Exhaust Front Pipe
Courtesy of SUZUKI OF AMERICA CORP.
