Exhaust Front Pipe Installation

Install the exhaust front pipe and the gasket.
Install the exhaust front muffler to exhaust front pipe nuts.
Tighten

Tighten the front muffler to exhaust front pipe nuts to 30 N.m (22 lb-ft).

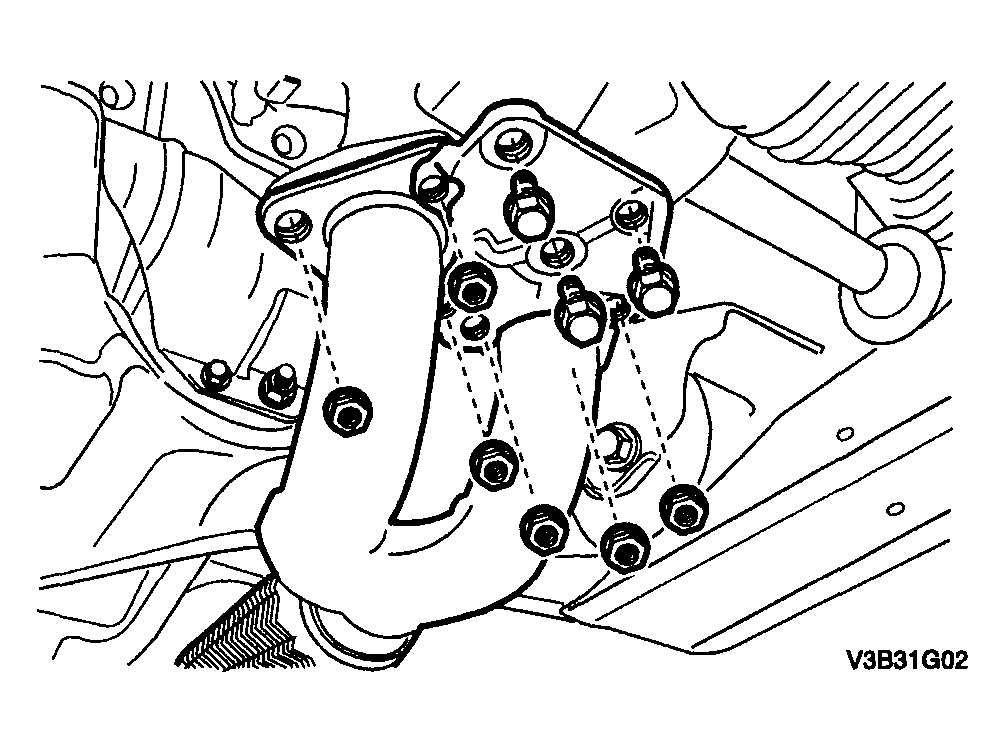

Fig 1: Installing Exhaust Front Muffler To Exhaust Front Pipe Nuts
Courtesy of SUZUKI OF AMERICA CORP.
Connect the exhaust front pipe from the rubber hanger.

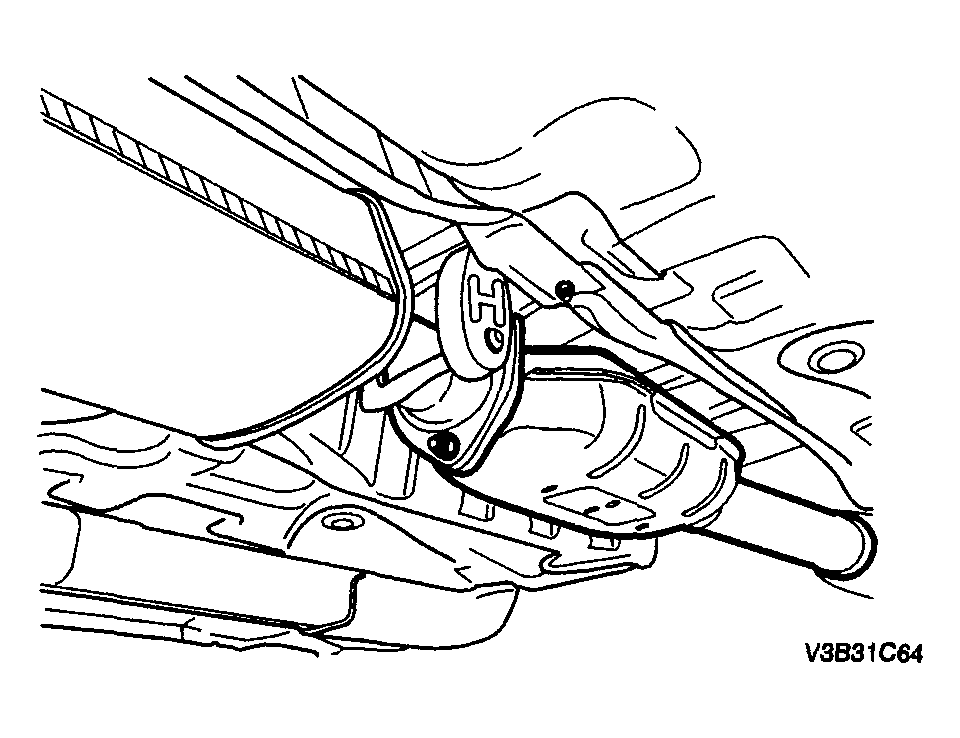

Fig 2: Connecting Exhaust Front Pipe To Rubber Hanger
Courtesy of SUZUKI OF AMERICA CORP.
Install the exhaust lower bracket.
Install the exhaust lower bracket bolts.
Tighten

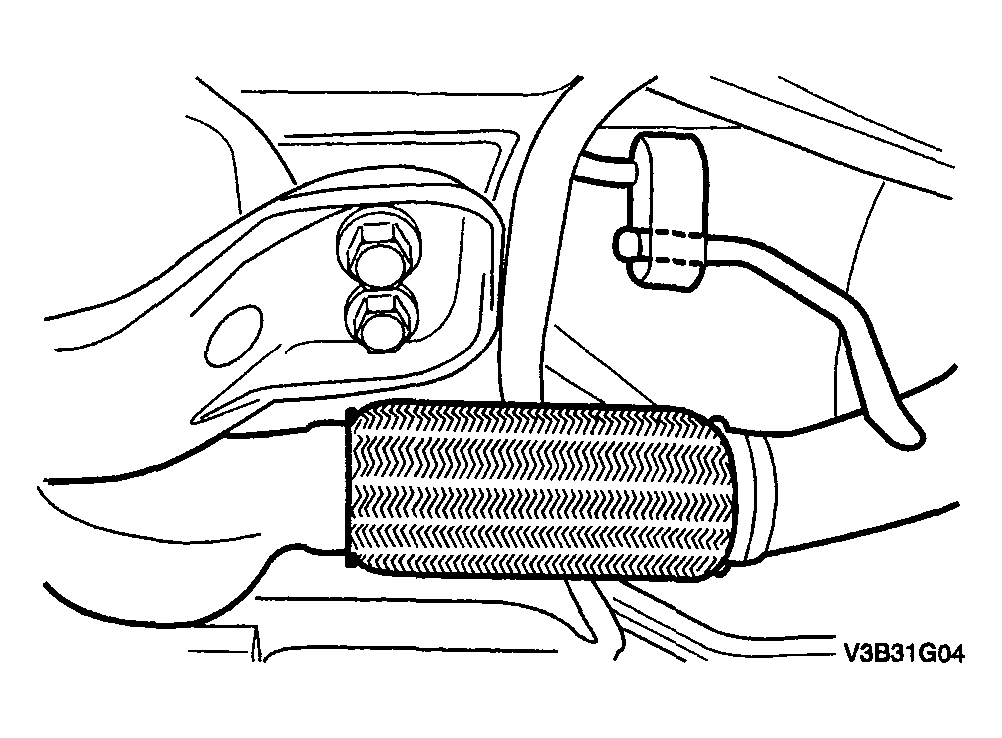

Fig 3: Installing Exhaust Lower Bracket Bolts
Courtesy of SUZUKI OF AMERICA CORP.

Tighten the exhaust lower bracket bolts to 40 N.m (30 lb-ft).
Install the exhaust front pipe nuts and the gasket.
Tighten

Tighten the exhaust front pipe nuts to 40 N.m (30 lb-ft).
