Digital Clock Wiring System Diagram

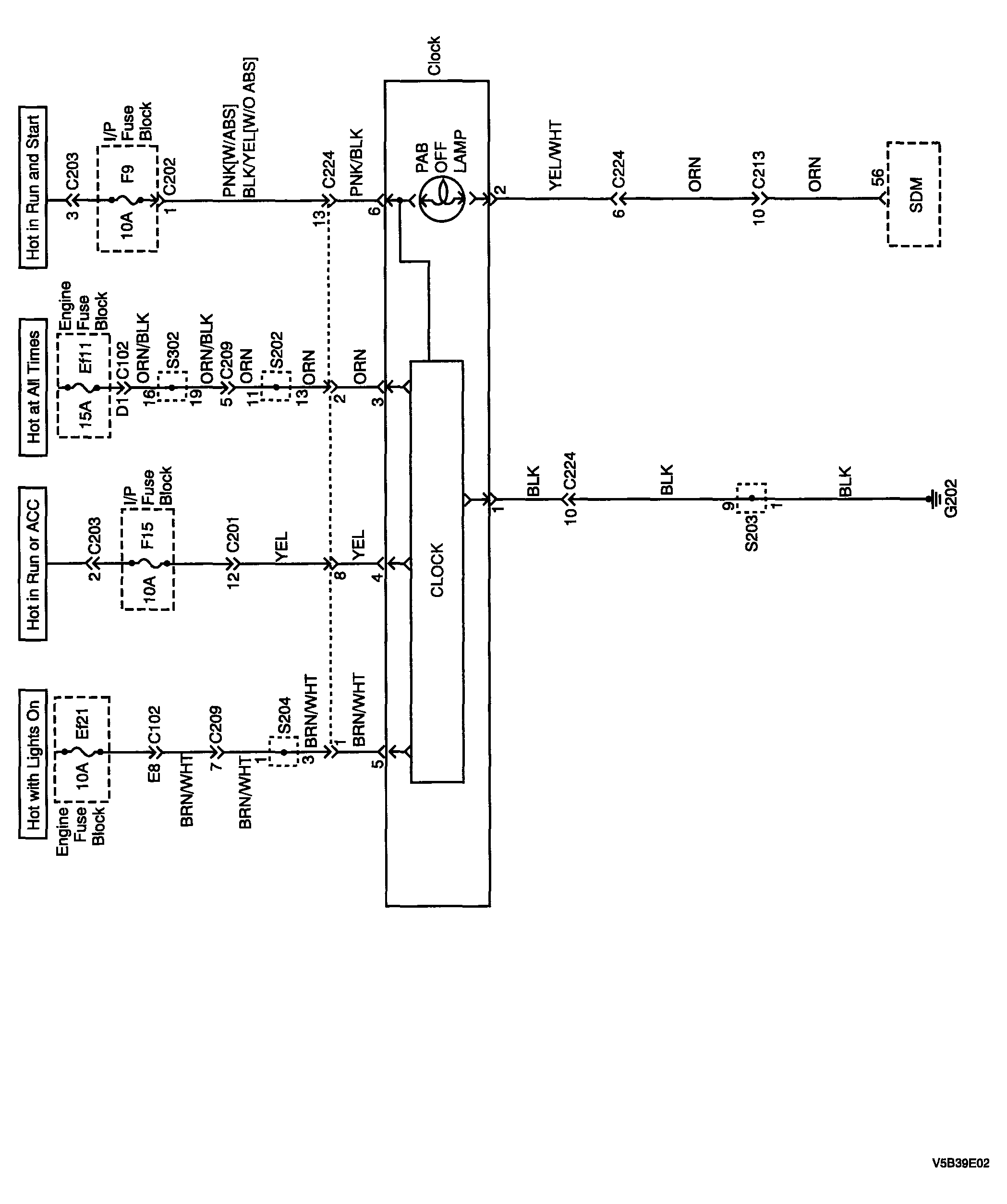

Fig 1: Digital Clock Wiring System Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
