Dual Horns Installation

CAUTION: Dissimilar metals in direct contact with each other may corrode rapidly. Make sure to use the correct fasteners to prevent premature corrosion.
  1. Install the horn with the bolt.

    Tighten

    Tighten the horn bolt to 20 N.m (15 lb-in).

  2. Connect the electrical connector.
  3. Connect the negative battery cable.

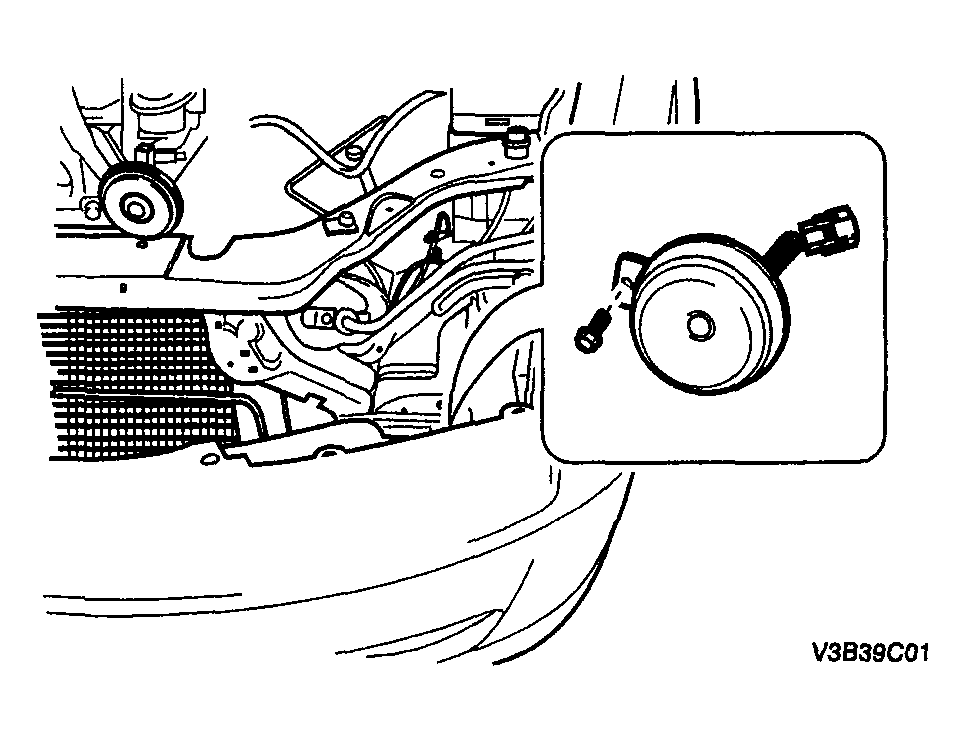

    Fig 1: Installing Horn With Bolt
    G04096185Courtesy of SUZUKI OF AMERICA CORP.
