TCS Active Lamp Inoperative / No DTC Set: Notes

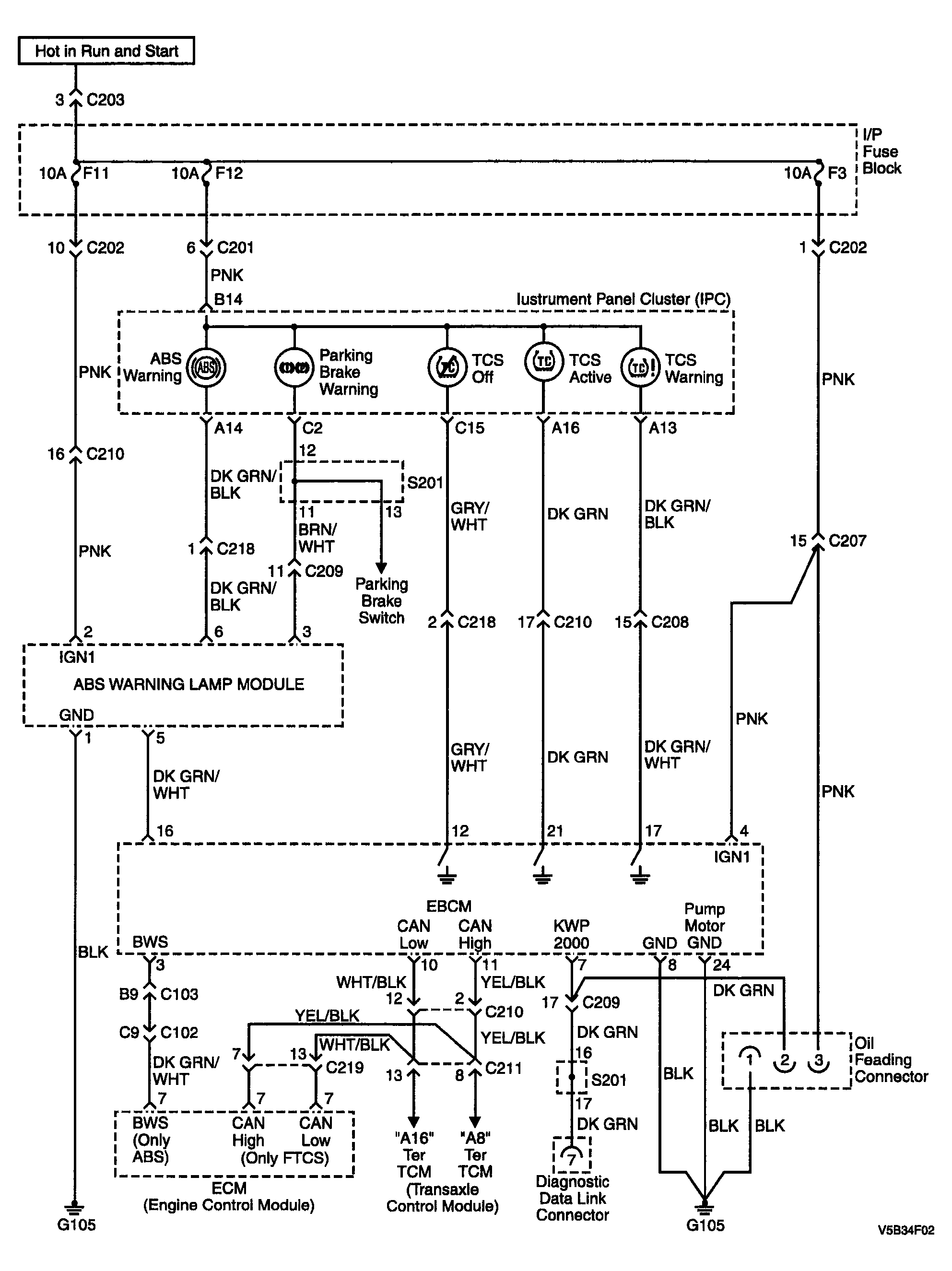

Fig 1: TCS Active Lamp Inoperative / No DTC Set - Circuit Diagram
G04095289Courtesy of SUZUKI OF AMERICA CORP.
