Diagnostic Circuit Check: Notes

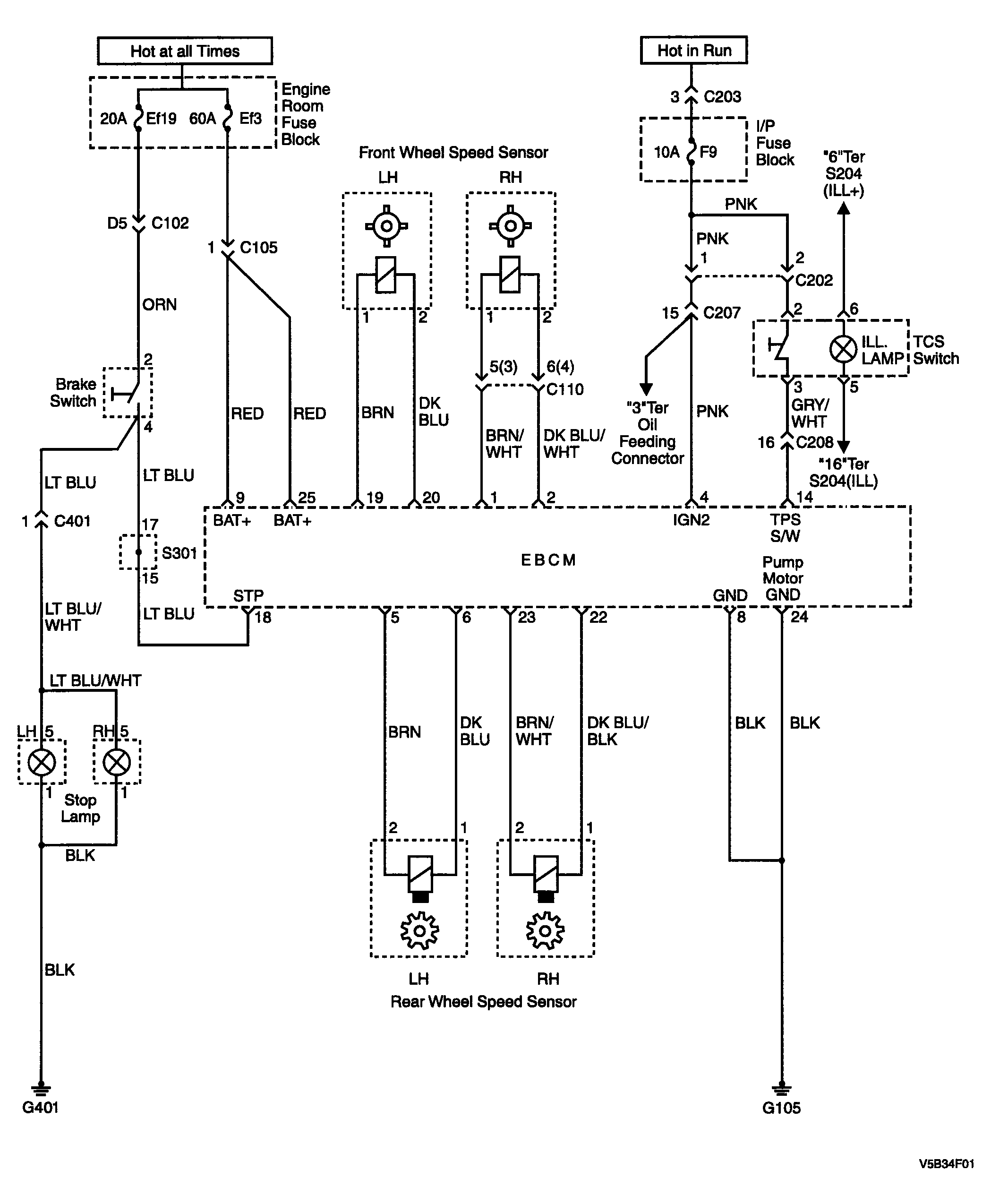

Fig 1: Diagnostic Circuit Check - Circuit Diagram (1 Of 2)
G04095282Courtesy of SUZUKI OF AMERICA CORP.

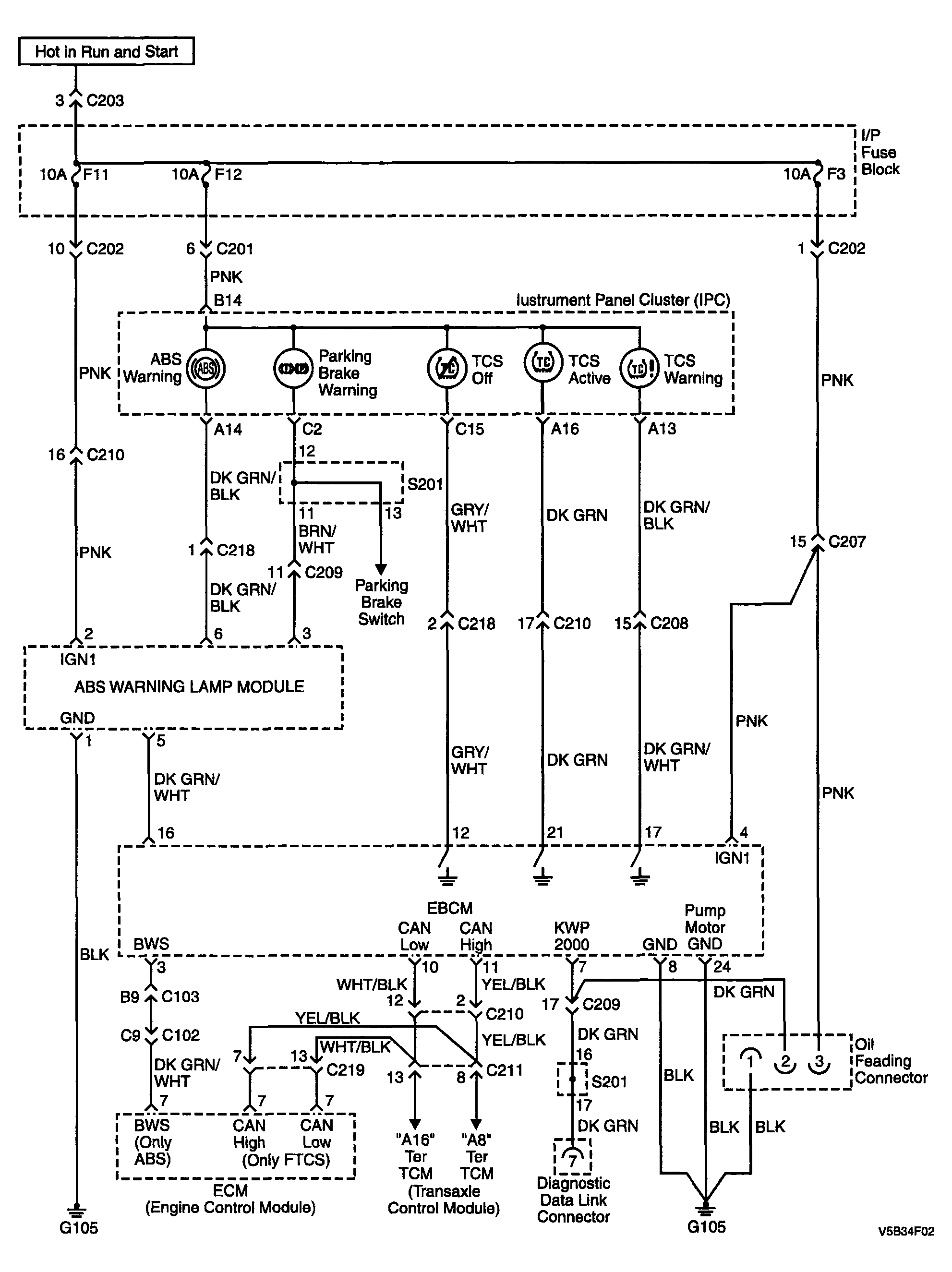

Fig 2: Diagnostic Circuit Check - Circuit Diagram (2 Of 2)
G04095283Courtesy of SUZUKI OF AMERICA CORP.
