Power Sunroof Installation

CAUTION: Dissimilar metals in direct contact with each other may corrode rapidly. A/lake sure to use the correct fasteners to prevent premature corrosion.

Install the glass to the frame with the screws.

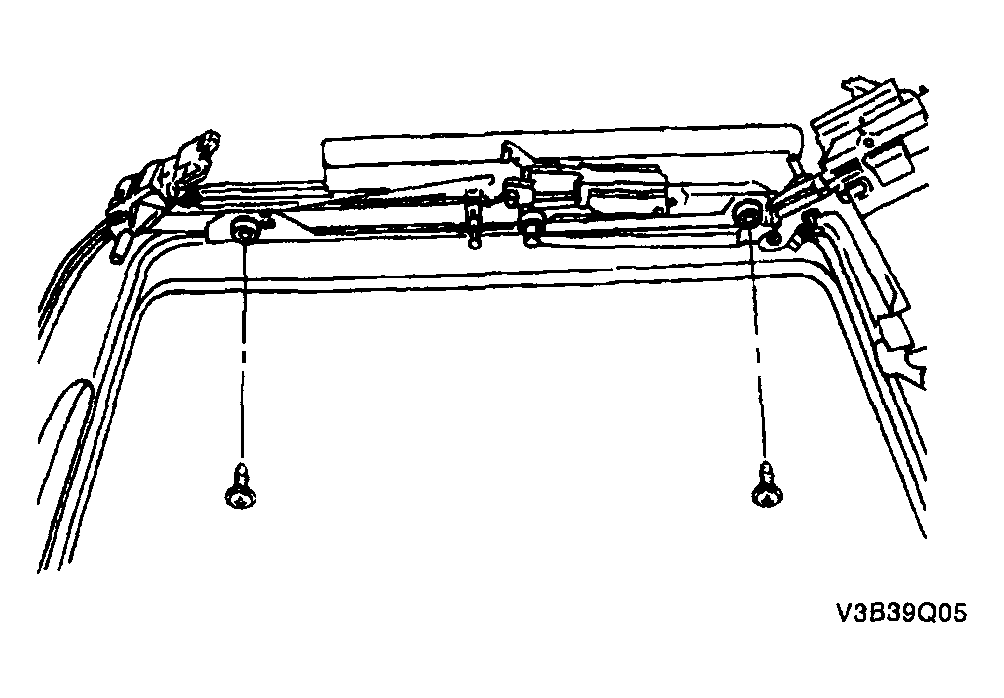

Fig 1: Installing Glass To Frame With Screws
Courtesy of SUZUKI OF AMERICA CORP.
Install the plastic trim.
Install the glass and the frame to the housing.
Install the shade.
Install the glass stops.
Install the shade stops.
Install the drain nozzles.
Install the rubber end caps.

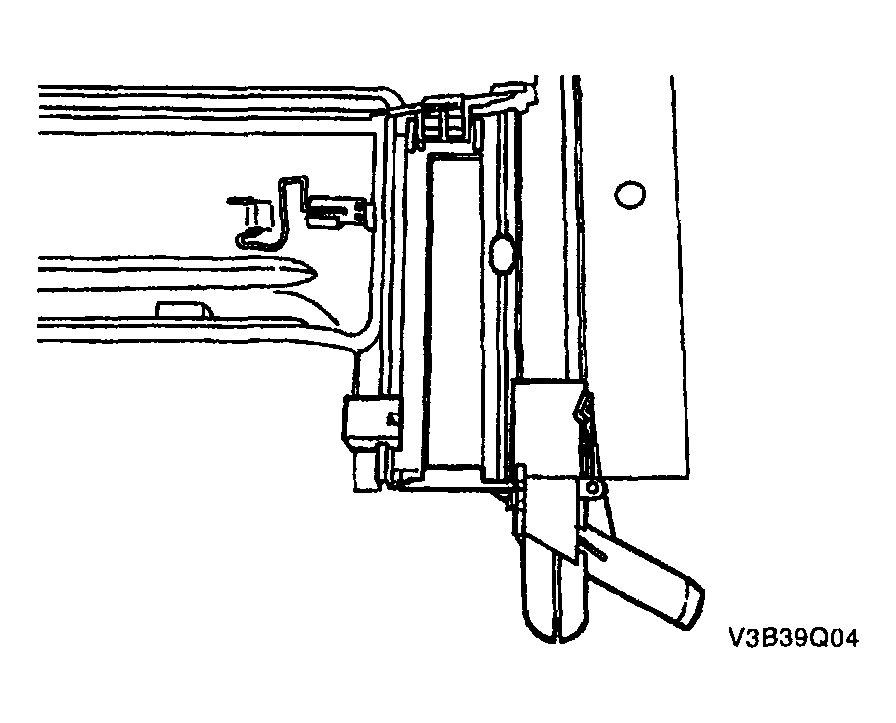

Fig 2: Installing Rubber End Caps
Courtesy of SUZUKI OF AMERICA CORP.
Install the housing to the roof of the vehicle with the bolts.
Tighten

Tighten the sunroof housing bolts to 10 N.m (89 lb-in).

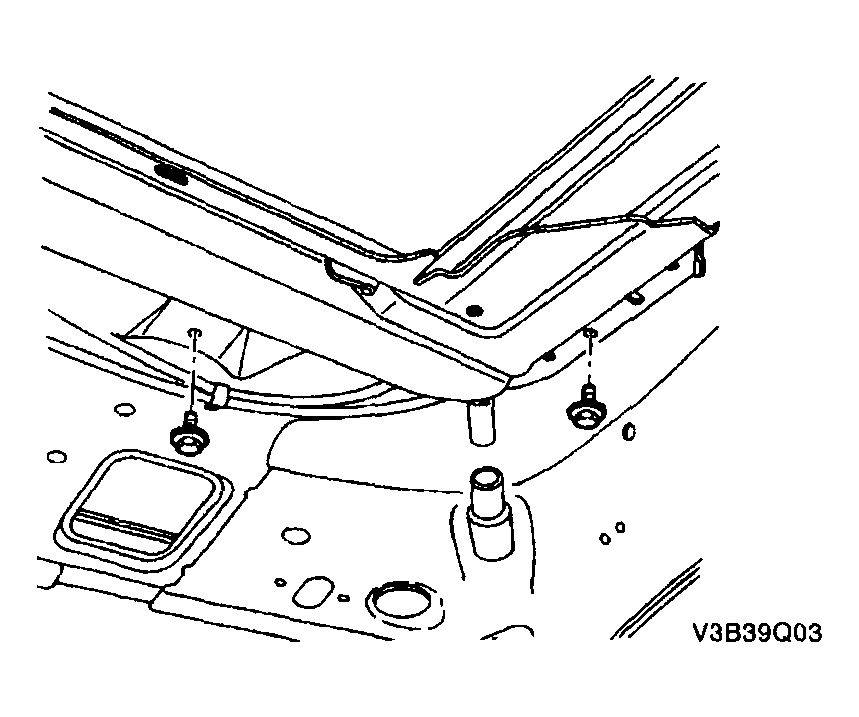

Fig 3: Installing Housing To Roof Of Vehicle With Bolts
Courtesy of SUZUKI OF AMERICA CORP.
Install the motor control module.
Install the motor with the screws.
Tighten

Tighten the sunroof motor screws to 3 N.m (27 lb-in).
Connect the electrical connectors.

Fig 4: Installing Motor Control Module
Courtesy of SUZUKI OF AMERICA CORP.
Install the drain hoses.
Install the headliner. Refer to "FORMED HEADLINER REMOVAL ".
Connect the negative battery cable.

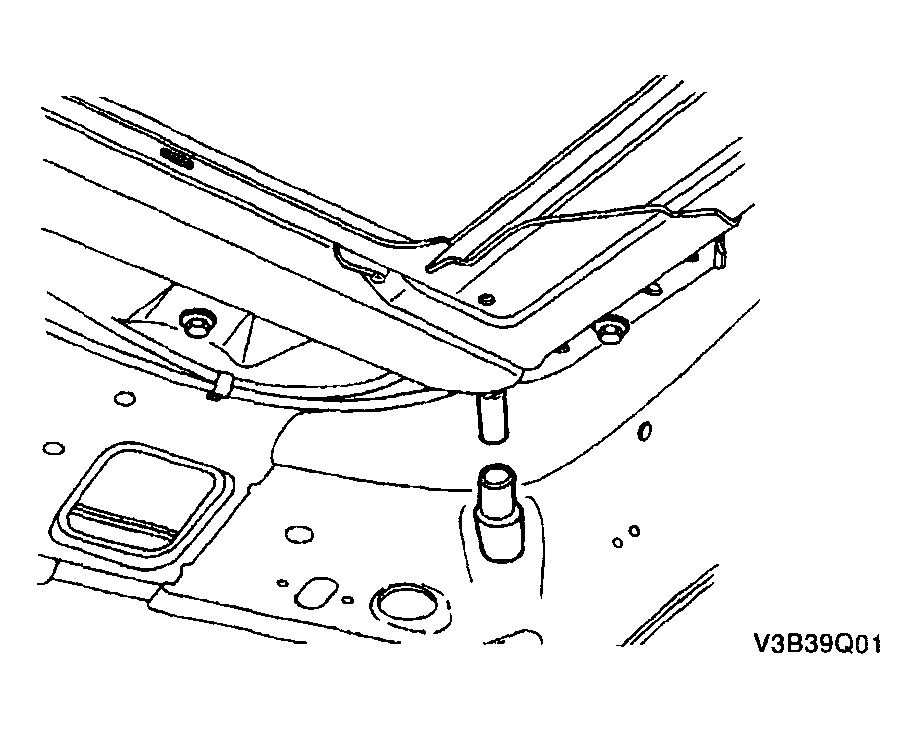

Fig 5: Installing Drain Hoses
Courtesy of SUZUKI OF AMERICA CORP.
