Power Sunroof Control Switch Installation
- Connect the electrical connector.CAUTION: Dissimilar metals in direct contact with each other may corrode rapidly. Make sure to use the correct fasteners to prevent premature corrosion.

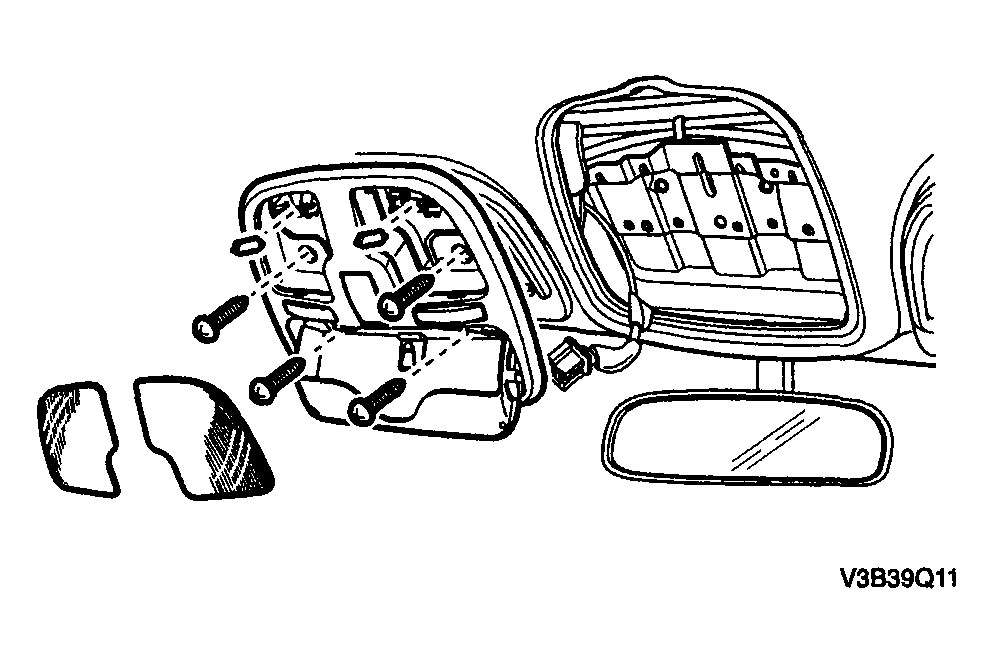

- Install the sunroof control switch with the screws.
Tighten
Tighten the power sunroof control switch screws to 2 N.m (18 lb-in).
- Install the interior courtesy lamp lens.
- Connect the negative battery cable.
