Split Rear Seatback Lock Striker Installation
CAUTION:
Dissimilar metals in direct contact with each other may corrode rapidly. Make sure to use the correct fasteners to prevent premature corrosion.

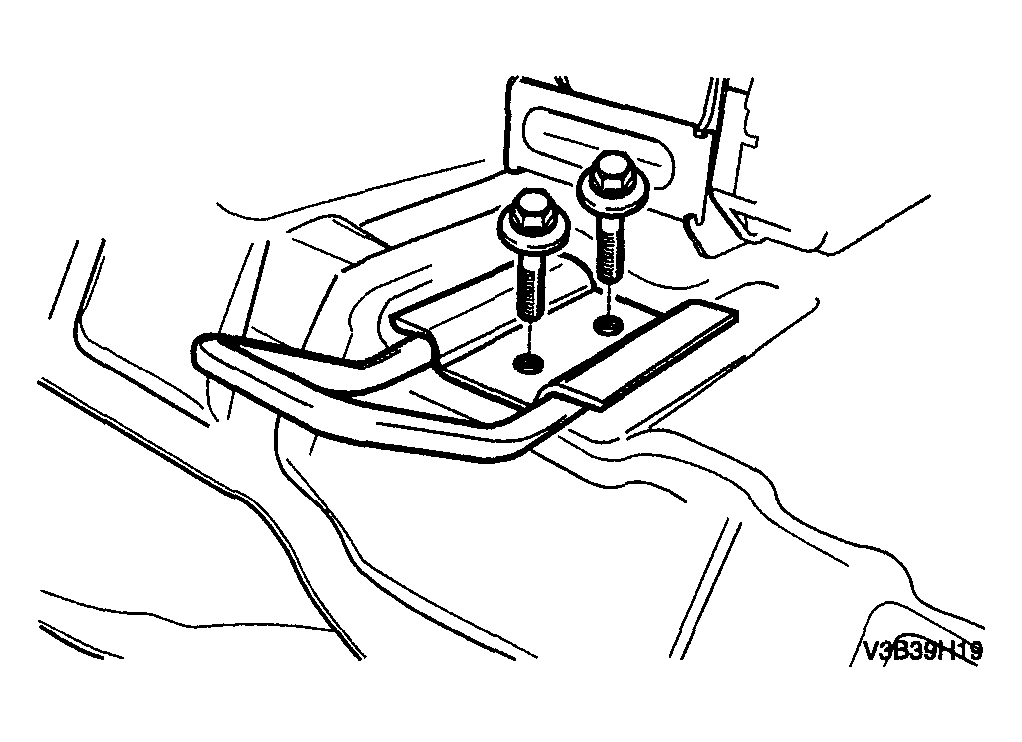

- Install the seatback lock strikers with the bolts.
Tighten
Tighten the rear seatback lock striker bolts to 25 N.m (18 lb-ft).
- Install the back panel trim cover with the retaining clips.
- Install the rear seat side bolster cushion. Refer to "REAR SEAT SIDE BOLSTER CUSHION INSTALLATION ".
- Raise and secure the rear seatbacks in the upright position.
