Wiper Lever Removal

  1. Disconnect the negative battery cable.
  2. Remove the upper and the lower steering column cover panel screws.
  3. Remove the upper and the lower steering column cover panels.

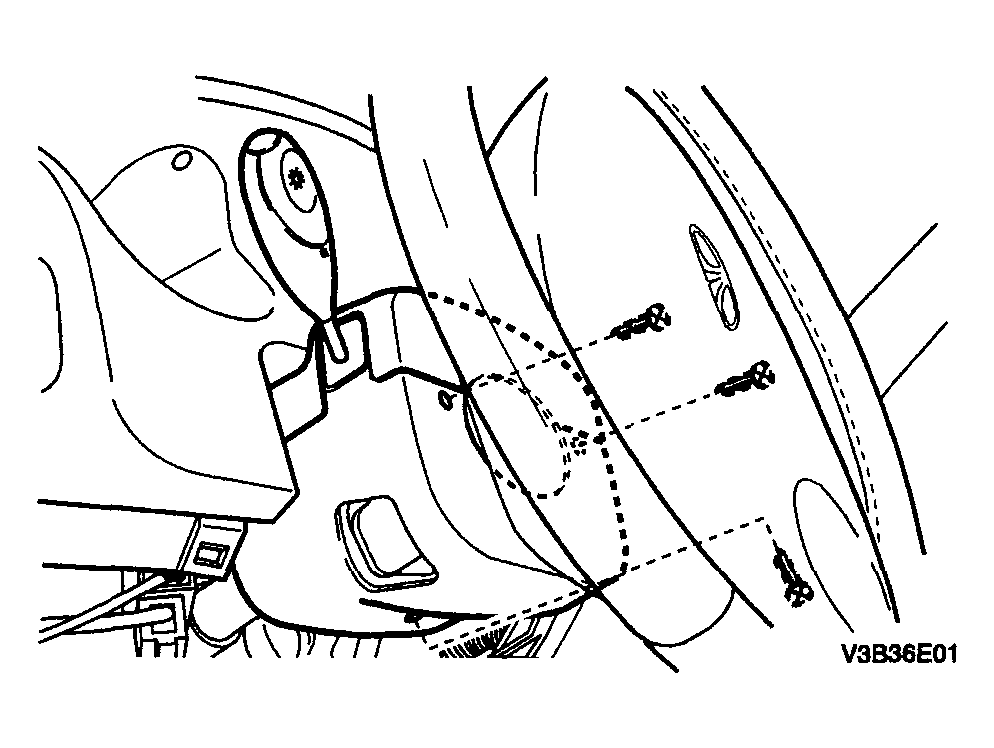

    Fig 1: Removing Upper And Lower Steering Column Cover Panel Screws
    G04095578Courtesy of SUZUKI OF AMERICA CORP.
  4. Remove the wiper switch by pushing in on the tabs on the top and the bottom of the switch housing.

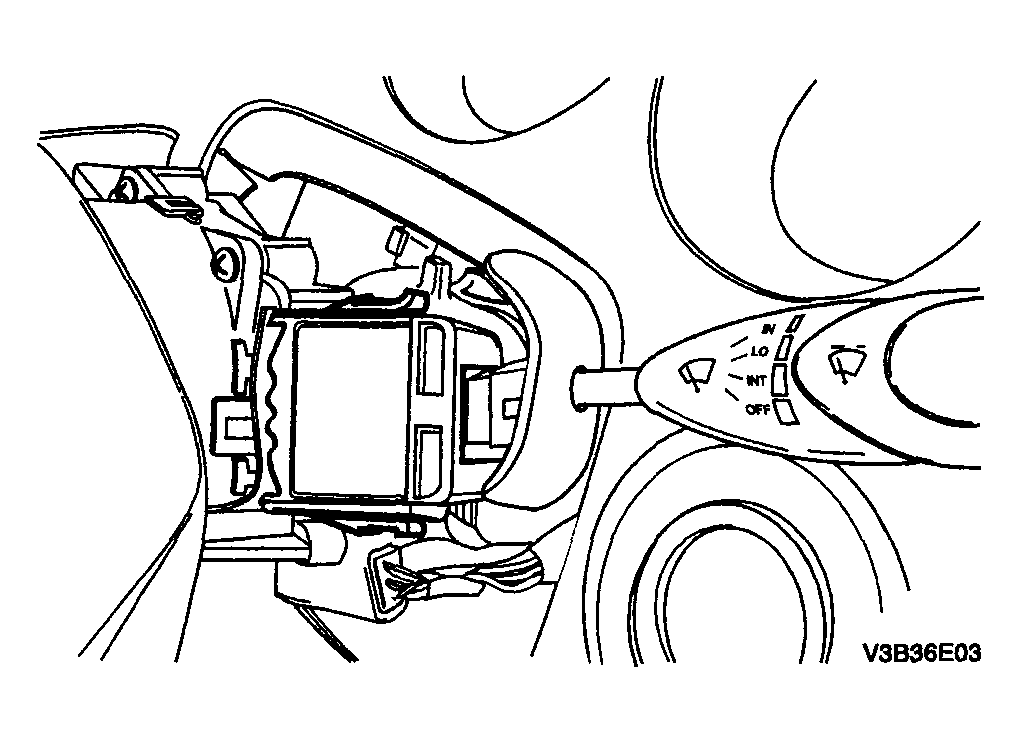

    Fig 2: Removing Turn Signal Switch By Pushing Tabs On Top And Bottom Of Switch Housing
    G04095579Courtesy of SUZUKI OF AMERICA CORP.
  5. Disconnect the electrical connectors from the wiper switch. Disconnect the cruise control connector, if equipped.

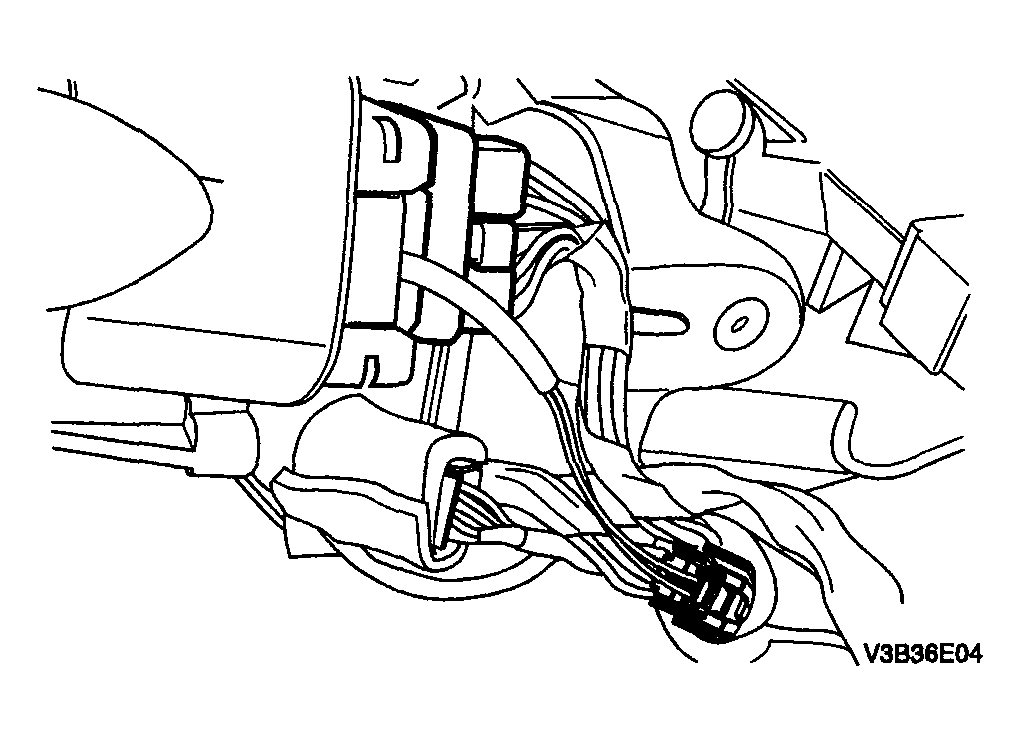

    Fig 3: Disconnecting Electrical Connectors From Wiper Switch
    G04095580Courtesy of SUZUKI OF AMERICA CORP.
