Headlamp / Turn Signal Switch and Lever Removal

  1. Disconnect the negative battery cable.
  2. Remove the upper and the lower steering column cover panel screws.
  3. Remove the upper and the lower steering column cover panels.

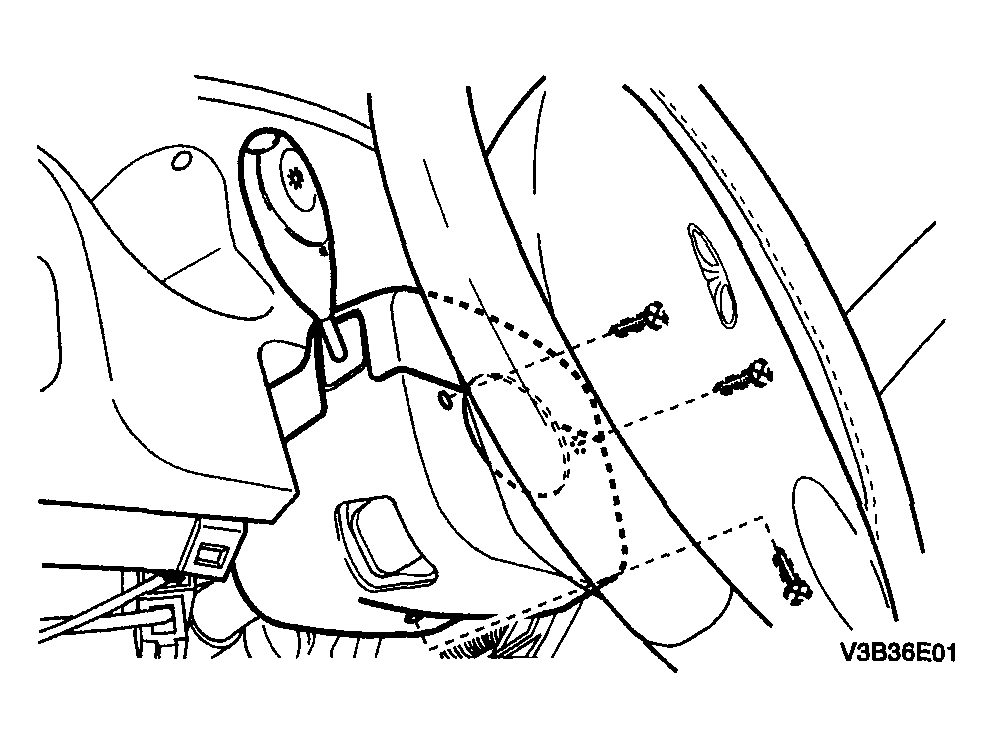

    Fig 1: Removing Upper And Lower Steering Column Cover Panel Screws
    G04095574Courtesy of SUZUKI OF AMERICA CORP.
  4. Remove the turn signal switch by pushing in on the tabs on the top and the bottom of the switch housing.
  5. Disconnect the electrical connections from the turn signal switch.

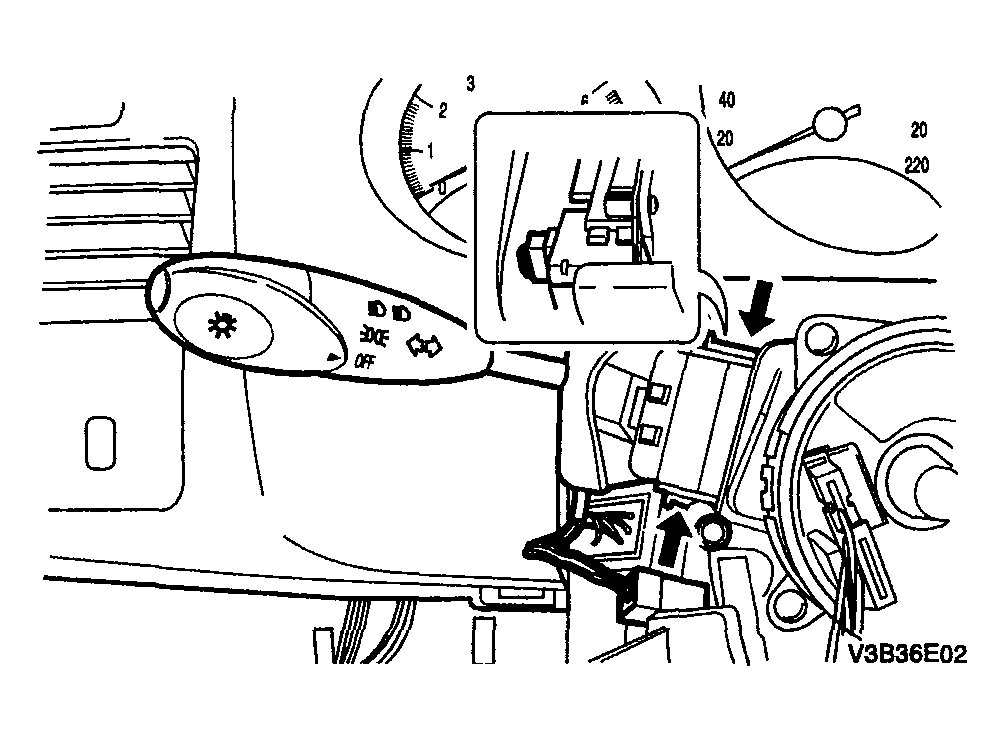

    Fig 2: Removing Turn Signal Switch By Pushing Tabs On Top And Bottom Of Switch Housing
    G04095575Courtesy of SUZUKI OF AMERICA CORP.
