Headlamp / Turn Signal Switch and Lever Installation

Connect the electrical connections to the turn signal switch.
Install the turn signal switch by snapping it into the switch housing.

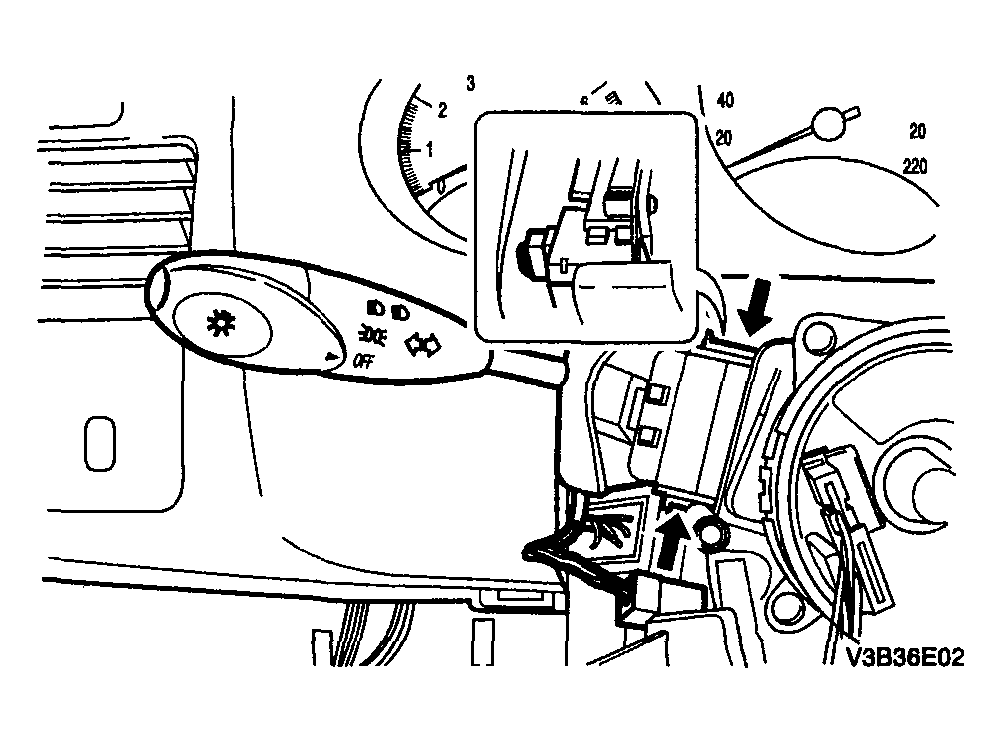

Fig 1: Installing Turn Signal Switch By Snapping Into Switch Housing
Courtesy of SUZUKI OF AMERICA CORP.
Install the upper and the lower steering column cover panels. Install the upper and the lower steering column cover panel screws.
Tighten

Tighten the upper and the lower steering column cover panel screws to 2.5 N.m (22 lb-in).
Connect the negative battery cable.

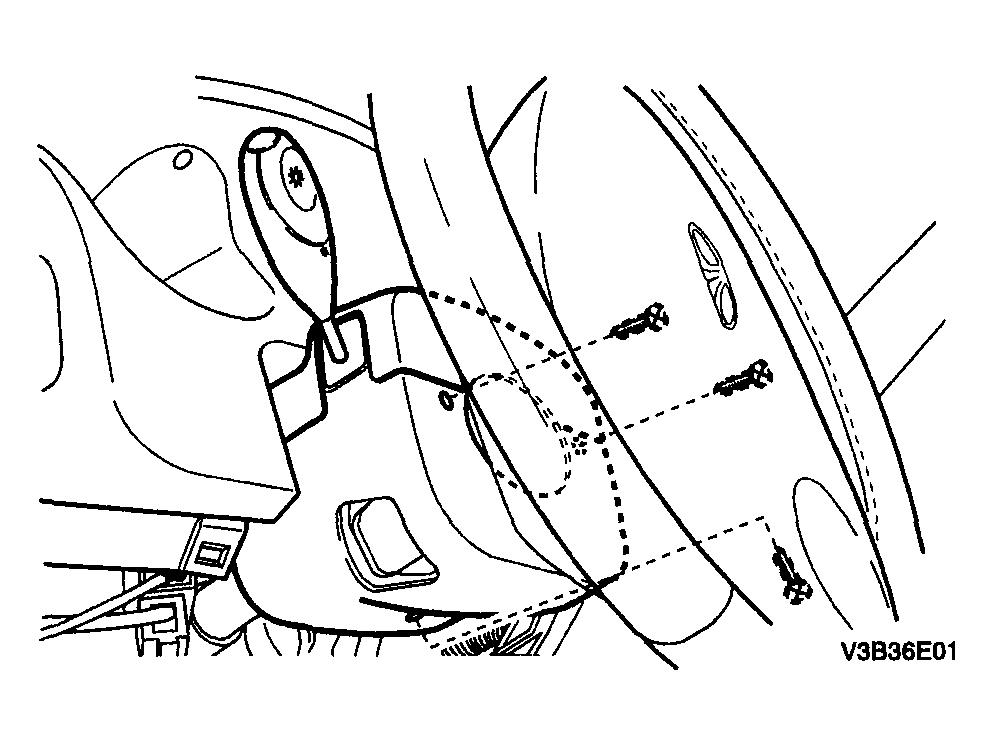

Fig 2: Installing Upper And Lower Steering Column Cover Panel Screws
Courtesy of SUZUKI OF AMERICA CORP.
