Power Windows Diagram

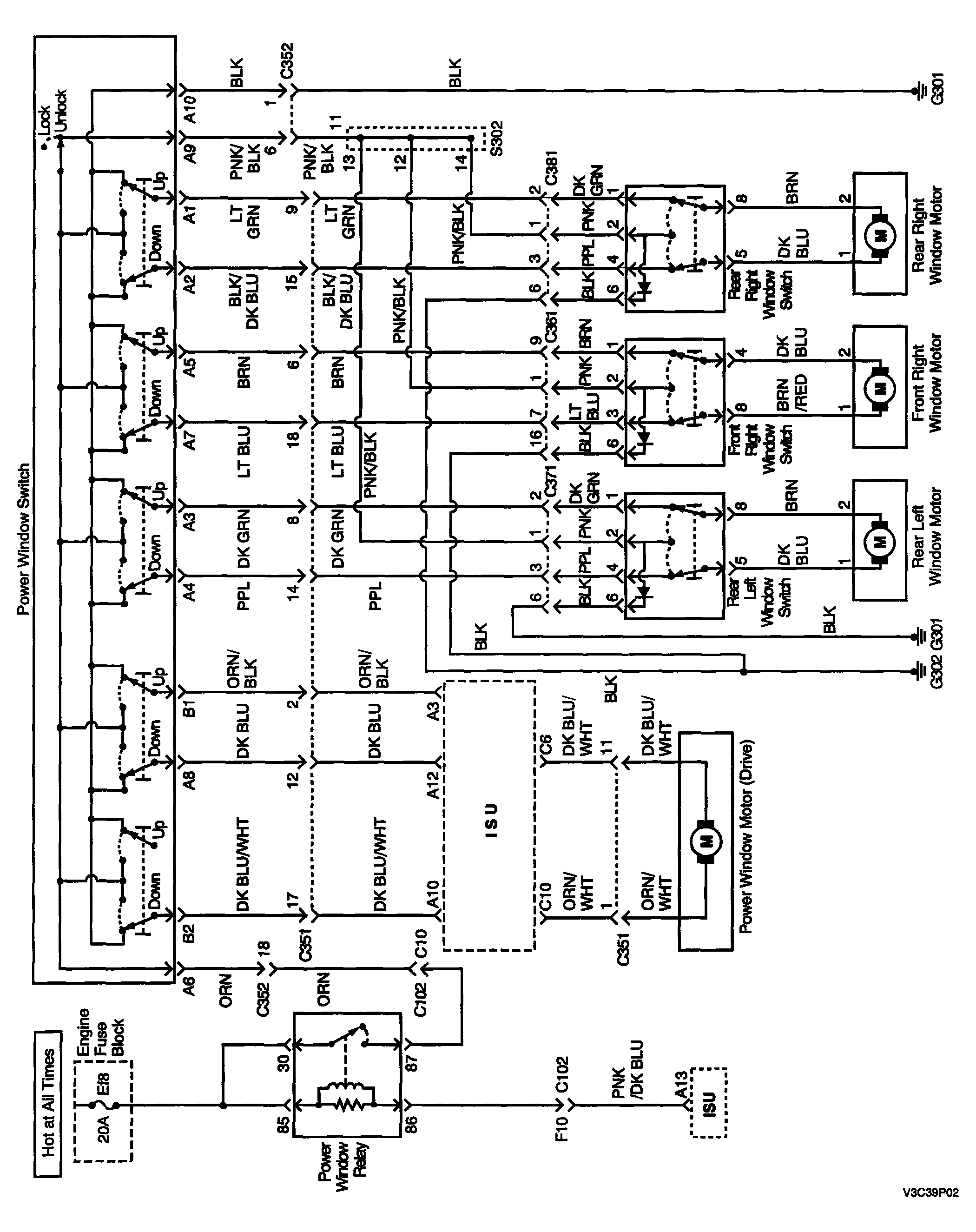

Fig 1: Power Windows Diagram (1 Of 2)
G04096205Courtesy of SUZUKI OF AMERICA CORP.

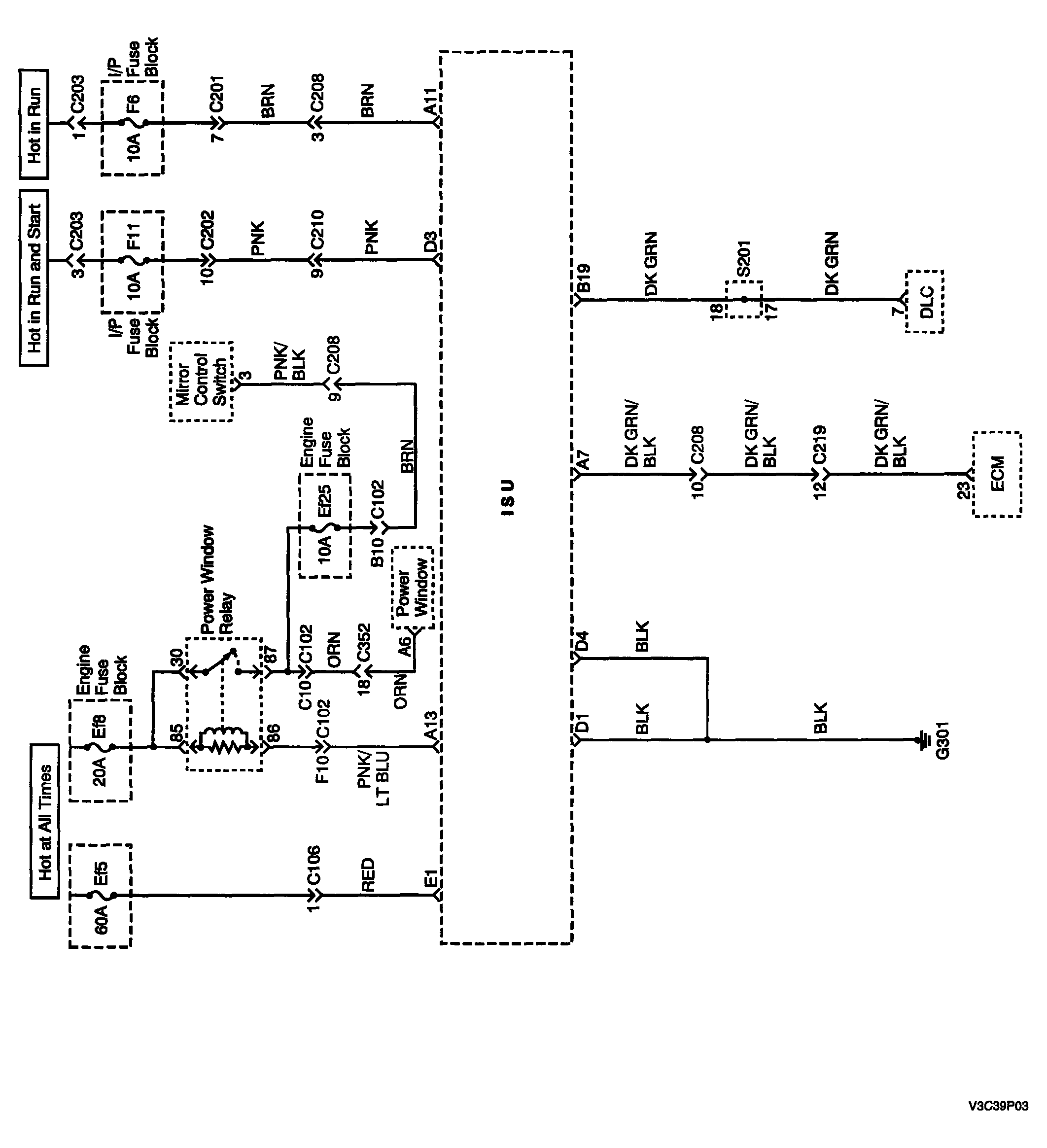

Fig 2: Power Windows Diagram (2 Of 2)
G04096206Courtesy of SUZUKI OF AMERICA CORP.
