Electric Control OSRV (Outside Rear View) Mirror System Diagram

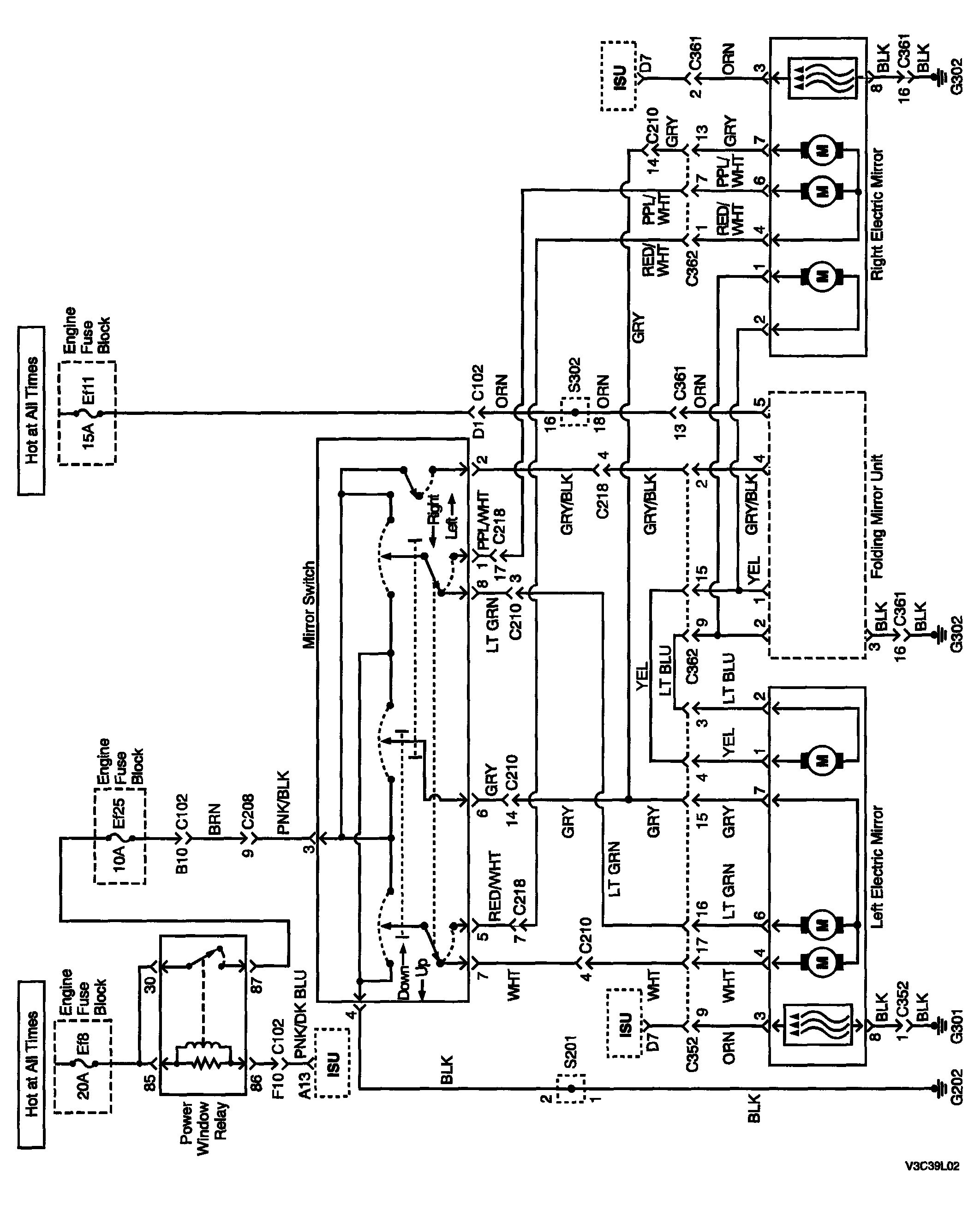

Fig 1: Electric Control OSRV Mirror System Diagram
G04096208Courtesy of SUZUKI OF AMERICA CORP.
