Rear Door Quarter Window Removal

  1. Remove the rear door glass. Refer to "REAR DOOR GLASS REMOVAL ".
  2. Remove the bolts and the screw from the rear door quarter window guide rail.
  3. Remove the guide rail and the rear door quarter window.

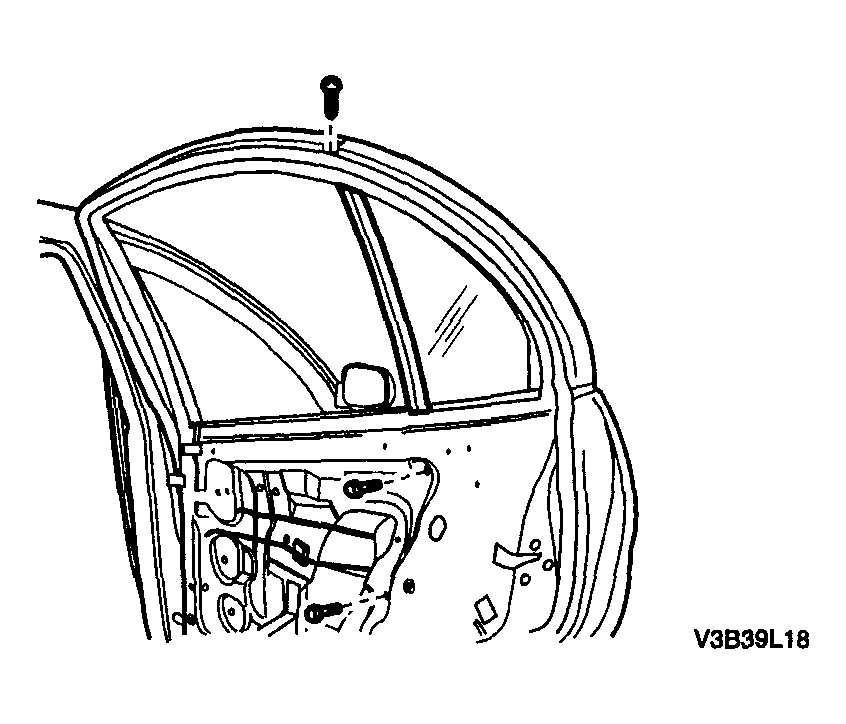

    Fig 1: Removing Guide Rail And Rear Door Quarter Window
    G04096245Courtesy of SUZUKI OF AMERICA CORP.
