Rear Door Quarter Window Installation

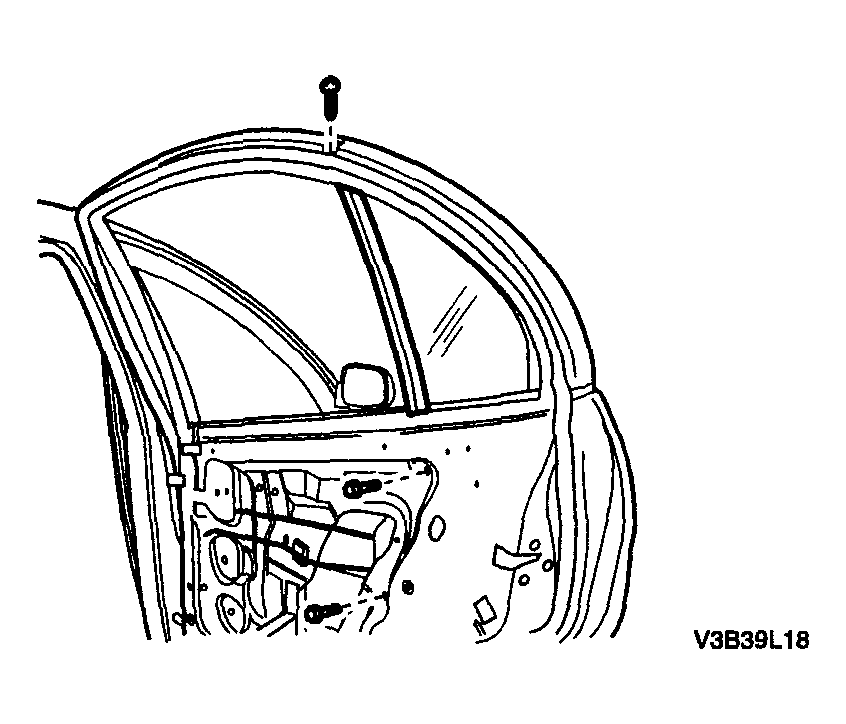

- Install the guide rail and the rear door quarter window.CAUTION: Dissimilar metals in direct contact with each other may corrode rapidly. Make sure to use the correct fasteners to prevent premature corrosion.
- Install the rear door quarter window guide rail bolts and the screw.
Tighten
Tighten the guide rail bolts to 7 N.m (62 lb-in).
Tighten the guide rail screw to 4 N.m (35 lb-in).
- Install the rear door glass. Refer to "REAR DOOR GLASS INSTALLATION ".
