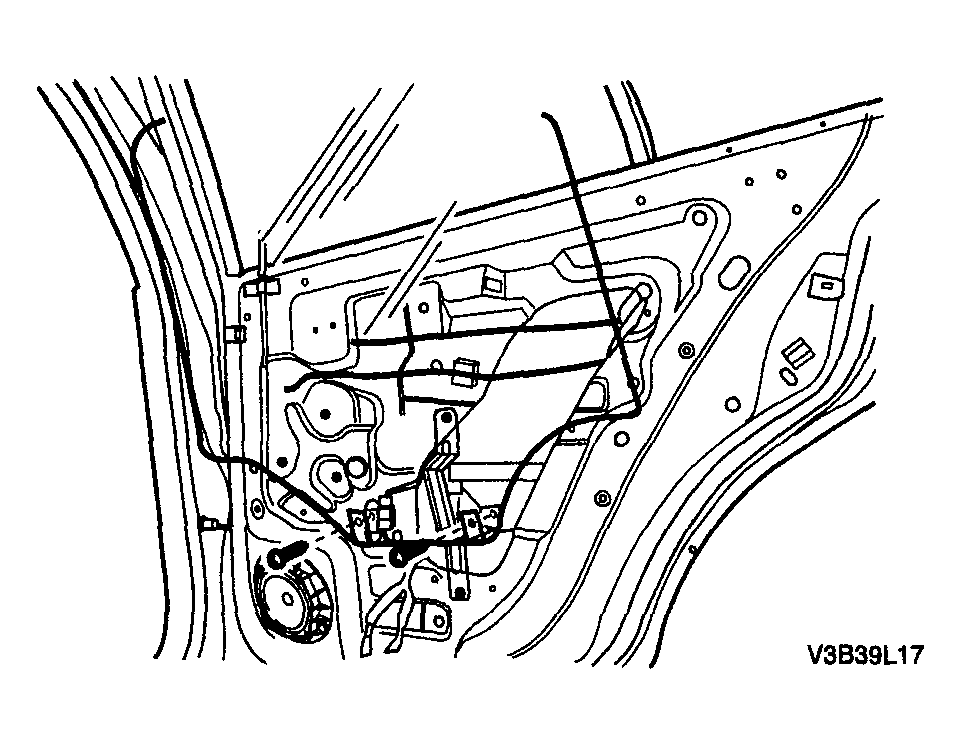

Rear Door Glass Installation
- Install the glass in the door and position the glass within the window regulator.CAUTION: Dissimilar metals in direct contact with each other may corrode rapidly. Make sure to use the correct fasteners to prevent premature corrosion.
- Install the glass screws.
Tighten
Tighten the glass screws to 7 N.m (62 lb-in).
- Install the exterior B-pillar molding. Refer to "B-PILLAR MOLDING INSTALLATION ".
- Install the door seal trim. Refer to "DOOR SEAL TRIM INSTALLATION ".
