Outside Rearview Mirrors Removal

  1. Remove the front door escutcheon.
  2. Disconnect the mirror electrical connector if the mirror is electronically controlled.
  3. Remove the bolts and the outside rearview mirror assembly from the door.

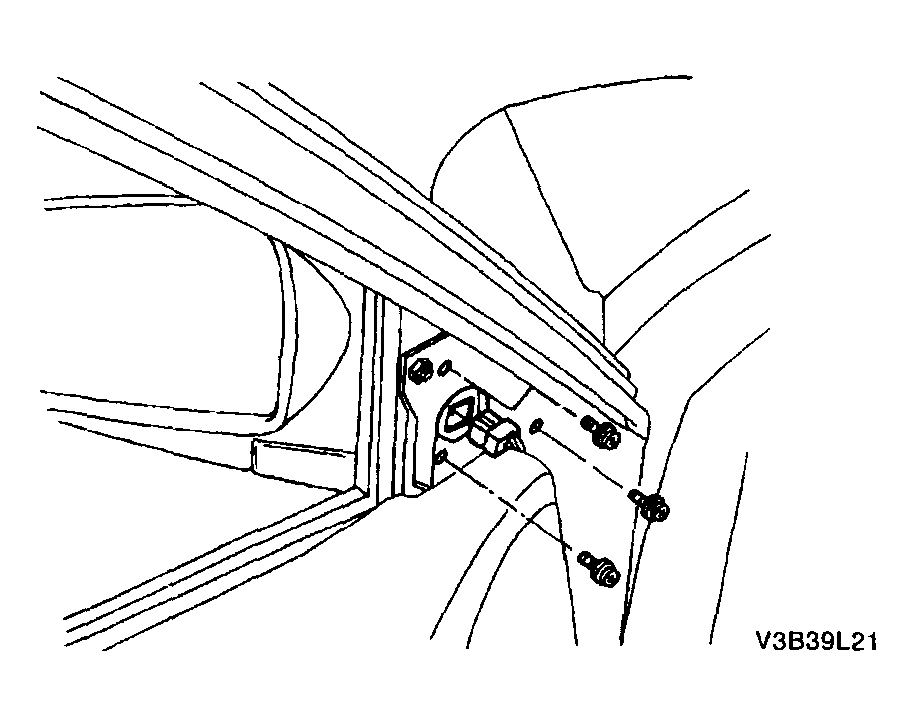

    Fig 1: Removing Bolts And Outside Rearview Mirror Assembly From Door
    G04096249Courtesy of SUZUKI OF AMERICA CORP.
