Front Door Glass Removal

  1. Remove the door seal trim. Refer to "DOOR SEAL TRIM REMOVAL ".
  2. Remove the B-pillar molding. Refer to "B-PILLAR MOLDING REMOVAL ".
  3. Remove the screws that secure the glass to the window regulator.
  4. Remove the glass from the door.

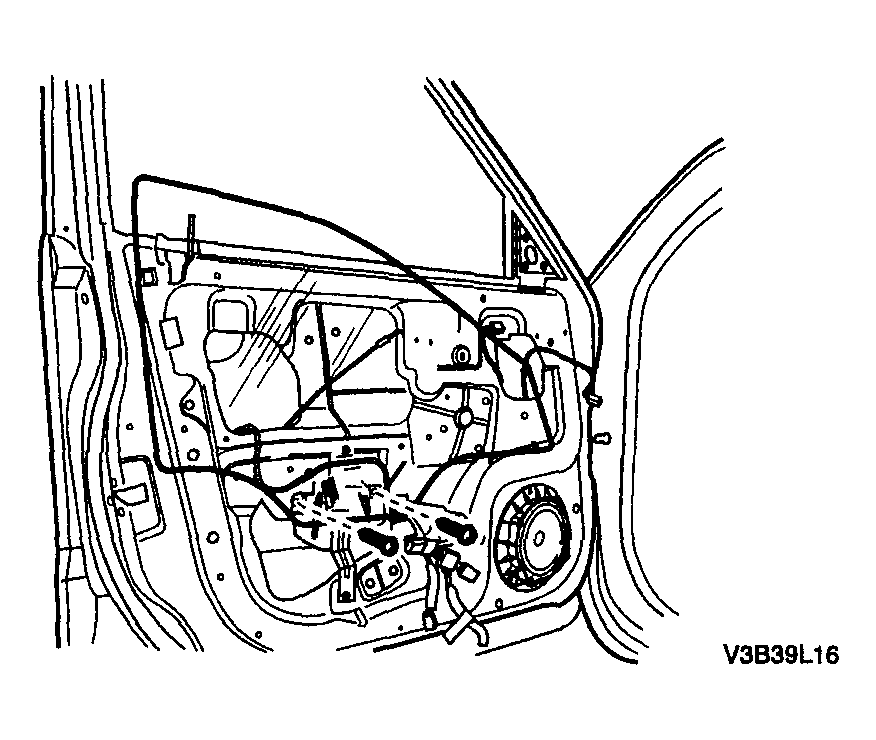

    Fig 1: Removing Glass From Door
    G04096241Courtesy of SUZUKI OF AMERICA CORP.
