Generalized Testing

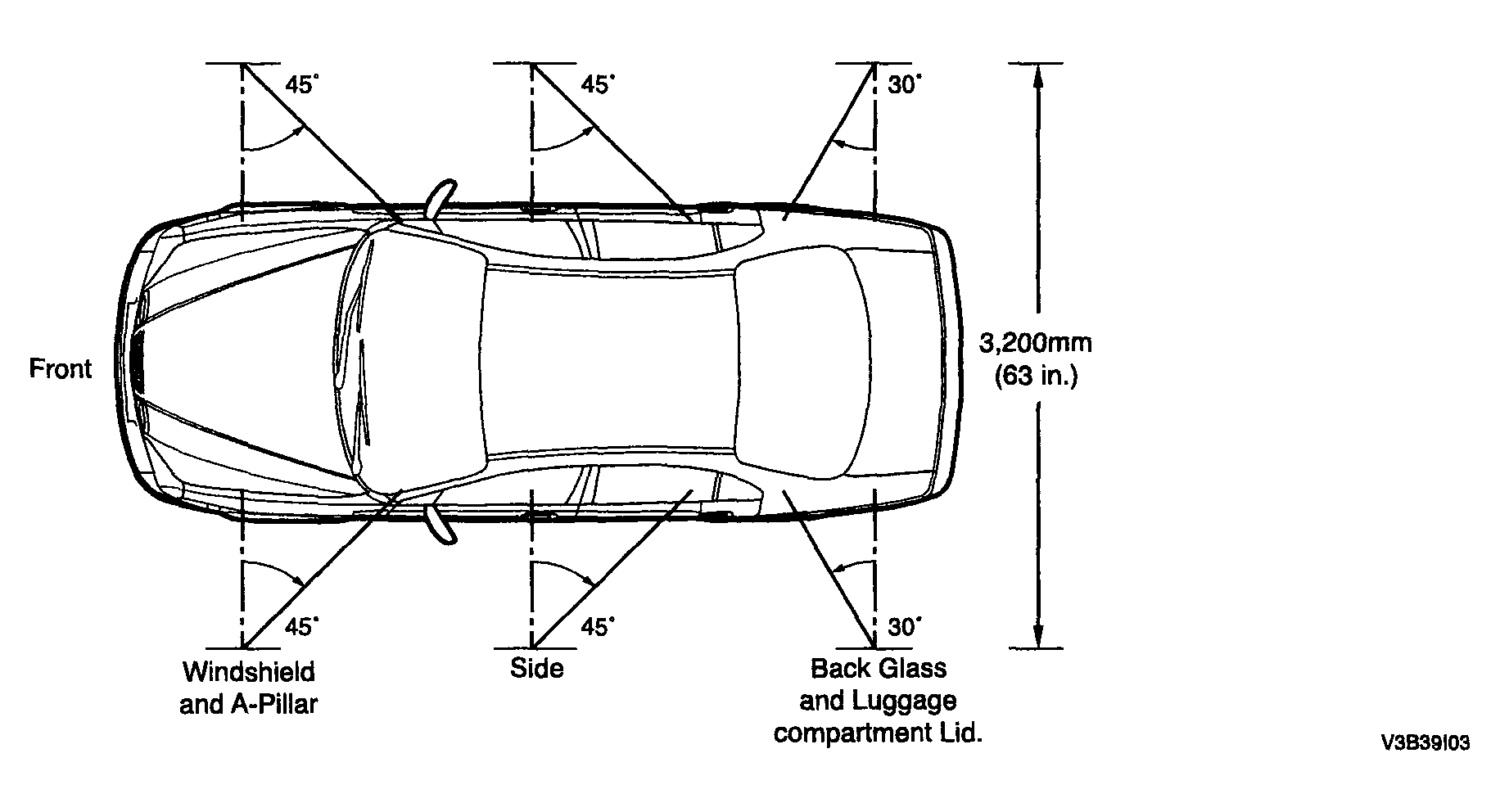

Set up the watertest stands.

Fig 1: Setting Up Watertest Stands
Courtesy of SUZUKI OF AMERICA CORP.

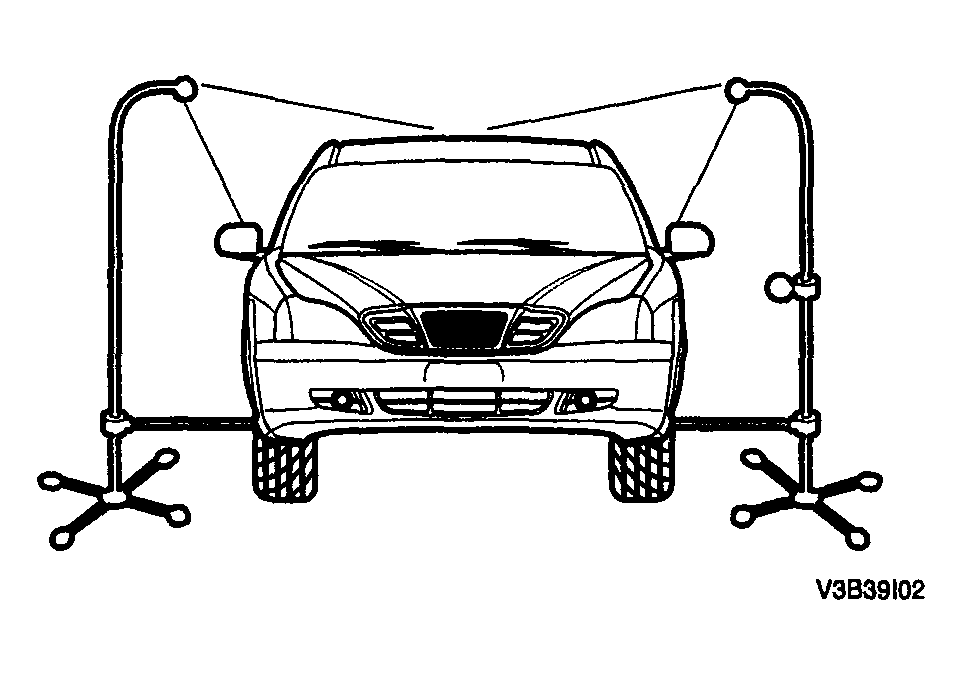

Set up the watertest stand leak test.

Fig 2: Setting Up Watertest Stand Leak Test
Courtesy of SUZUKI OF AMERICA CORP.

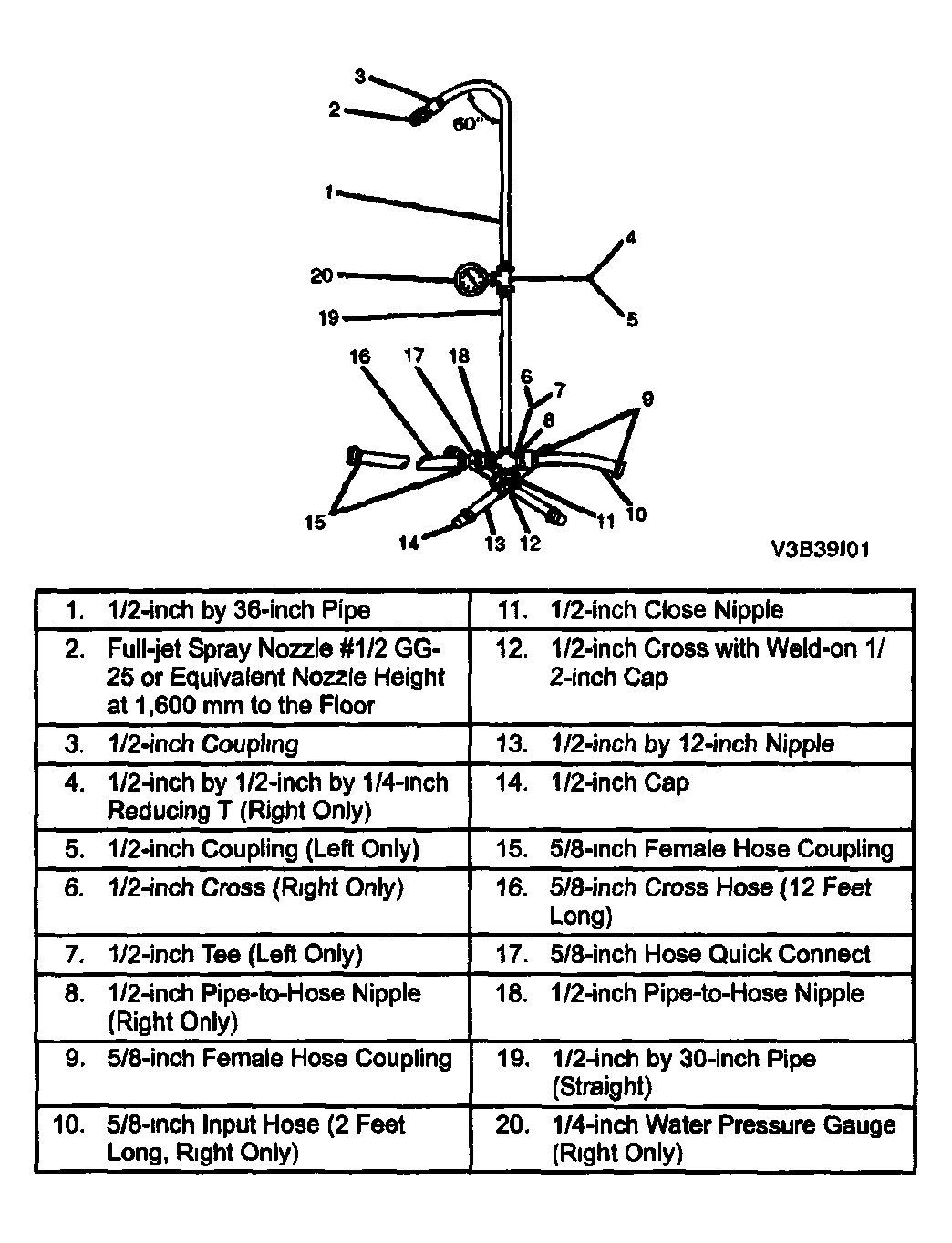

Perform the watertest stand leak test. Refer to "WATERTEST STAND SPECIFICATIONS ".
If the local water pressure does not allow the required water pressure of 155 kPa (22.5 psi), move both stands closer to the vehicle so that the water spray overlaps.

Fig 3: Water Pressure Specifications
Courtesy of SUZUKI OF AMERICA CORP.
