Component Location: Undercoating

NOTE:

Coating thickness: 0.5 mm
Hatching indicates PVC coating areas.
Follow the below figure for paint repair or refinishing.
Do not apply the part mounting areas and holes.

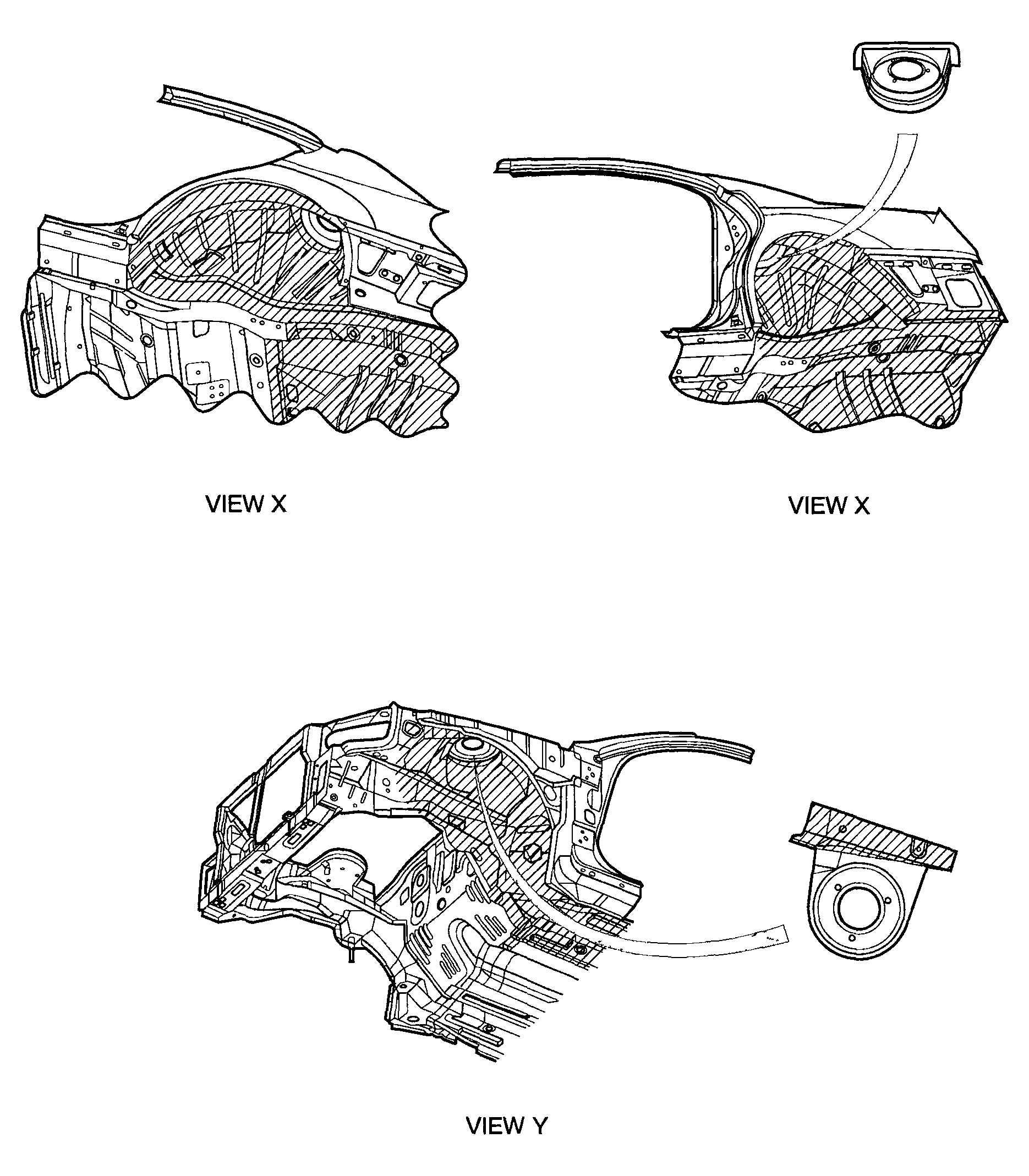

Fig 1: Identifying Undercoating Area Covering Location (1 Of 2)
Courtesy of SUZUKI OF AMERICA CORP.

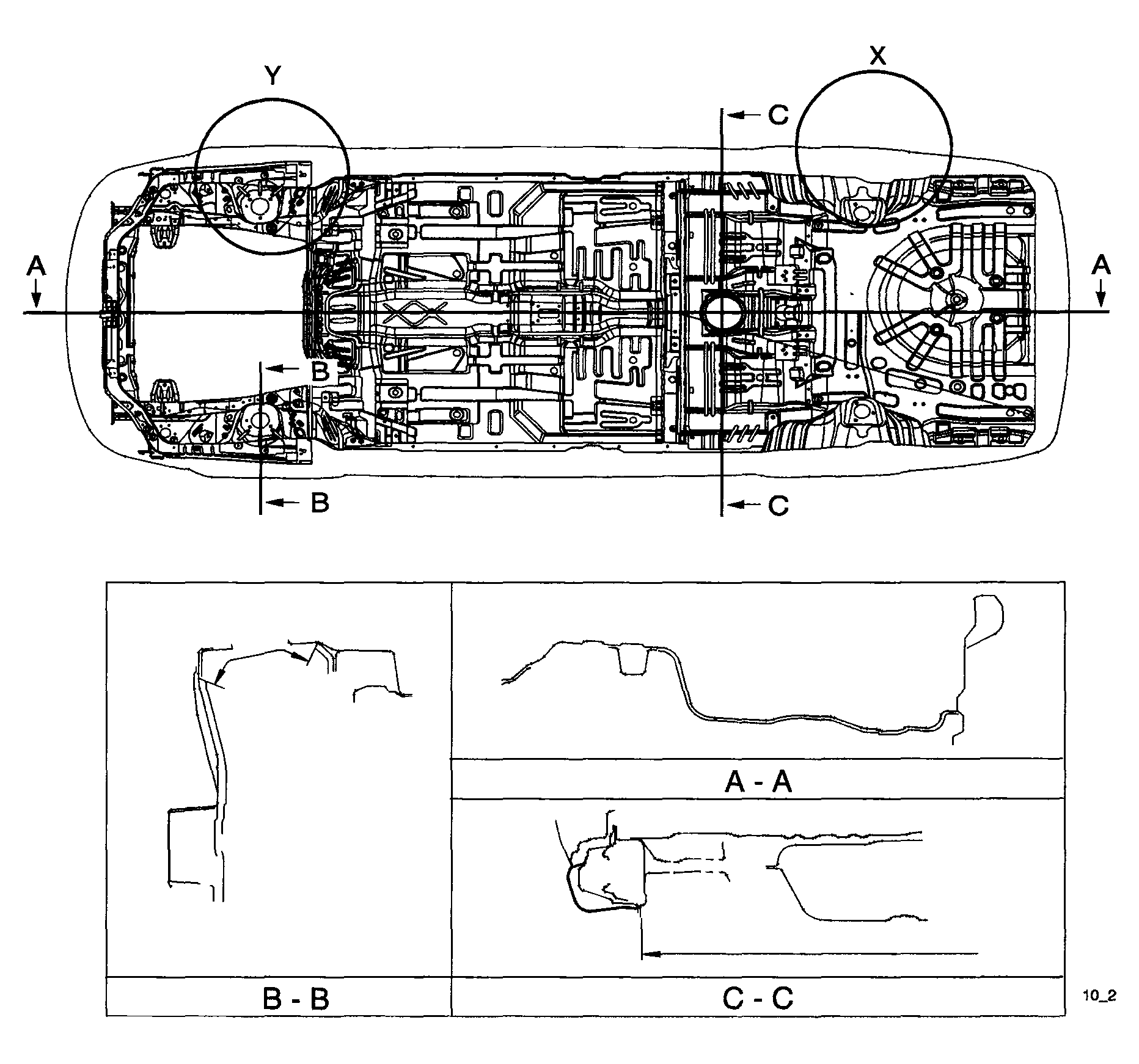

Fig 2: Identifying Undercoating Area Covering Location (2 Of 2)

Courtesy of SUZUKI OF AMERICA CORP.
